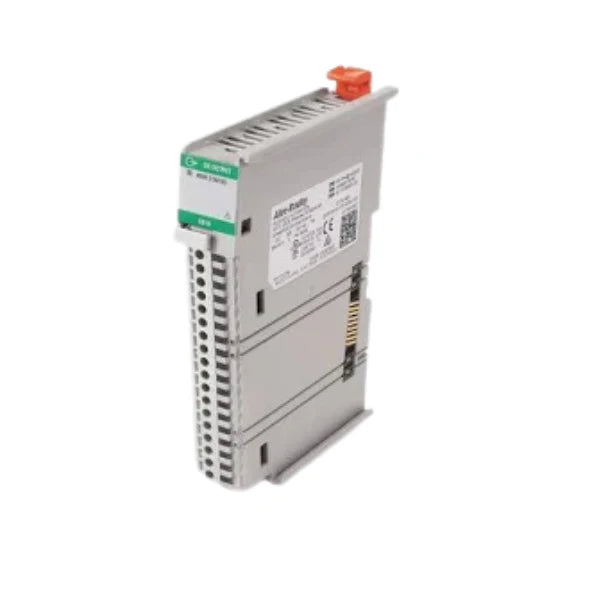

Allen-Bradley 5069-OB16F

Overview

The Allen-Bradley 5069-OB16F is a high-performance 16-channel digital sourcing output module from the cutting-edge Compact 5000 I/O series. Engineered for precision and speed, this module is an indispensable component for modern industrial automation systems demanding accurate timing and reliable control. Operating at a nominal 24V DC, the 5069-OB16F integrates seamlessly into complex applications, offering advanced functionalities like time-scheduled output control, which is critical for sequencing operations where every millisecond counts.

Designed to deliver exceptional performance in demanding environments, this Allen-Bradley 16-point output module ensures that your machinery and processes operate with optimal efficiency and reduced downtime. Its robust construction and adherence to industry standards make it a trustworthy solution for various high-speed control tasks, from packaging to material handling. Integrate the 5069-OB16F into your CompactLogix or ControlLogix system for unparalleled control and responsiveness.

Key Features

• 16 High-Speed Sourcing Outputs: Provides ample connectivity for multiple devices and precise control over various industrial equipment.
• 24V DC Operation: Compatible with standard industrial power supplies, ensuring easy integration into existing systems.
• Time-Scheduled Output Control: Enables precise timing operations, crucial for intricate sequencing and synchronization in automated processes.
• 0.5 A Current Per Channel: Delivers sufficient power for a wide range of actuators and indicators, with a total module output capability of 8 A.
• Rapid Response Time: Engineered for fast switching capabilities, making it ideal for applications requiring quick and decisive control actions.
• Compact 22 mm Width: Facilitates high-density installation, maximizing panel space efficiency and reducing overall system footprint.
• Robust Industrial Design: Built to withstand harsh industrial environments, ensuring long-term reliability and consistent performance.

Technical Specifications

• Module Type: Digital output
• Number of Outputs: 16 sourcing outputs
• Output Voltage Range: 10–32V DC
• Output Current: 0.5 A per channel
• Total Module Current: Not to exceed 8 A
• Voltage Type: DC
• Output Type: Transistor
• Response Time: Fast switching capabilities
• Advanced Functions: Time-scheduled output control
• Dimensions (H x W x D): 144.57 mm x 22 mm x 105.42 mm
• Operating Temperature: 0°C to +60°C
• Storage Temperature: -40°C to +85°C
• Humidity: Up to 95% non-condensing
• Certifications: c-UL-us Listed, CE Marked

Applications

• High-Speed Machinery Control: Excellently suited for managing actuators, solenoids, and other devices where rapid response and precise timing are paramount.
• Automated Packaging Systems: Ensures accurate synchronization for sorting, filling, sealing, and labeling operations, minimizing errors and maximizing throughput.
• Material Handling and Robotics: Seamlessly coordinates conveyor systems, robotic arms, and pick-and-place mechanisms with reliable and timely output control.
• Discrete Manufacturing Processes: Manages complex sequences in assembly lines and fabrication, enhancing precision and repeatability.
• Industrial Test and Measurement: Provides quick and accurate control for precise activation of test fixtures and instrumentation.
• Process Automation: Integrates into various process control environments where discrete output commands are critical for sequential operations.

Why Choose the Allen-Bradley 5069-OB16F?

• Unmatched Precision and Control: Leverage time-scheduled output control for highly accurate event sequencing and superior operational synchronization.
• Exceptional Performance in Demand: Experience fast response times that meet the rigorous demands of high-speed industrial applications, reducing latency and improving system efficiency.
• Optimized Space Efficiency: The slim 22 mm width of the module allows for a greater number of modules within limited panel space, supporting compact and scalable system designs.
• Built-in Reliability for Industrial Environments: Designed with robust construction and certified for industrial use (c-UL-us, CE Marked), ensuring dependable operation and longevity even in challenging conditions.
• Seamless Integration: As part of the Compact 5000 I/O series, it offers effortless integration with Allen-Bradley CompactLogix and ControlLogix systems, streamlining your automation architecture.
• Future-Proof Your Automation: Invest in a module that offers advanced features and robust performance, providing a solid foundation for evolving industrial automation needs.

Order Now

Elevate your industrial control system's capabilities with the Allen-Bradley 5069-OB16F Compact 5000 I/O 16-point fast 24V DC output module. Achieve enhanced precision, efficiency, and reliability in your most critical automation applications. Experience the difference that high-quality, high-speed control can make.

Fast shipping and worldwide delivery options are available to get your system up and running without delay. Explore our complete range of CompactLogix Controllers to discover all compatible models and specifications, or visit our main Allen-Bradley Industrial Automation Products category for a comprehensive selection of controllers, drives, motors, HMIs, and accessories.
