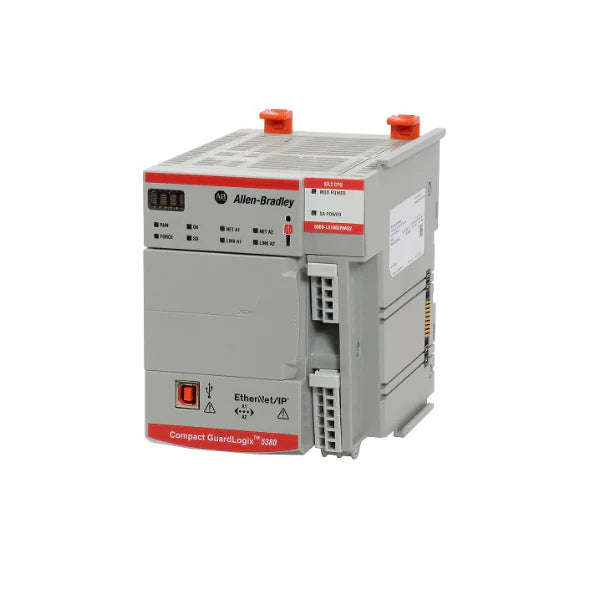

Allen-Bradley 5069-L330ERS2

Overview

The Allen-Bradley 5069-L330ERS2 Compact GuardLogix 5380 safety controller provides robust and reliable performance for mid-range safety applications. Engineered for environments demanding Safety Integrity Level (SIL) 2 and Performance Level (PL) d compliance, this controller integrates seamlessly into diverse industrial automation systems. It features a generous 3 MB of standard user memory and 1.5 MB of dedicated safety memory, ensuring ample capacity for complex control logic. With support for up to 60 EtherNet/IP nodes and 31 local I/O modules, the 5069-L330ERS2 offers exceptional scalability and flexibility, making it an ideal choice for modern safety-critical operations.

Key Features

• Integrated Safety Compliance: Certified for SIL 2 and PL d, ensuring adherence to rigorous international safety standards.
• Generous Memory Allocation: Equipped with 3 MB of standard user memory and 1.5 MB of safety memory to handle sophisticated control programs.
• Extensive Network Connectivity: Supports up to 60 EtherNet/IP nodes, facilitating broad integration within your existing network infrastructure.
• High Local I/O Capacity: Accommodates up to 31 local I/O modules for comprehensive control over various field devices.
• Dual Gigabit Ethernet Ports: Features two integrated 1 Gbps Ethernet ports for high-speed, reliable communication and enhanced data throughput.
• Convenient USB Port: Includes one USB 2.0 port, simplifying programming, configuration, and diagnostic tasks.
• Space-Saving Design: Designed for efficient DIN rail mounting, optimizing panel space in industrial enclosures.

Technical Specifications

• Catalog Number: 5069-L330ERS2
• Standard User Memory: 3 MB
• Safety Memory: 1.5 MB
• Maximum EtherNet/IP Nodes: 60
• Maximum Local I/O Modules: 31
• Communication Ports: 2 x 1 Gbps Ethernet, 1 x USB 2.0
• Power Supply Voltage: 18–32V DC
• Power Consumption: 12W max
• Dimensions (H x W x D): 143.97 mm x 98.10 mm x 136.81 mm
• Weight: Approximately 0.768 kg (1.693 lb)
• Operating Temperature: -20°C to +60°C
• Certifications: UL, CE, ATEX, IECEx, KC, RCM, CCC

Applications

• Safety-Critical Manufacturing Processes: Ensures the safe operation of machinery and processes in industries such as automotive, food and beverage, and pharmaceuticals.
• Packaging Machinery with Integrated Safety: Provides reliable control for high-speed packaging lines, protecting personnel and equipment.
• Material Handling Systems: Enhances the safety of automated guided vehicles (AGVs), conveyors, and robotic handling systems.
• Robotics and Motion Control Systems: Critical for safeguarding operations involving industrial robots and complex motion control applications.
• Process Control Requiring SIL 2 Compliance: Ideal for chemical, oil and gas, and water treatment plants where process safety is paramount.
• Automated Assembly Lines: Guarantees safe interaction between human operators and automated assembly equipment.

Why Choose This Model?

• Unified Control Architecture: Seamlessly combines standard and safety control within a single controller, simplifying system design and reducing complexity.
• Exceptional Performance: Dual 1 Gbps Ethernet ports facilitate lightning-fast communication, minimizing latency and maximizing system responsiveness.
• Future-Proof Scalability: Supports a wide array of EtherNet/IP nodes and local I/O modules, allowing for easy expansion and adaptation to evolving application requirements.
• Optimized Space Utilization: Its compact design and DIN rail mounting capability contribute to significant space savings within control panels.
• Streamlined Development: Fully compatible with Studio 5000 Logix Designer software, offering an intuitive and efficient programming environment for rapid deployment.
• Global Compliance: Boasts a comprehensive list of international certifications, ensuring its suitability for worldwide deployment and regulatory adherence.

Order Now

The Allen-Bradley 5069-L330ERS2 Compact GuardLogix 5380 safety controller is an essential component for any advanced safety system. Ready to ship, this controller will empower your operations with unparalleled safety, performance, and flexibility. Enhance your industrial automation today.
