Allen-Bradley 5069-IY4

Overview

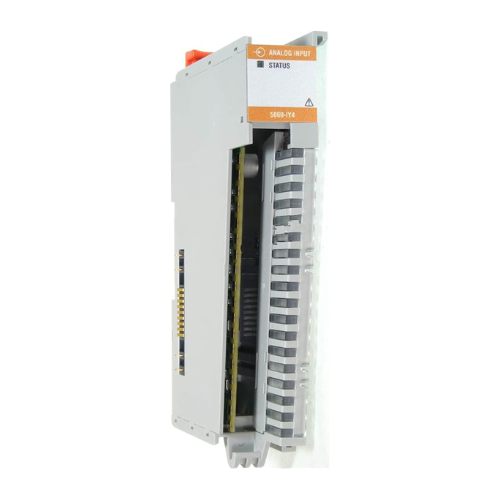

The Allen-Bradley 5069-IY4 is a cutting-edge universal analog input module engineered for seamless integration into the 5069 Compact I/O platform. Designed for maximum flexibility and efficiency, this module boasts four individually configurable channels, accommodating a wide spectrum of analog input types including voltage, current, RTD, and thermocouple signals. This unparalleled versatility significantly reduces the overall module count required for your system and streamlines panel design, making it an ideal solution for complex applications that demand mixed-signal acquisition.

Operators can rely on the 5069-IY4 for superior performance, characterized by its high-resolution measurement capabilities, integrated cold junction compensation for precise temperature readings, and robust built-in diagnostics. These features collectively ensure reliable and accurate data acquisition, making the 5069-IY4 an indispensable component for critical applications such as meticulous temperature monitoring, sophisticated process control, and the most demanding industrial automation environments.

Key Features

• 4 Universal Input Channels: Each channel is independently configurable to accept voltage, current, RTD, or thermocouple inputs, offering exceptional adaptability.
• Comprehensive Signal Support: Compatible with a broad range of signal types, including Voltage (±10V, 0–10V, 0–5V), Current (0–20 mA, 4–20 mA), various Thermocouple types (J, K, T, E, R, S, B, N, C), and RTD types (Pt100, Pt1000, Ni100, Cu10).
• High Accuracy & Resolution: Delivers precise data with up to 16-bit resolution, ensuring reliable measurements for critical applications.
• Integrated Cold Junction Compensation (CJC): Features built-in CJC sensors specifically for accurate thermocouple temperature compensation.
• Advanced Diagnostics: Includes open circuit, over-range, and under-range diagnostics to facilitate system troubleshooting and ensure operational integrity.
• Compact Design & DIN Rail Mountable: Optimized for space efficiency and easy installation within 5069 CompactLogix systems, simplifying panel layouts.
• Enhanced System Integration: Fully compatible with Logix-based control systems, enabling seamless communication and control for streamlined automation workflows.

Technical Specifications

The Allen-Bradley 5069-IY4 is engineered to meet the stringent demands of industrial applications. Below are its detailed technical specifications:

• Catalog Number: 5069-IY4
• Series: 5069 Compact I/O
• Channels: 4 universal analog inputs
• Resolution: 16-bit
• Input Ranges:

  • Voltage: ±10V, 0–10V, 0–5V
  • Current: 0–20mA, 4–20mA
• Temperature Inputs: RTD and Thermocouple types J, K, T, E, R, S, B, N, C
• Cold Junction Compensation: Integrated
• Isolation: Channel-to-channel
• Mounting: DIN rail
• Operating Temperature: 0°C to +60°C
• Weight: Approximately 250 g

Applications

The versatility and robust design of the Allen-Bradley 5069-IY4 make it suitable for a wide array of industrial applications:

• Advanced Process Automation: Efficiently handles mixed-signal input within a single, compact module, simplifying complex process control systems.
• Precision Temperature Monitoring: Provides highly accurate RTD and thermocouple input for critical temperature measurement and control in various industrial processes.
• OEM & Machine Control Solutions: Reduces wiring complexity and I/O footprint in original equipment manufacturer designs and specialized machine control applications.
• Environmental and Climatic Control: Ideal for systems requiring precise monitoring of environmental parameters, leveraging its broad sensor compatibility.
• Test and Measurement Systems: Offers reliable and accurate data acquisition for diverse testing and measurement setups.
• Energy Management Systems: Contributes to efficient energy monitoring by accurately reading various analog signals from power and utility systems.

Why Choose the 5069-IY4?

• Unmatched Versatility: Eliminates the need for multiple, specialized I/O cards by providing true universal input capabilities, saving space and reducing inventory.
• Streamlined Design & Installation: Its compact form factor and DIN rail mountability, coupled with advanced diagnostics, ensure a simplified and robust system setup.
• Seamless Logix Integration: Enjoy effortless integration with existing Logix-based control systems, enhancing overall control system performance and data synchronization.
• High Reliability & Accuracy: Benefit from 16-bit resolution and integrated cold junction compensation, guaranteeing precise and dependable data for critical operations.
• Reduced Operational Costs: Optimize your investment through reduced hardware complexity, simplified maintenance, and efficient problem diagnosis.
• Global Availability & Support: Allen-Bradley’s worldwide network ensures product availability, prompt delivery, and expert technical support for your peace of mind.

Order Now

The Allen-Bradley 5069-IY4 universal analog input module is currently in stock and ready for fast, global delivery. Enhance your analog signal acquisition capabilities and streamline your industrial automation processes with this essential Compact I/O module. Elevate your control system's performance and efficiency today!
