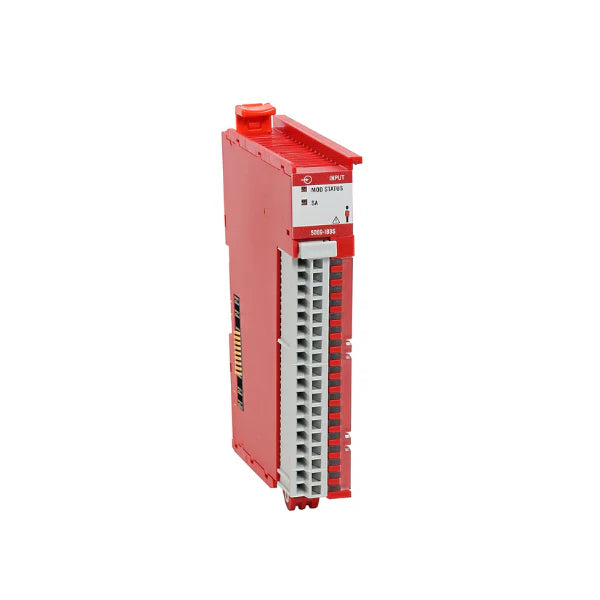

Allen-Bradley - 5069-IB8S

Overview

The Allen-Bradley 5069-IB8S is a high-performance Digital Input Module meticulously engineered for seamless integration into CompactLogix 5000 and Compact GuardLogix 5000 systems. Providing eight discrete input points, this module empowers industrial automation professionals with an exceptionally efficient and robust solution for real-time monitoring of digital signals. Its compact design belies its powerful capabilities, making it an indispensable component in applications where space optimization and rapid, accurate signal acquisition are paramount. Designed for compatibility with a vast array of industrial sensors, the 5069-IB8S ensures precise data capture and immediate responsiveness, crucial for maintaining optimal operational efficiency and control.

Whether you're upgrading an existing system or designing a new one, the 5069-IB8S stands out for its reliability and ease of integration. This module is built to withstand demanding industrial environments, providing consistent performance and peace of mind. Its advanced features extend the capabilities of your automation infrastructure, allowing for more intricate control strategies and enhanced diagnostic insights.

Key Features

• 8 High-Speed Digital Input Points: Offers eight individually isolated channels for versatile and reliable monitoring of discrete digital signals, enhancing system flexibility.
• Ultra-Compact Form Factor: Engineered for space-constrained industrial panels, allowing for higher density installations without compromising on performance or diagnostic capabilities.
• Broad Input Voltage Compatibility: Supports a wide 10-30V DC input voltage range, ensuring seamless integration with diverse industrial sensors and existing control architectures.
• Real-Time Signal Processing: Boasts exceptional processing speed for rapid and accurate signal acquisition, critical for time-sensitive applications and dynamic control systems.
• Seamless Allen-Bradley Integration: Guarantees effortless compatibility and configuration within Allen-Bradley 5069 Compact I/O systems, leveraging Rockwell Automation's integrated architecture.
• Intuitive LED Diagnostics: Equipped with clear LED indicators providing instant visual feedback on input status and module health, simplifying troubleshooting and maintenance.
• Robust Industrial Design: Built to meet the rigorous demands of industrial environments, ensuring long-term reliability and stable operation in challenging conditions.

Technical Specifications

• Model: 5069-IB8S
• I/O Type: Digital Input (Discrete)
• Input Points: 8 (8 digital inputs)
• Voltage Range: 10-30V DC (Positive Logic)
• Input Type: Sinking
• Current Draw: 45 mA at 24V DC (typical)
• Backplane Current Consumption: 40 mA (typical)
• Mounting: 5069 Compact I/O System
• Dimensions (L x W x H): 1.52 x 0.9 x 3.2 inches (38.6 x 22.9 x 81.3 mm)
• Weight: 0.1 kg (0.22 lbs)
• Environmental Rating: IP20
• Operating Temperature: 0°C to 55°C (32°F to 131°F)
• LED Status Indicators: Yes (for input status)

Applications

The 5069-IB8S Digital Input Module is an essential component for enhancing control and monitoring in a wide range of industrial automation scenarios, including:

• Advanced Machine Control Systems: Providing precise input for complex machinery, ensuring accurate sequencing and operational integrity.
• High-Speed Conveyor and Sorting Systems: Enabling rapid detection of product presence, position, and flow for optimized material handling.
• Automated Packaging and Filling Lines: Ensuring accurate sensor input for precise package positioning, filling levels, and sealing processes.
• Robotics and Assembly Automation: Facilitating immediate feedback from end effectors and sensors for highly coordinated robotic movements and assembly tasks.
• Safety Monitoring and Interlock Circuits: Essential for integrating safety devices and emergency stop mechanisms, enhancing overall operational safety.
• Building Management and Environmental Control: Monitoring discrete inputs from sensors in HVAC, access control, and other facility automation systems.

Why Choose This Model?

• Unmatched Reliability: Engineered by Allen-Bradley, a leader in industrial automation, the 5069-IB8S delivers consistent and dependable performance in demanding operational environments.
• Space-Saving Efficiency: Its compact design allows for greater component density within control cabinets, reducing overall footprint and optimizing panel space, which is critical in modern industrial setups.
• Superior Signal Accuracy: With fast processing and robust input circuitry, this module ensures every digital signal is captured accurately and promptly, contributing to precise control and reduced operational errors.
• Seamless Scalability: Easily integrates and expands within existing 5069 Compact I/O systems, offering a flexible solution that can grow with the evolving needs of your automation infrastructure.
• Simplified Integration and Maintenance: Designed for straightforward configuration and features clear LED diagnostics, significantly reducing installation time and ongoing maintenance efforts.
• Future-Proof Your Automation: Investing in the 5069-IB8S ensures your control system is equipped with modern, high-performance technology, ready to meet the challenges of next-generation industrial applications.

Order Now

Elevate your industrial automation capabilities with the Allen-Bradley 5069-IB8S Compact I/O Digital Input Module. Leverage its 8-point, high-speed input functionalities for unparalleled signal monitoring and control precision. Enhance your system's responsiveness, reliability, and overall performance. Secure your 5069-IB8S today and take a significant step towards optimizing your industrial processes.
