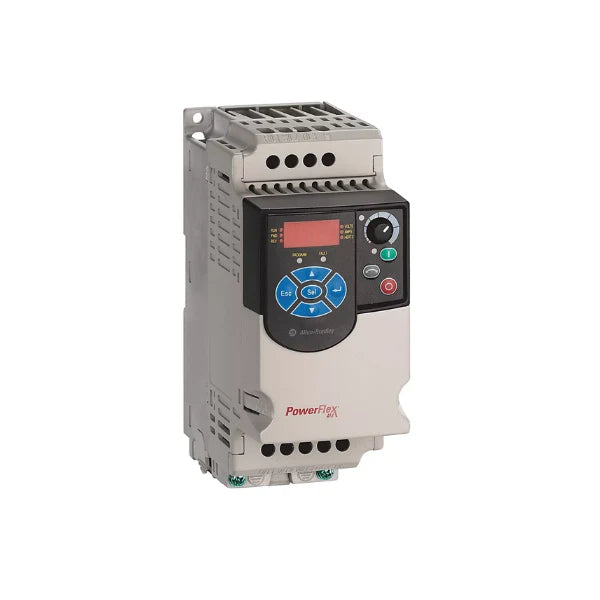

Allen-Bradley 22F-D2P5N103

Overview

Unlock efficient and reliable motor control with the Allen-Bradley 22F-D2P5N103 PowerFlex 4M AC Drive. This compact and cost-effective variable frequency drive (VFD) is engineered for basic motor control applications across various industrial settings. Part of the renowned PowerFlex 4M family, the 22F-D2P5N103 excels in delivering precise control for small motors up to 1 horsepower. Its robust design, coupled with straightforward functionality, makes it an ideal choice for operations requiring dependable performance without unnecessary complexity. Designed for seamless integration, this drive accepts a 480V AC, 3-phase input and provides a consistent 2.5 Amps output, ensuring stable operation for your equipment. The small Frame Size A and IP20 open-type enclosure allow for flexible installation within protective environments, optimizing your space and setup.

The Allen-Bradley 22F-D2P5N103 is not just about performance; it's about providing a streamlined solution for your automation needs. With its integrated LED display and fixed keypad, users can easily monitor basic status information and make quick parameter adjustments, facilitating hassle-free operation and maintenance. This VFD is a testament to Allen-Bradley's commitment to delivering high-quality, practical solutions that enhance productivity and operational efficiency. Whether you're managing conveyors, small pumps, or light-duty material handling, the 22F-D2P5N103 offers the precise control and reliability essential for modern industrial applications.

Key Features

• Compact PowerFlex 4M Series: Delivers cost-effective and reliable AC motor control for a broad range of basic applications.
• 480V AC, 3-Phase Input: Seamlessly compatible with standard industrial three-phase power systems for widespread utility.
• 2.5 Amp Output with 1 HP Rating: Perfectly suited for precise control of small motors up to 1 horsepower (0.75 kW) in light-duty scenarios.
• Space-Saving Frame Size A: Ultra-compact design allows for efficient installation in confined spaces, maximizing panel density.
• IP20 NEMA/Open Type Enclosure: Designed for installation within a protective cabinet or enclosure, ensuring reliable operation in industrial environments.
• Intuitive LED Display & Fixed Keypad: Provides clear basic drive status information and easy parameter adjustments for simplified operation and monitoring.
• Versatile Application Suitability: Ideal for conveyors, small pumps, fans, and various light-duty material handling systems, enhancing operational flexibility.

Technical Specifications

The Allen-Bradley 22F-D2P5N103 PowerFlex 4M AC Drive is built to exact specifications to ensure optimal performance and compatibility:

• Product Type: AC Drive / Variable Frequency Drive (VFD)
• Catalog Number: 22F-D2P5N103
• Series: PowerFlex 4M
• Input Voltage: 480V AC, 3-Phase
• Output Current: 2.5 Amps
• Power Rating: 1 HP (0.75 kW)
• Frame Size: A
• Enclosure: IP20 NEMA/Open Type
• Display: LED
• Keypad: Fixed
• Input Frequency: 47-63 Hz
• Output Frequency: 0-400 Hz

Applications

The Allen-Bradley 22F-D2P5N103 PowerFlex 4M AC Drive is a versatile solution for numerous basic motor control applications, including:

• Conveyor Systems: Providing smooth and controlled starts and stops, reducing mechanical stress and improving product flow.
• Small Pumps and Fans: Optimizing energy consumption and extending equipment life by precisely matching motor speed to application demand.
• Simple Machine Control: Ideal for standalone machines requiring reliable speed adjustment for enhanced process control.
• Light-Duty Material Handling: Ensuring efficient and precise movement of goods in packaging, sorting, and assembly lines.
• Food and Beverage Processing: Offering robust control for basic machinery in environments where reliability is key.
• Textile Machinery: Delivering consistent performance for various processes requiring stable motor operation.

Why Choose This Model?

• Unmatched Reliability: As an Allen-Bradley product, the 22F-D2P5N103 guarantees industrial-grade quality and a long operational lifespan.
• Cost-Effective Performance: Get essential motor control functionalities without overspending, making it an excellent investment for basic applications.
• User-Friendly Interface: The integrated LED display and fixed keypad simplify setup, monitoring, and parameter adjustments, reducing overall commissioning time.
• Space-Efficient Design: Its compact Frame Size A is perfect for installations where panel space is at a premium, offering flexibility in design.
• Enhanced Energy Efficiency: Variable frequency drives help optimize motor speed, leading to significant energy savings and reduced operating costs over time.
• Broad Application Versatility: Suitable for a wide array of basic industrial tasks, offering a flexible solution for diverse motor control needs.

Order Now

Elevate your industrial processes with the Allen-Bradley 22F-D2P5N103 PowerFlex 4M AC Drive. Experience the perfect blend of compactness, efficiency, and reliable motor control for your applications. DD Parts Solution offers fast, reliable shipping, competitive pricing, and expert support to ensure you get the best industrial automation components. Invest in quality and optimize your operations today!
