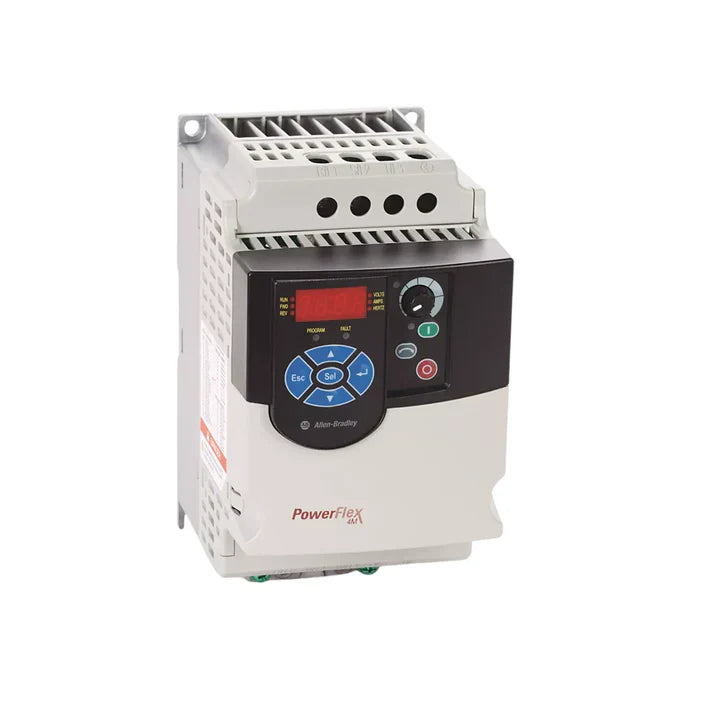

Allen-Bradley 22F-D024N114

Overview

Unleash the full potential of your industrial motor control applications with the Allen-Bradley 22F-D024N114 PowerFlex 4M AC Drive. This compact and cost-effective variable frequency drive (VFD) is engineered to deliver superior performance and energy efficiency for a wide range of machinery. Operating at a robust 480V AC and 3-phase, it provides a substantial 24A output current to power motors up to 11 kW (15 HP). Its versatile design makes it an ideal solution for critical applications such as pumps, fans, conveyors, and various general-purpose motor control tasks.

The 22F-D024N114 model is meticulously crafted for seamless integration and reliable operation within diverse industrial environments. It boasts an IP20 open enclosure for straightforward panel mounting, an intuitive LED display paired with a fixed digital keypad for easy setup and monitoring, and an internal CE-compliant filter that ensures electromagnetic compatibility. Furthermore, its integrated RS485 communication capability facilitates flexible network connectivity, allowing for advanced control and diagnostics. Experience enhanced motor performance, simplified operation, and a truly optimized industrial process with this exceptional Allen-Bradley drive.

Key Features

• High-Performance Power Delivery: Provides 480V AC, 3-Phase power with a 24A output current, capable of driving motors up to 11 kW (15 HP).
• Compact and Space-Saving Design: Frame Size C ensures a small footprint, ideal for installations where space is a premium.
• Intuitive Human-Machine Interface: Features a fixed digital keypad and clear LED display for simplified programming, monitoring, and operational control.
• Integrated RS485 Communication: Enables seamless network integration, offering advanced control options and remote monitoring capabilities.
• Built-In CE-Compliant Filter: Guarantees electromagnetic compatibility (EMC), reducing interference and ensuring reliable operation in sensitive environments.
• Robust IP20 Open-Type Enclosure: Designed for dependable protection within panel-mounted applications, ensuring longevity and consistent performance.
• Enhanced Motor Control with SVC: Sensorless Vector Control (SVC) significantly improves motor performance, offering greater accuracy and energy efficiency across varying loads.

Technical Specifications

• Model: 22F-D024N114
• Series: PowerFlex 4M
• Voltage Input: 480V AC, 3-Phase
• Output Current: 24A
• Motor Power Rating: 11 kW (15 HP)
• Enclosure Rating: IP20 (Open)
• Control Type: V/Hz Control, Sensorless Vector Control (SVC)
• Communication Protocol: RS485
• Filter: Internal CE-Compliant
• Keypad Type: Fixed Digital Keypad with LED Display
• Mounting: Panel Mount
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Frame Size: C

Applications

• Industrial Motor Control: Provides precise speed and torque control for a diverse array of industrial motors, optimizing manufacturing processes.
• Pumps and Fans: Enhances energy efficiency and offers precise control for fluid handling and air movement systems, reducing operational costs.
• Conveyors and Material Handling Systems: Ensures smooth acceleration, deceleration, and consistent speed for efficient product movement and reduced wear.
• HVAC and Ventilation Systems: Optimizes airflow and temperature regulation in commercial and industrial buildings, leading to improved comfort and energy savings.
• General-Purpose Machine Automation: A versatile solution for various automated machinery, offering reliable and adaptable motor control for improved productivity.
• Textile Machinery: Delivers precise speed control for spinning, weaving, and other textile processes, ensuring product quality and efficiency.

Why Choose This Model?

• Optimized Performance and Efficiency: Leverage advanced Sensorless Vector Control (SVC) to achieve superior motor performance and significant energy savings, translating to lower operating costs.
• Simplified Integration and Operation: The user-friendly interface, fixed digital keypad, and integrated RS485 communication make installation, setup, and ongoing operation remarkably straightforward.
• Reliable and Compliant Solution: Benefit from the built-in CE-compliant filter, ensuring electromagnetic compatibility and robust performance in environments requiring adherence to international standards.
• Space-Saving Design for Modern Industrial Setups: Its compact Frame Size C design allows for flexible installation in control panels where space is often limited, without compromising on power or functionality.
• Versatility for Diverse Applications: From general-purpose motor control to specialized tasks in pumps, fans, and conveyors, this drive offers a highly adaptable solution for improving the efficiency of multiple systems.
• Allen-Bradley Quality and Support: Invest in the trusted reliability and renowned engineering excellence of Allen-Bradley, backed by comprehensive support and a reputation for durable industrial solutions.
