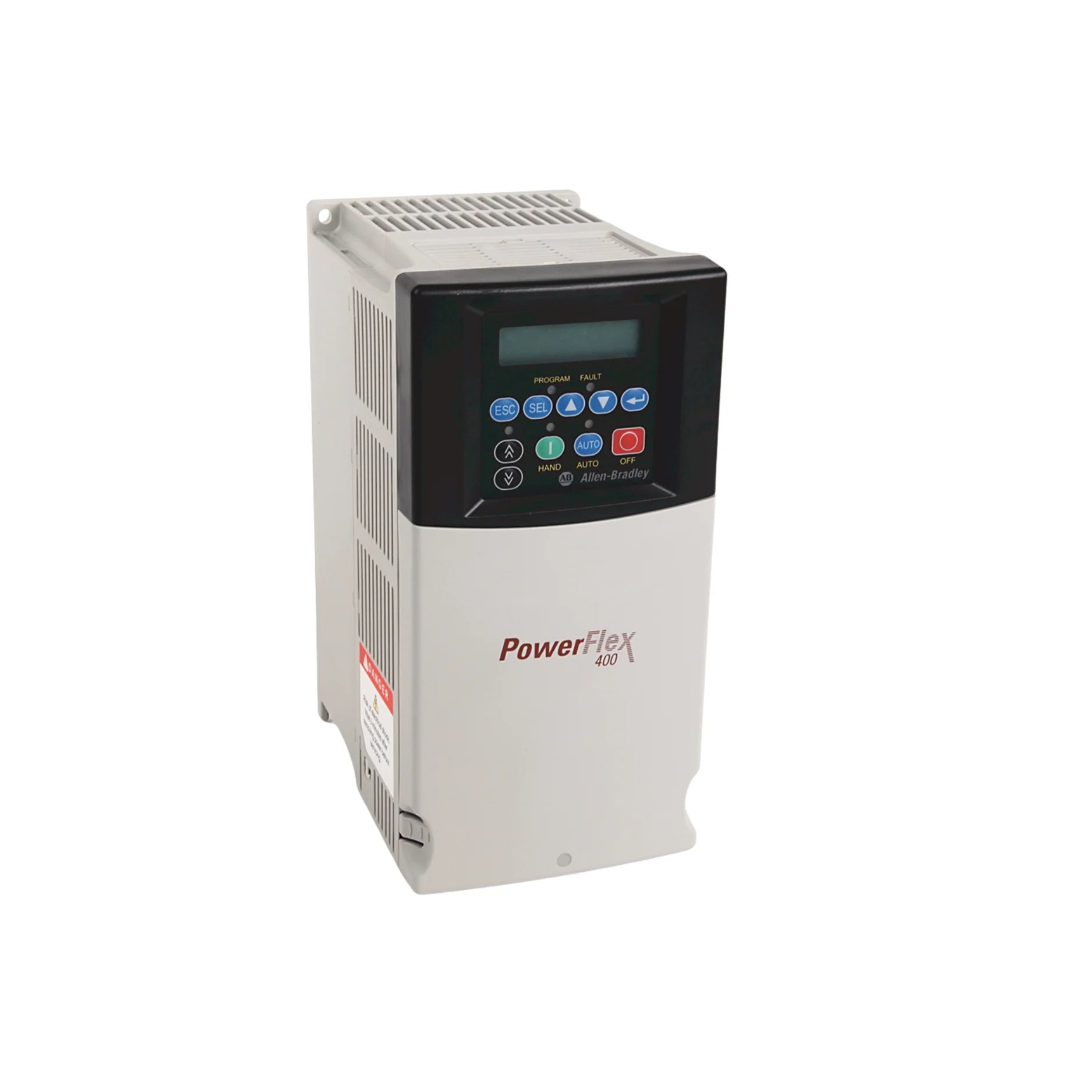

Allen-Bradley 22C-D6P0N103

Overview

The Allen-Bradley 22C-D6P0N103 PowerFlex 400 is an advanced AC drive specifically engineered to deliver energy-efficient and precise control for a wide array of fan and pump applications. This high-performance drive operates seamlessly at 480V AC, 3-phase, supplying a robust 6A current rating to power 3 HP motors. Designed for optimal regulation, the PowerFlex 400 significantly enhances operational efficiency in critical systems. Its IP20 (open) enclosure, coupled with a fixed keypad and integrated RS485 communication, ensures straightforward installation and seamless integration into complex industrial environments. Whether for HVAC, water treatment, or sophisticated process control systems, the 22C-D6P0N103 offers a reliable and intelligent solution for motor management, ensuring consistent performance and reduced energy consumption across diverse industrial sectors.

Key Features

• Optimized Fan & Pump Control: Specifically designed for energy efficiency, reducing operational costs in HVAC and process applications.
• Robust Power & Voltage: Operates at 480V AC, 3-Phase, with a 3 HP motor capacity and 6A current rating, ensuring stable and powerful industrial motor compatibility.
• Compact & Space-Efficient Design: Frame Size C and an IP20 (open) enclosure make it ideal for control cabinet mounting, maximizing panel space.
• Integrated User Interface: Features a fixed keypad for simplified operation, monitoring, and quick adjustments.
• Seamless Communication: Built-in RS485 communication enables effortless integration with existing automation networks and control systems.
• Reliable & Standard Applications: Designed without a Brake IGBT, making it perfectly suited for standard motor applications where braking control is not a primary requirement.
• Industrial Durability: Engineered for demanding industrial environments, providing long-lasting performance and reliability.

Technical Specifications

• Model: 22C-D6P0N103
• Series: PowerFlex 400
• Voltage Rating: 480V AC, 3-Phase
• Current Rating: 6A
• Motor Power: 3 HP
• Frame Size: C
• Enclosure Type: IP20 (Open)
• Control Interface: Fixed Keypad
• Communication: RS485
• Brake IGBT: No (Without Brake IGBT)
• Application Type: Fan & Pump Motor Control
• Certifications: UL, CE, RoHS

Applications

• HVAC Systems: Provides precise and energy-efficient control for fans and blowers in commercial and industrial heating, ventilation, and air conditioning setups.
• Water & Wastewater Treatment: Ensures efficient and reliable pump operation, contributing to optimized fluid management and delivery systems.
• Process Control & Industrial Automation: Regulates fluid and air movement in various manufacturing and processing environments, enhancing overall operational consistency.
• Cooling Towers & Ventilation Systems: Maintains energy-efficient motor performance for critical cooling and air circulation infrastructures.
• Agricultural Pumping: Ideal for irrigation systems and other agricultural applications requiring consistent pump control.
• Material Handling: Can be integrated into systems requiring controlled fan or pump actions for conveying and processing materials.

Why Choose This Model?

• Superior Energy Efficiency: Optimized design for fan and pump loads significantly reduces energy consumption and operational costs.
• Enhanced System Integration: RS485 communication simplifies connectivity with existing industrial automation networks, ensuring quick setup and control.
• Reliable Performance: Built with Allen-Bradley's renowned quality, ensuring dependable and consistent operation in demanding industrial environments.
• Simplified Operation: The fixed keypad provides a user-friendly interface for easy configuration, monitoring, and troubleshooting.
• Compact & Versatile Design: Its small footprint (Frame C) and IP20 rating allow for flexible mounting within control cabinets, saving valuable space.
• Cost-Effective Solution: Offers a high-performance solution for fan and pump control without unnecessary features, providing excellent value for targeted applications.

Order Now

Elevate your industrial fan and pump control with the Allen-Bradley 22C-D6P0N103 PowerFlex 400 AC Drive. Experience superior energy efficiency, seamless integration, and unparalleled reliability for your critical applications. Fast shipping and worldwide delivery options are available to ensure you receive your essential components quickly and efficiently.
