Allen-Bradley 22C-D142A103

Overview

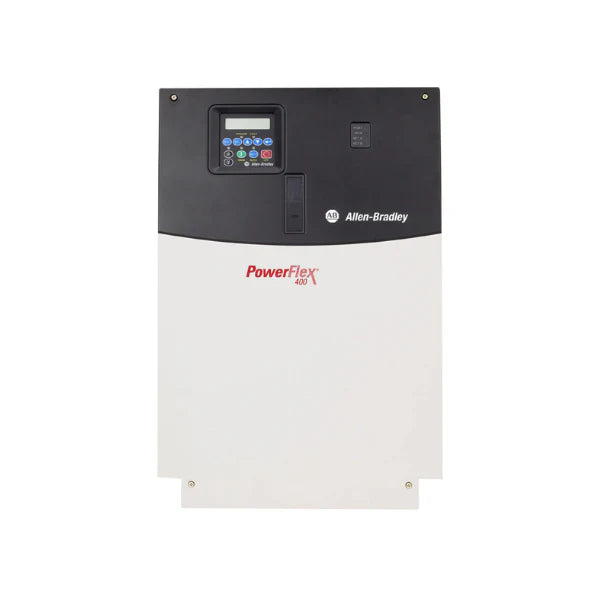

The Allen-Bradley 22C-D142A103 PowerFlex 400 AC Drive is an exceptionally robust and precise solution for controlling critical fan and pump applications in demanding industrial environments. Engineered for high performance, this drive operates on a 480V AC, 3-phase input, delivering an impressive 142 Amps to power heavy-duty motors. With a substantial power rating of up to 75 kW (100 HP), it ensures efficient and reliable operation for a wide array of systems, from complex HVAC infrastructure to essential water treatment facilities and general manufacturing processes.

Designed with practicality in mind, the 22C-D142A103 features Frame Size E, offering extensive compatibility and ease of integration into diverse system configurations. Its IP30 (NEMA 1 / UL Type 1) protection rating guarantees durability and resilience against common industrial contaminants like dust and debris. The inclusion of a fixed keypad streamlines setup and operation, while RS485 communication capability allows for seamless integration into existing automation networks, enabling effortless monitoring and control. This model provides an economical advantage by excluding a brake IGBT, making it a highly cost-effective choice for applications where braking functionality is not required, without compromising on performance or reliability.

Key Features

• High-Power 480V AC, 3-Phase Input: Provides stable and efficient power delivery for the most demanding high-power motor applications.
• Robust 142 Amps Output: Ensures powerful and consistent performance for heavy-duty fan and pump operations, maintaining optimal system efficiency.
• Exceptional 75 kW (100 HP) Power Rating: Designed to effortlessly manage high power loads, making it ideal for large-scale industrial systems.
• Flexible Frame Size E: Offers broad compatibility and simplifies integration into diverse industrial setups and existing infrastructure.
• Durable IP30 (NEMA 1 / UL Type 1) Protection: Guarantees reliable operation and longevity in challenging industrial environments by resisting dust and debris.
• Integrated RS485 Communication: Facilitates seamless integration with various control networks, enabling advanced monitoring and simplified system management.
• Cost-Optimized Design (No Brake IGBT): Provides a highly economical solution for fan and pump applications that do not require braking, reducing overall system costs.

Technical Specifications

• Model: 22C-D142A103
• Input Voltage: 480V AC, 3-Phase
• Current Rating: 142 Amps
• Power Rating: 75 kW (100 HP)
• Frame Size: E
• Protection: IP30 (NEMA 1 / UL Type 1)
• Keypad Type: Fixed Keypad
• Communication: RS485
• Included Features: Without Brake IGBT
• Environmental Conditions: Suitable for indoor use in industrial environments
• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Dimensions: 486mm x 361mm x 217mm (19.14" x 14.21" x 8.54")
• Weight: 28.5 kg (62.83 lbs)

Applications

• Advanced HVAC Systems: Precisely controls ventilation fans, pumps, and other critical HVAC components, optimizing climate management and energy consumption.
• Efficient Water Treatment Facilities: Provides reliable and consistent control for pumps in both water and wastewater treatment plants, ensuring operational continuity.
• Industrial Automation & Manufacturing: Enhances productivity and process control in large-scale industrial operations, leading to improved output and reduced downtime.
• Agricultural Pumping Systems: Ideal for controlling irrigation pumps and other fluid transfer applications in agricultural settings, ensuring efficient water distribution.
• Commercial Building Management: Supports various building services requiring robust fan and pump control, contributing to overall operational efficiency and comfort.

Why Choose the Allen-Bradley 22C-D142A103 PowerFlex 400?

• Unmatched Reliability: Built with Allen-Bradley's renowned quality, ensuring long-term stable operation and minimal downtime in critical applications.
• Optimized Energy Efficiency: Advanced motor control capabilities significantly reduce energy consumption, translating into substantial operational cost savings over time.
• Seamless System Integration: Equipped with RS485 communication, this drive integrates effortlessly into existing automation systems, simplifying network management and data exchange.
• Exceptional Performance for Demanding Loads: With its high power output of 75 kW (100 HP) and 142 Amps, it handles the most challenging fan and pump applications with ease and precision.
• Designed for Industrial Durability: The IP30 (NEMA 1 / UL Type 1) protection ensures the drive withstands harsh industrial conditions, extending its lifespan and reducing maintenance needs.
• Cost-Effective without Compromise: By offering a solution without a brake IGBT, it provides a highly efficient and economical alternative for applications where this feature is not essential, without sacrificing core performance.

Order Now

Elevate your industrial fan and pump applications with the superior performance and reliability of the Allen-Bradley 22C-D142A103 PowerFlex 400 AC Drive. Contact us today to learn more about how this advanced drive can optimize your operations and contribute to significant cost savings and increased efficiency. Our experts are ready to assist you in configuring the perfect solution for your specific needs.
