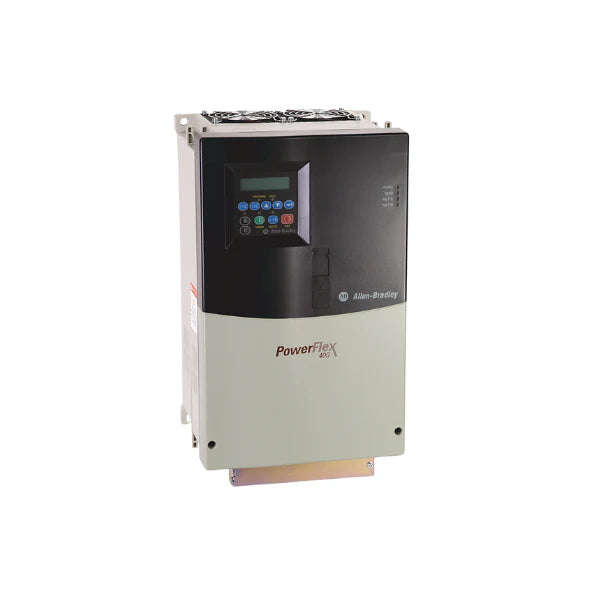

Allen-Bradley 22C-D105A103

Overview

Unleash optimal performance and energy efficiency in your industrial fan and pump applications with the Allen-Bradley 22C-D105A103 PowerFlex 400 AC Drive. This robust 75 HP (55 kW) variable frequency drive is meticulously engineered to provide precise control for 480V AC, three-phase systems, making it an indispensable component for HVAC, pumping stations, and large ventilation systems. Its intelligent design incorporates advanced features like PID control and a dedicated fire mode, ensuring reliable operation and significant energy savings comparable to competitors such as Siemens, ABB, and Schneider Electric.

The PowerFlex 400 series is renowned for its application-specific functionalities and exceptional motor control capabilities. The 22C-D105A103 model, with its IP30 (NEMA 1 / UL Type 1) enclosure, is built for indoor panel mounting, offering durability and protection. Experience enhanced system performance, reduced operational costs, and simplified integration, all backed by the trusted quality of Allen-Bradley.

Key Features

• 75 HP (55 kW) Power Rating: Ideally suited for demanding large-scale fan and pump applications.
• 480V AC, 3-Phase Input: Seamless compatibility with standard industrial power grids.
• 105 Amp Output Current: Delivers ample power for efficient motor operation.
• Optimized for Variable Torque: Advanced algorithms ensure peak efficiency for fan and pump loads.
• Integrated PID Control: Enables precise regulation of critical process variables like pressure and flow.
• Dedicated Fire Mode: Provides continuous, fault-tolerant operation during emergency scenarios.
• IP30 (NEMA 1 / UL Type 1) Enclosure: Designed for secure and reliable indoor panel mounting.

Technical Specifications

• Catalog Number: 22C-D105A103
• Input Voltage: 380-480V AC, 3-Phase, 50/60 Hz
• Output Voltage: 0-460V AC, 3-Phase
• Output Current: 105 Amps
• Power Rating: 75 HP (55 kW)
• Frame Size: E
• Enclosure: IP30 (NEMA 1 / UL Type 1)
• Communication: RS-485
• Input Frequency: 50/60 Hz

Applications

• HVAC (Heating, Ventilation, and Air Conditioning) systems for commercial and industrial buildings.
• Pumping stations for water treatment, wastewater, and industrial fluid transfer.
• Large-scale ventilation systems in manufacturing plants, mines, and tunnels.
• Compressors and other variable torque machinery requiring precise motor control.

Why Choose This Model?

• Superior Energy Efficiency: Dramatically reduce energy consumption due to optimized control algorithms for variable torque loads.
• Enhanced System Reliability: Benefit from robust construction and application-specific features that extend equipment lifespan.
• Precise Process Control: Achieve consistent and accurate control of pressure, flow, and other critical parameters.
• Seamless Integration: RS-485 communication simplifies network integration into existing control systems like those using Modbus RTU.
• Proven Allen-Bradley Quality: Invest in a globally trusted brand known for its reliability and industrial performance.

Order Now

Don't compromise on performance or efficiency. The Allen-Bradley 22C-D105A103 PowerFlex 400 AC Drive is in stock at DD Parts Solution and ready for immediate shipment. Upgrade your operations today and experience the difference of a high-quality, application-specific drive. Contact us for competitive pricing and expert support to ensure the perfect fit for your industrial needs.
