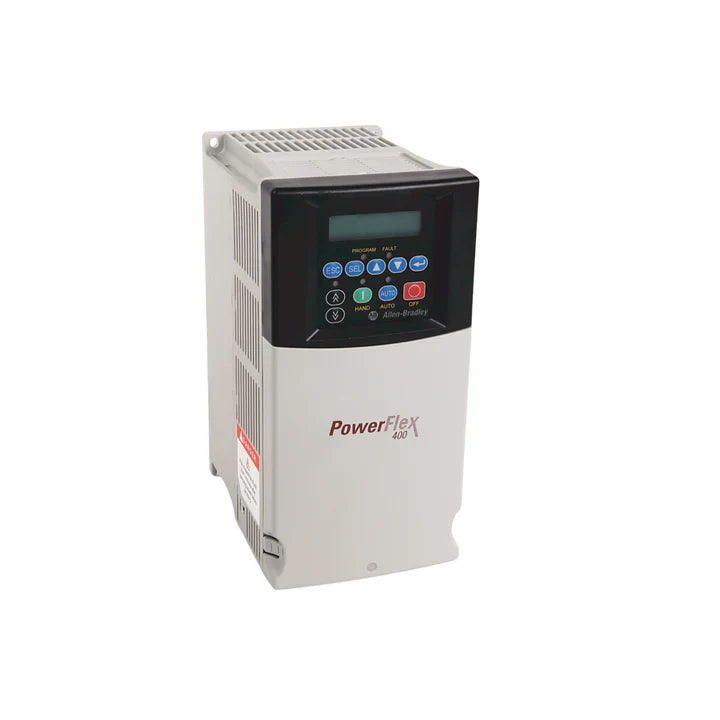

Allen-Bradley 22C-D017N103

Overview

The Allen-Bradley 22C-D017N103 PowerFlex 400 AC Drive is an advanced variable frequency drive meticulously engineered to deliver superior performance and energy efficiency for a wide array of fan and pump control applications. Designed to operate seamlessly with 480V, 3-phase power, this robust drive provides precise control for motors up to 10 horsepower (7.5 kW) with a continuous output current of 17 amps. Its IP20 open-type enclosure ensures suitability for integration into control panels, while the built-in RS485 communication interface (supporting Modbus RTU) offers effortless connectivity and remote management. The integrated fixed digital keypad simplifies parameter setup and monitoring, making it an ideal solution for industrial and commercial environments seeking reliable motor speed orchestration and significant energy savings. This model, devoid of a brake IGBT, is ideally suited for standard fan and pump applications where dynamic braking is not a requirement, prioritizing smooth, continuous operation and extended equipment longevity.

Key Features

• Optimized for Fan & Pump Applications: Specifically designed to meet the dynamic requirements of HVAC, water management, and ventilation systems, offering specialized control algorithms.
• Powerful 10 HP (7.5 kW) Output: Capable of driving motors up to 10 horsepower, providing ample power for various industrial and commercial fan and pump loads.
• 480V AC, 3-Phase Operation: Ensures compatibility with standard industrial power supplies, delivering consistent and reliable performance.
• Integrated RS485 Communication: Facilitates seamless integration into control networks via Modbus RTU protocol, enabling remote monitoring and automation.
• IP20 Open Enclosure: Offers protection suitable for installation within enclosed control panels, safeguarding internal components from environmental factors.
• User-Friendly Fixed Digital Keypad: Provides intuitive access for parameter adjustments and operational status review, simplifying commissioning and maintenance.
• Enhanced Energy Efficiency: Variable frequency control significantly reduces energy consumption and operational costs in fan and pump systems.

Technical Specifications

• Model: 22C-D017N103
• Series: PowerFlex 400
• Voltage Rating: 480V AC
• Phase: 3-Phase
• Output Current: 17A
• Motor Power: 7.5 kW (10 HP)
• Enclosure Rating: IP20 (Open Type)
• Communication: RS485 (Modbus RTU)
• Keypad: Fixed Digital Keypad
• Brake IGBT: No
• Mounting: Panel/Wall Mount
• Certifications: UL, CE, RoHS

Applications

• HVAC Systems & Building Automation: Precisely controls fans and pumps for optimal climate control, ensuring human comfort and energy savings in commercial and industrial buildings.
• Water & Wastewater Treatment Plants: Manages pump speed for efficient flow regulation, chemical dosing, and transfer processes, enhancing operational reliability.
• Industrial Cooling & Ventilation Systems: Optimizes airflow and pressure in cooling towers, exhaust fans, and other ventilation equipment, promoting stable environmental conditions.
• Booster & Irrigation Pumps: Provides consistent pressure control for water distribution in agricultural and municipal applications, conserving resources and improving system performance.
• Process Automation & Manufacturing: Supports controlled motor speed applications in various production processes, contributing to product quality and operational consistency.
• Pumping Stations: Enables smart control of pump operations within pumping stations, adapting to demand fluctuations and reducing wear and tear.

Why Choose This Model?

• Unmatched Reliability: As an Allen-Bradley product, the 22C-D017N103 is built to the highest standards, offering dependable operation and a long service life, minimizing downtime.
• Significant Energy Savings: Its advanced variable frequency technology allows for precise motor speed control, leading to substantial reductions in energy consumption and lower utility bills.
• Seamless Integration: Equipped with built-in RS485 communication and Modbus RTU protocol support, this drive integrates effortlessly into existing control systems, streamlining automation.
• Optimized Performance for Specific Applications: Engineered specifically for fan and pump loads, it provides tailored control algorithms resulting in smoother operation, reduced mechanical stress, and enhanced system longevity.
• Ease of Use: The fixed digital keypad and intuitive interface make parameter configuration and monitoring straightforward, reducing setup time and maintenance efforts.
• Robust Industrial Design: The IP20 enclosure and sturdy construction ensure resilience in challenging industrial environments, offering protection and consistent performance.

Order Now

Elevate your motor control capabilities with the Allen-Bradley 22C-D017N103 PowerFlex 400 AC Drive. Experience unparalleled reliability, energy efficiency, and precise control for your fan and pump applications. Benefit from our fast shipping and worldwide delivery options. Invest in superior performance and optimize your operational costs today by adding this essential component to your system.
