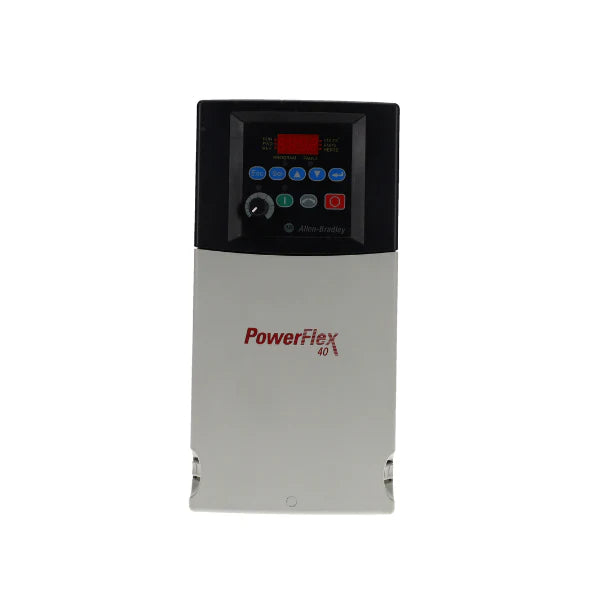

Allen-Bradley 22B-D012N104

Overview

Elevate your industrial automation capabilities with the Allen-Bradley 22B-D012N104 PowerFlex 40 AC Drive. This exceptional drive is engineered to provide precise and efficient motor control for a wide array of demanding applications. Operating seamlessly at 480V AC, three-phase, and delivering a robust 12A output current, the 22B-D012N104 commands 5.5 kW (7.5 HP) of power, making it the ideal solution for medium to high-power industrial motors.

The PowerFlex 40 series is globally recognized for its intelligent blend of compact design, cost-effectiveness, and unwavering reliability. This particular model, with its IP20 open-type enclosure, is crafted for panel-mounted installations, ensuring durability and efficient operation within diverse industrial environments. Its intuitive digital LED display, paired with a user-friendly keypad, simplifies setup and monitoring, while the integrated RS485 communication capability guarantees seamless integration into your existing industrial control systems. Experience enhanced performance and streamlined operations with this advanced AC drive.

Key Features

• Powerful Motor Control: Delivers 5.5 kW (7.5 HP) at 480V AC, 3-phase, with a 12A output, suitable for a broad range of industrial motor applications.
• Compact & Cost-Effective Design: Optimizes panel space and offers an economical solution without compromising on performance or reliability.
• User-Friendly Interface: Features a digital LED display with a keypad for quick setup, easy parameter adjustments, and clear operational feedback.
• Seamless System Integration: Equipped with RS485 communication for effortless networking and control within industrial automation systems.
• Robust Industrial Construction: Built with an IP20 open-type enclosure, ensuring durability and suitability for demanding panel-mounted environments.
• Efficient Motor Operation: Utilizes Volts per Hertz (V/Hz) control for smooth, stable, and energy-efficient motor performance.
• Simplified Programming: The 10 most frequently used parameters are conveniently grouped, allowing for rapid configuration and reduced commissioning time.

Technical Specifications

• Model: 22B-D012N104
• Series: PowerFlex 40 AC Drive
• Input Voltage: 480V AC, Three-Phase
• Output Current: 12 Amperes (A)
• Motor Power Rating: 5.5 kW (7.5 HP)
• Frame Size: C
• Enclosure Rating: IP20 (Open Type)
• Control Type: Volts per Hertz (V/Hz) Control
• Communication Protocol: RS485
• Filter: No CE-Compliant Filter
• Display: Digital Keypad with LED Display
• Mounting: Panel Mount
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Software Compatibility: DriveExplorer™ & DriveExecutive™

Applications

• General Industrial Motor Control: Perfectly suited for a diverse range of medium-to-high power motor applications, providing precise speed and torque control.
• HVAC Systems: Enhances the efficiency and control of heating, ventilation, and air conditioning systems, optimizing energy consumption.
• Material Handling: Ideal for conveyors, sorters, and other material handling equipment, ensuring smooth and reliable operation in logistics and manufacturing.
• Food & Beverage Processing: Provides consistent and hygienic speed control for pumps, mixers, and other machinery in sensitive production environments.
• Packaging Machinery: Optimizes the performance of packaging lines, improving throughput and reducing downtime with precise motor management.
• Pumps & Fans: Delivers efficient and adaptable control for various pumping and fan applications, reducing energy costs and wear.

Why Choose the Allen-Bradley 22B-D012N104?

• Unmatched Reliability: Benefit from Allen-Bradley's reputation for producing robust, industrial-grade products built for longevity and consistent performance.
• Energy Efficiency: Achieve significant energy savings through precise motor control and optimized operation, reducing overall running costs.
• Ease of Use: The intuitive LED display and simplified programming make setup and operation straightforward, even for complex applications.
• Seamless Connectivity: Integrate effortlessly into your existing control networks with the built-in RS485 communication, enhancing your system's overall intelligence.
• Versatile & Adaptable: Designed for a wide range of industrial applications, offering flexibility and powerful performance in a compact footprint.
• Expert Support: Gain access to comprehensive technical documentation and support, ensuring smooth implementation and ongoing operation.

Order Now

Upgrade your industrial motor control with the Allen-Bradley 22B-D012N104 PowerFlex 40 AC Drive today. Experience the unparalleled combination of power, precision, and reliability that only Allen-Bradley can deliver. With fast shipping and worldwide delivery options, your path to enhanced operational efficiency is just a click away.

Looking for more options? Explore our extensive selection of Allen-Bradley PowerFlex 40 Variable Frequency Drives to find the perfect solution for your specific needs.
