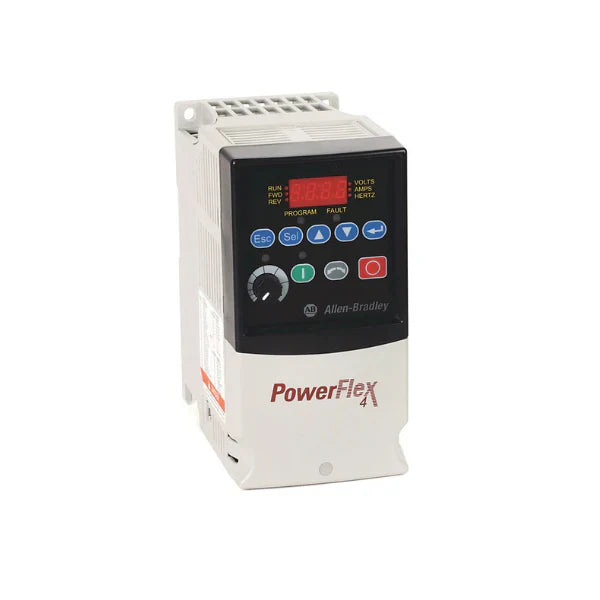

Allen-Bradley 22A-V1P5N104

Overview

The Allen-Bradley 22A-V1P5N104 PowerFlex 4 AC Drive is an exceptionally compact and cost-effective solution designed to provide precise and efficient variable frequency control for small motor applications. Operating at 120V AC, single-phase, and delivering a robust 1.5A output current, this drive masterfully controls motors up to 0.2 kW (0.25 HP). Its smaller footprint and user-friendly features make it an ideal choice for a diverse range of industrial and commercial settings, including fans, pumps, small conveyors, and general-purpose machine automation.

This particular model, part of the acclaimed PowerFlex 4 series, boasts an IP20 open-type enclosure suitable for panel mounting, a clear LED display complemented by a fixed digital keypad for straightforward setup, and integrated RS485 communication capabilities. Engineered for reliability without a CE-compliant filter, the 22A-V1P5N104 offers robust performance and simplified motor management, ensuring smooth and efficient operation in your specific application needs.

Key Features

• Optimized Power Output: Delivers 1.5A output current for 0.2 kW (0.25 HP) motor ratings with 120V AC, single-phase input.
• Compact Frame Size A: Designed for seamless integration into control panels, maximizing space efficiency.
• Intuitive Human-Machine Interface: Features a fixed digital keypad with a bright LED display for easy configuration and real-time status monitoring.
• Integrated RS485 Communication: Enables network connectivity for enhanced system integration and remote monitoring capabilities.
• V/Hz Control Mastery: Provides precise Volts per Hertz (V/Hz) control for general-purpose motor operations, ensuring smooth and stable performance.
• Robust IP20 Enclosure: Offers reliable protection for panel-mounted applications, securing internal components in industrial environments.
• Application Versatility: Perfectly suited for a wide array of small industrial motor control tasks, enhancing operational flexibility.

Technical Specifications

• Model: 22A-V1P5N104
• Series: PowerFlex 4
• Voltage Input: 120V AC, 1-Phase
• Output Current: 1.5A
• Motor Power Rating: 0.2 kW (0.25 HP)
• Enclosure Rating: IP20 (Open)
• Control Type: Volts per Hertz (V/Hz) Control
• Communication Protocol: RS485
• Filter: No CE-Compliant Filter
• Keypad Type: Fixed Digital Keypad with LED Display
• Mounting: Panel Mount
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Frame Size: A

Applications

• Small Industrial Motor Control: Ideal for managing the speed and performance of fans, pumps, blowers, and small conveyor systems in various industrial settings.
• HVAC Systems: Improves energy efficiency and airflow regulation in heating, ventilation, and air conditioning units.
• Food and Beverage Processing: Provides accurate motor speed control for mixers, small pumps, and processing equipment, ensuring product consistency.
• Material Handling Equipment: Optimizes the operation of light-duty conveyor belts, sorters, and transfer systems, enhancing throughput.
• General-Purpose Machine Automation: Suitable for a broad spectrum of low-power automated machinery requiring reliable and adjustable motor control.
• Packaging Machinery: Offers precise control for small motors in labeling, filling, and sealing equipment, increasing production line efficiency.

Why Choose This Model?

• Unmatched Value & Compact Design: Provides a cost-effective and space-saving solution for precise motor control in small applications.
• Reliable Performance & Energy Savings: Engineered by Allen-Bradley for consistent operation and optimized energy consumption in low-power industrial environments.
• Seamless Integration & Connectivity: Built-in RS485 communication simplifies integration into existing control networks and systems.
• Effortless Setup & Operation: The intuitive LED display and fixed digital keypad ensure quick configuration and user-friendly control, minimizing downtime.
• Built to Last: Features durable, industrial-grade construction (IP20) designed for long-term reliability and performance in demanding conditions.
• Global Availability with Expert Support: Benefit from fast shipping, worldwide delivery, and the trusted support associated with the Allen-Bradley brand.

Order Now

Elevate your industrial control systems with the Allen-Bradley 22A-V1P5N104 PowerFlex 4 AC Drive. Experience the perfect blend of compact design, efficient performance, and reliable motor control. Take advantage of our fast shipping and worldwide delivery options to get your operations running smoothly without delay.

Looking for alternative solutions or different specifications? Explore our comprehensive selection of high-quality Allen-Bradley PowerFlex 4 Variable Frequency Drives to find the perfect match for your unique requirements.
