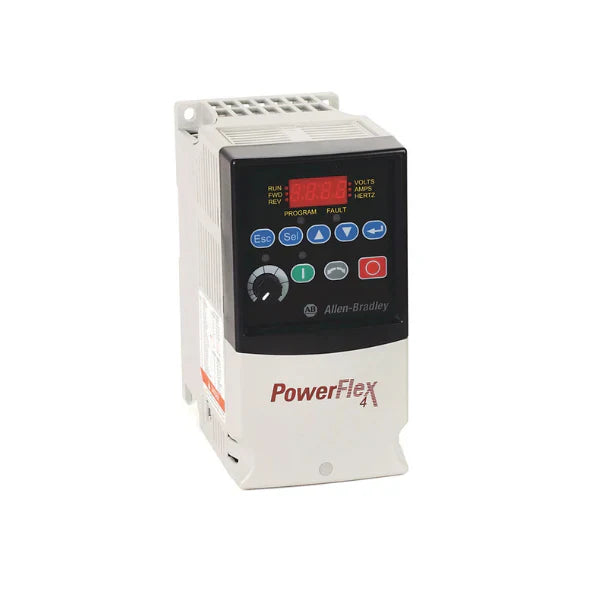

Allen-Bradley 22A-B4P5N104

Overview

Unlock precise and efficient motor control for your industrial applications with the Allen-Bradley 22A-B4P5N104 PowerFlex 4 AC Drive. This compact and versatile variable frequency drive (VFD) is engineered to deliver reliable performance for a wide range of machinery requiring accurate speed regulation. Operating at 208-240V AC, 3-phase, and delivering 4.5A output, this PowerFlex 4 model provides 0.75 kW (1 HP) of power, making it a cost-effective solution for small to medium-scale motor control needs. Its robust design and essential features ensure seamless integration and dependable operation in demanding industrial environments.

The 22A-B4P5N104 boasts an IP20 open-type enclosure, designed for straightforward panel mounting. Its user-friendly fixed digital keypad with an LED display simplifies setup and allows for quick operational adjustments. Equipped with RS485 communication, this drive facilitates effortless integration into broader automation systems, enabling remote control and monitoring capabilities. While not featuring a CE-compliant filter, it is perfectly suited for applications where EMI filtering is not a primary requirement, offering a streamlined and efficient solution for your motor control challenges.

Key Features

• Efficient Motor Control: Provides 0.75 kW (1 HP) of power at 208-240V AC, 3-phase, with 4.5A output, ensuring precise and energy-efficient operation for various industrial motors.
• Compact & Space-Saving: Frame Size A design allows for easy integration into control panels with limited space, optimizing your industrial footprint.
• Intuitive User Interface: Fixed digital keypad with an LED display offers simplified programming, monitoring, and operational adjustments, reducing setup time.
• Integrated RS485 Communication: Enables seamless connectivity with industrial networks for remote control, data exchange, and enhanced system integration.
• Durable IP20 Enclosure: Open-type enclosure is ideal for panel-mounted installations, offering protection in typical industrial environments.
• Volts per Hertz (V/Hz) Control: Guarantees smooth and stable motor speed performance, enhancing application efficiency and extending motor life.
• Cost-Effective Solution: A reliable and economical option for small-scale automation and motor control applications that prioritize core functionality.

Technical Specifications

• Model: 22A-B4P5N104
• Series: PowerFlex 4
• Voltage Input: 208-240V AC, 3-Phase
• Output Current: 4.5A
• Motor Power Rating: 0.75 kW (1 HP)
• Enclosure Rating: IP20 (Open Type)
• Control Type: Volts per Hertz (V/Hz) Control
• Communication Protocol: RS485
• Filter: No CE-Compliant Filter
• Keypad Type: Fixed Digital Keypad with LED Display
• Mounting: Panel Mount
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Frame Size: A

Applications

• Small Industrial Motor Control: Perfectly suited for low-power motors found in pumps, fans, and mixers, providing consistent and reliable operation.
• HVAC Systems: Optimizes the performance of ventilation and air handling units, contributing to energy savings and improved air quality.
• Material Handling Equipment: Enhances the precision and control of small conveyors, sorting machines, and packaging equipment.
• Food and Beverage Processing: Offers dependable speed control for various machinery in hygienic environments, supporting efficient production.
• General-Purpose Machine Automation: A versatile choice for a broad spectrum of low-power industrial machinery requiring robust and adaptable motor control.

Why Choose This Model?

• Unmatched Reliability: As an Allen-Bradley product, the 22A-B4P5N104 is built to the highest industrial standards, ensuring long-term durability and consistent performance in challenging environments.
• Optimized Performance: This drive provides precise speed control and efficient power delivery, leading to energy savings and improved operational output for your machinery.
• Ease of Integration: With RS485 communication, the PowerFlex 4 seamlessly integrates into existing and new automation systems, offering flexibility and scalability.
• User-Friendly Operation: The intuitive digital keypad and LED display make setup, programming, and monitoring straightforward, even for operators with varying levels of experience.
• Compact for Space Efficiency: Its small footprint is ideal for installations where cabinet space is at a premium, without compromising on functionality or power.
• Value-Driven Solution: Offers a high-quality, feature-rich motor control solution at a competitive price, providing excellent return on investment for small to medium-sized applications.

Order Now

Upgrade your industrial motor control capabilities today with the Allen-Bradley 22A-B4P5N104 PowerFlex 4 AC Drive. Benefit from fast shipping and worldwide delivery to get your operations running smoothly without delay. For a comprehensive range of motor control solutions, explore our full selection of Allen-Bradley PowerFlex 4 Variable Frequency Drives and find the perfect fit for your specific needs.
