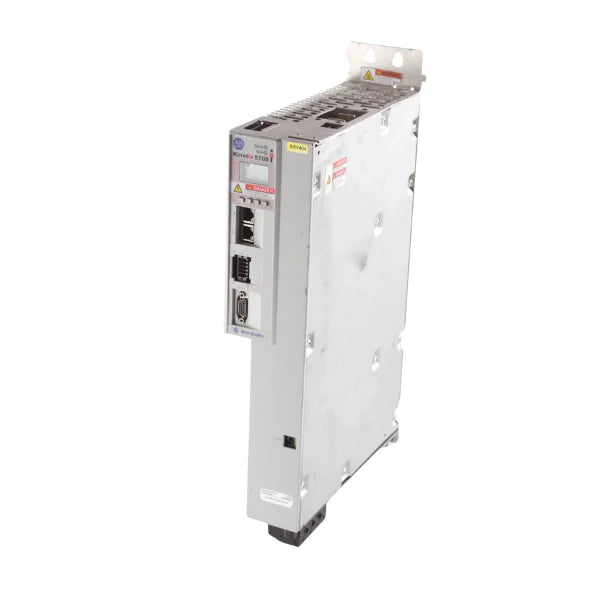

Allen-Bradley 2198-S086-ERS4

Overview

The Allen-Bradley 2198-S086-ERS4 Kinetix 5700 Servo Drive Module stands as a pinnacle of precision engineering, meticulously designed for the most demanding industrial automation environments. This single-axis servo drive delivers unparalleled motion control, ensuring optimal performance and reliability for a diverse range of applications. With a robust 43A continuous output and an impressive 86A peak output, it provides the necessary power and torque to drive complex automation and robotics systems with exceptional accuracy. Its compact 85mm width facilitates seamless integration into space-constrained control cabinets, while its advanced safety features offer crucial protection for both machinery and personnel. The 2198-S086-ERS4 is an indispensable component for industries requiring high-speed, high-precision motion control, including packaging, material handling, and CNC machining, contributing significantly to improved operational efficiency and productivity.

Key Features

• High-Performance Single-Axis Control: Engineered for precise and individual axis control, delivering superior performance in complex motion systems.
• Powerful Current Output: Offers a continuous output of 43A and a peak output of 86A, ensuring robust power delivery for demanding applications.
• Space-Saving Design: Its ultra-compact 85mm width allows for effortless integration into tight industrial control panels and cabinets.
• Integrated Advanced Safety: Features built-in safety functions, including Safe Torque Off (STO), to safeguard equipment and operators.
• Exceptional Energy Efficiency: Optimized for minimal power consumption without compromising on high-performance output.
• Versatile Connectivity: Supports multiple communication protocols such as EtherNet/IP, ControlNet, and DeviceNet for seamless system integration.
• Industrial-Grade Durability: Constructed to withstand harsh industrial conditions, ensuring long-term reliability and consistent operation.

Technical Specifications

• Model: 2198-S086-ERS4
• Type: Single-Axis Servo Drive
• Output Current: Continuous: 43A, Peak: 86A
• Module Width: 85mm
• Advanced Safety: Includes safety features such as Safe Torque Off (STO)
• Input Voltage: 200-480V AC
• Power Rating: Up to 30 kW
• Feedback: Encoder and resolver feedback options
• Communication: EtherNet/IP, ControlNet, or DeviceNet
• Mounting: DIN Rail and panel mount options
• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Enclosure Rating: IP20 (NEMA 1)
• Dimensions: 207mm x 85mm x 264mm (8.15" x 3.35" x 10.4")
• Weight: 2.4 kg (5.3 lbs)

Applications

• Industrial Automation: Elevates precision and efficiency in high-speed manufacturing and assembly lines.
• CNC Machines: Delivers ultra-accurate motion control essential for cutting, milling, and complex machining operations.
• Material Handling Systems: Optimizes the performance of conveyors, robotic pick-and-place units, and advanced packaging machinery.
• Robotics: Provides the precise and reliable motion control vital for advanced industrial robots and manipulators.
• Automated Testing Equipment: Crucial for test systems where accuracy, repeatability, and speed are paramount.
• Printing/Converting: Ensures consistent tension control and precise registration in printing and converting processes.

Why Choose This Model?

• Unmatched Precision: Achieve superior control and accuracy for the most demanding motion applications, minimizing errors and maximizing output.
• Robust Performance: Count on consistent and powerful operation, even under continuous heavy loads, ensuring long-term productivity.
• Compact Integration: Its sleek, narrow design allows for easy installation in existing or new systems, saving valuable cabinet space.
• Operator and Equipment Safety: Benefit from advanced, integrated safety features that protect your valuable assets and personnel.
• Future-Proof Connectivity: Seamlessly integrate into various industrial networks, ensuring scalability and adaptability for evolving automation needs.
• Allen-Bradley Reliability: Invest in a trusted brand known for its uncompromising quality, durability, and extensive global support.

Order Now

Enhance your industrial automation capabilities with the Allen-Bradley 2198-S086-ERS4 Kinetix 5700 Servo Drive Module. Experience the difference that precision, power, and advanced safety can make in your operations. Contact us today to secure your unit and take a significant step towards optimizing your system's performance.
