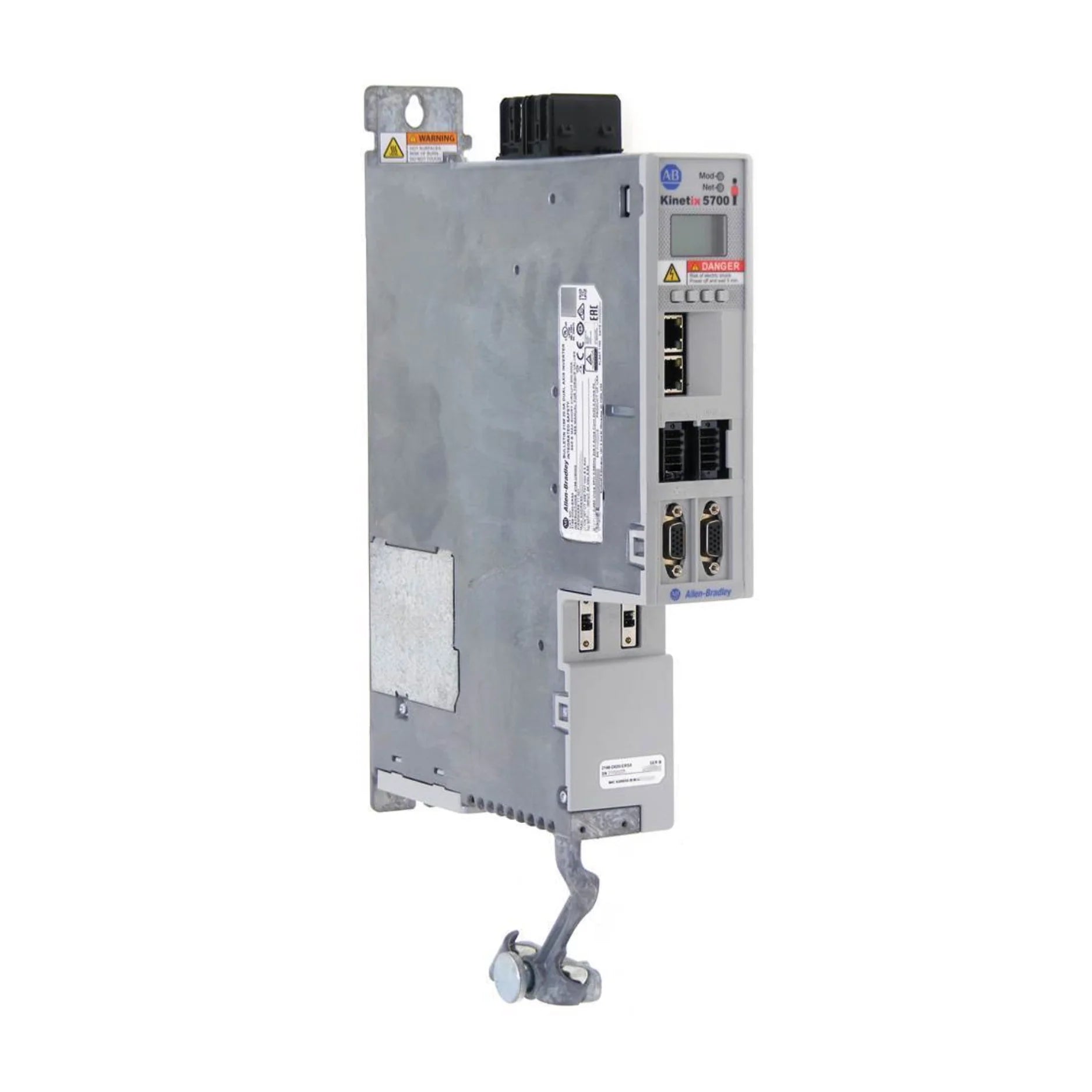

Allen-Bradley 2198-D020-ERS3

Overview

Elevate your industrial automation with the Allen-Bradley 2198-D020-ERS3 Kinetix 5700 Dual-Axis Servo Drive Module. Engineered for high-performance and precision, this advanced servo drive is a cornerstone for demanding motion control applications. It expertly manages two independent axes, each delivering a robust 8A continuous output current and 5.4 kW of power. This makes the 2198-D020-ERS3 an indispensable component for sectors requiring meticulous control, such as intricate robotics, sophisticated CNC machining, efficient material handling, and high-speed automated production lines.

The innovative design boasts a remarkably compact 55mm width, facilitating significant space savings within your control panels. Seamless integration into existing Rockwell Automation infrastructures is guaranteed through its EtherNet/IP connectivity, ensuring smooth communication and synchronized operations. With comprehensive support for positioning, velocity, and torque control, this Kinetix 5700 drive is meticulously optimized to boost operational efficiency and substantially enhance overall machine performance and reliability.

Key Features

• Dual-Axis Control: Independently manages two servo axes for versatile and complex motion tasks.
• High-Current Output: Delivers 2 x 8A continuous output, supporting powerful and dynamic motion control.
• Efficient Power Delivery: Provides 5.4 kW of power output per axis, ensuring energy-efficient operation.
• Space-Saving Design: Features an ultra-compact 55mm module width, optimizing panel space.
• EtherNet/IP Integration: Ensures seamless and reliable communication within industrial networks.
• Advanced Motion Control: Offers precise positioning, velocity, and torque regulation for superior accuracy.
• Optimized for Kinetix Motors: Guarantees seamless compatibility and peak performance with Kinetix servo motors.

Technical Specifications

The Allen-Bradley 2198-D020-ERS3 is built to meet rigorous industrial standards, offering exceptional performance and reliability:

• Model: 2198-D020-ERS3
• Series: Kinetix 5700
• Number of Axes: Dual-Axis
• Continuous Output Current: 2 x 8A
• Power Output: 2 x 5.4 kW
• Module Width: 55mm
• Communication Protocol: EtherNet/IP
• Control Modes: Positioning, Velocity, and Torque Control
• Mounting: Panel Mount
• Operating Temperature: 0°C to 50°C (32°F to 122°F)

Applications

The versatility and high performance of the Allen-Bradley 2198-D020-ERS3 make it suitable for a wide array of demanding industrial applications:

• Multi-Axis Motion Control Systems: Ideal for complex automation requiring synchronized dual-axis operation.
• CNC Machinery & Precision Manufacturing: Enables exceptional speed and accuracy in machining processes.
• Robotics & Automated Assembly Lines: Enhances precision, repeatability, and efficiency in automated production.
• Material Handling & Conveyor Systems: Ensures smooth, reliable, and precise movement of goods.
• General Industrial Automation: Adaptable for various high-performance control applications across industries.

Why Choose This Model?

• Unmatched Dual-Axis Capability: Control two independent servo axes with unparalleled precision and flexibility, optimizing complex motion profiles.
• Compact & Space-Efficient Design: Its ultra-thin 55mm width significantly reduces the required panel space, facilitating more compact and cost-effective system designs.
• Seamless EtherNet/IP Connectivity: Ensures effortless integration and communication within your existing Rockwell Automation ecosystem, streamlining commissioning and reducing downtime.
• Advanced Motion Control Algorithms: Benefit from state-of-the-art control over positioning, velocity, and torque, leading to superior machine performance, accuracy, and reliability.
• Enhanced Productivity: Designed to boost operational efficiency and throughput in critical automation processes, directly impacting your bottom line.

Order Now

Take advantage of the advanced capabilities of the Allen-Bradley 2198-D020-ERS3 Kinetix 5700 Dual-Axis Servo Drive Module. Experience fast shipping and worldwide delivery to get your operations running at peak performance without delay.

Discover our complete range of Allen-Bradley Kinetix 5700 Servo Drives to find the perfect solution for your specific automation needs.
