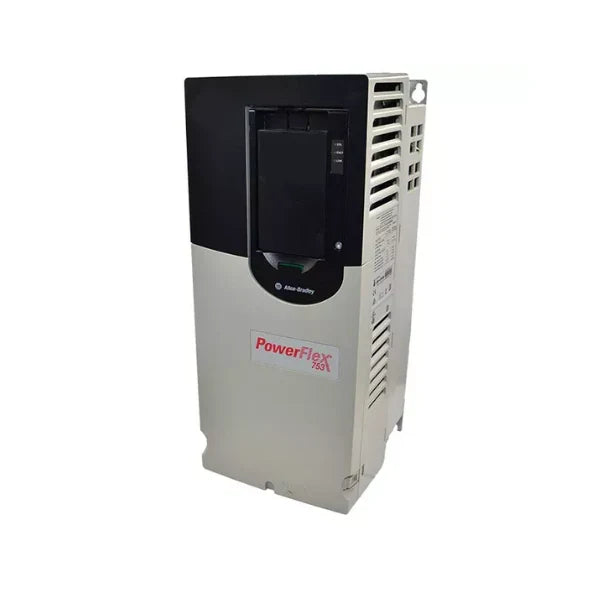

Allen-Bradley 20F11NC043JA0NNNNN

Overview

Unlock superior motor control and operational efficiency with the Allen-Bradley 20F11NC043JA0NNNNN PowerFlex 753 AC Drive. Engineered for demanding industrial environments, this high-performance drive provides precise management of motor speed and torque, ensuring seamless integration into your automation systems. Designed with robustness and reliability in mind, the 20F11NC043JA0NNNNN offers a comprehensive solution for a wide array of applications, from intricate manufacturing processes to heavy-duty material handling. With its advanced features and resilient construction, this PowerFlex 753 drive guarantees optimized performance and enhanced productivity for your facility.

Operating at 400V AC with a 3-phase input, this drive delivers a robust 43A output current. It offers impressive power ratings, including 22kW (30 HP) for normal duty and 18.5kW (25 HP) for heavy-duty applications. The integrated air-cooling system, coupled with a built-in dynamic braking (DB) transistor and a filtered design, contributes to its exceptional performance and longevity. As a Frame 3 device, it offers a compact yet powerful solution, while the precharge AC input capability ensures stable power management and optimized motor operation. This open-type drive is perfect for panel-mounted installations, offering flexibility and ease of integration into existing setups.

Key Features

• High-Performance Power Delivery: Boasts a 22kW Normal Duty (ND) and 18.5kW Heavy Duty (HD) power rating, making it suitable for a diverse range of demanding motor control applications.
• Optimized Industrial Voltage: Operates at 400V AC, 3-Phase, ensuring compatibility with standard industrial power inputs for reliable and consistent performance.
• Stable 43A Output Current: Provides a steady and efficient 43 Amperes output, crucial for maintaining optimal motor function and productivity.
• Integrated Dynamic Braking Transistor: Features an included DB transistor, enabling swift and effective dynamic braking for enhanced control and safety.
• Advanced Filtered Design: Incorporates a sophisticated filtered design to significantly reduce electrical noise and electromagnetic interference, promoting cleaner operation and system stability.
• Precharge AC Input Capability: Equipped with precharge AC input, which aids in smoother power management and contributes to overall operational stability and motor longevity.
• Compact Frame 3 Design: Its Frame 3 size provides a balance of power and compactness, ideal for space-conscious installations without compromising on performance.

Technical Specifications

• Model: 20F11NC043JA0NNNNN
• Series: PowerFlex 753
• Input Voltage: 400V AC, 3-Phase
• Output Current: 43A
• Power Rating: 22kW (Normal Duty) / 18.5kW (Heavy Duty)
• Cooling Method: Air-Cooled
• Enclosure Type: Open Type
• Dynamic Braking (DB) Transistor: Yes
• CM Jumper: Installed
• Filter: Yes
• Frame Size: 3
• Mounting: Panel Mount (Note: Requires External HIM for Display and control)
• Certifications: UL, CE, RoHS compliant

Applications

• Industrial Motor Control & Automation: Provides precise and reliable control for a wide range of industrial motors, enhancing operational accuracy and efficiency.
• Pumps, Fans & HVAC Systems: Optimizes energy consumption and performance in fluid handling and air management systems, leading to substantial energy savings.
• Material Handling & Conveyors: Ensures smooth, high-performance motion control for conveyor belts, robotic arms, and other material handling equipment.
• Manufacturing & Process Control: Enhances the reliability and precision of manufacturing processes, contributing to higher quality output and reduced downtime.
• Packaging Machinery: Delivers accurate speed and torque control essential for high-speed and precision packaging lines, improving throughput.
• Extruders and Mixers: Provides robust power and control for heavy industrial machinery involved in material processing and mixing.

Why Choose This Model?

• Unmatched Reliability: Built by Allen-Bradley, a leader in industrial automation, this drive offers exceptional durability and a long operational lifespan.
• Superior Motor Control: Experience precise speed and torque control, leading to improved process accuracy and reduced wear and tear on machinery.
• Energy Efficiency: Optimize your energy consumption with its intelligent design, translating into lower operating costs and a reduced environmental footprint.
• Seamless Integration: Designed for easy integration into existing or new industrial automation systems, minimizing installation time and complexity.
• Enhanced System Protection: Features like the integrated filter and robust design protect your equipment from electrical interference and operational stress.
• Versatile Application Adaptability: Its broad power ratings and robust features make it highly adaptable to a variety of demanding industrial applications.

Order Now

Upgrade your industrial automation capabilities with the Allen-Bradley 20F11NC043JA0NNNNN PowerFlex 753 AC Drive. Benefit from its high performance, reliability, and energy efficiency. Fast shipping and worldwide delivery options are available to ensure you receive your critical components promptly.
