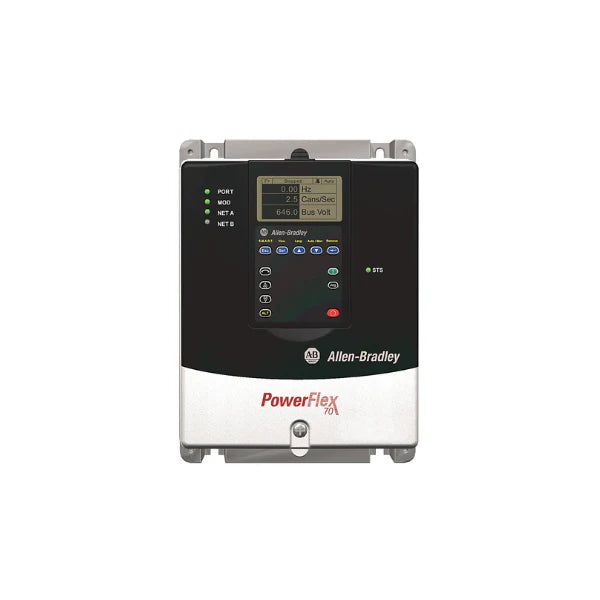

Allen-Bradley 20AC5P0A0AYYANC0

Overview

The Allen-Bradley 20AC5P0A0AYYANC0 PowerFlex 70 AC drive is an exceptionally robust and versatile solution engineered to meet the demanding requirements of a wide array of industrial applications. This specific model stands out with its impressive power ratings of 2.2 kW for Normal Duty and 1.5 kW for Heavy Duty operation, all while delivering a consistent 5 Amp output current from a 400V AC three-phase input. Designed for efficiency and reliability, the 20AC5P0A0AYYANC0 is ideal for environments where precise motor control and dynamic braking are paramount.

Beyond its core performance, this PowerFlex 70 drive boasts an integrated drive-mounted brake resistor, eliminating the need for external braking components and simplifying installation. The IP20/NEMA Type 1 panel-mount enclosure, coupled with conformal coating, ensures enhanced protection against harsh industrial elements, guaranteeing longevity and consistent performance. While designed for external programming due to the absence of a Human Interface Module (HIM), its advanced control capabilities and compliance with CE EMC directives make it a superior choice for modern industrial setups. Experience seamless operation and enhanced control with a drive that is IN STOCK and ready for immediate shipment from DD Parts Solution.

Key Features

• Integrated Drive-Mounted Brake Resistor: Unmatched convenience and performance with built-in dynamic braking, eliminating external resistor needs.
• Flexible Power Ratings: Delivers 2.2 kW for Normal Duty and 1.5 kW for Heavy Duty applications, accommodating diverse motor requirements.
• Robust Environmental Protection: IP20/NEMA Type 1 panel-mount enclosure with conformal coating for superior durability in challenging conditions.
• 400V AC, 3-Phase Input: Seamless compatibility with standard industrial power infrastructures.
• Enhanced Control Algorithms: Offers advanced control capabilities for precise and efficient motor operation.
• CE EMC Compliance: Features a second environment filter, adhering to stringent CE EMC directive (89/336/EEC) standards.
• In Stock and Ready to Ship: Immediate availability through DD Parts Solution ensures minimal downtime and swift deployment.

Technical Specifications

Explore the detailed technical specifications that make the Allen-Bradley 20AC5P0A0AYYANC0 a leader in its class:

• Catalog Number: 20AC5P0A0AYYANC0
• Input Voltage: 380-480V AC, 3-Phase, 50/60 Hz
• Output Voltage: 0-Input Voltage, 3-Phase
• Output Current: 5 Amps
• Power Rating: 2.2 kW (Normal Duty), 1.5 kW (Heavy Duty)
• Enclosure: Panel Mount - IP20/NEMA Type 1
• Cooling Method: Convection/Heatsink
• Braking: Brake IGBT Installed, Drive-Mounted Brake Resistor Installed
• Filtering: Second Environment Filter (CE EMC)
• Control Method: Enhanced Control (Sensorless Vector Control)
• Feedback: No Feedback (Open Loop, external loop sensors are optional)
• Human Interface Module (HIM): None (Blank Plate – requires external programming)
• Communication Module: None (Requires optional module for network connectivity)

Applications

The Allen-Bradley 20AC5P0A0AYYANC0 PowerFlex 70 AC drive is engineered for optimal performance across various industrial scenarios, particularly where robust control and efficient braking are critical. Its versatility makes it an ideal choice for:

• High-Inertia Load Management: Perfectly suited for applications involving pumps, fans, and blowers where controlled deceleration is essential.
• Conveying Systems: Ensures smooth and reliable operation in material handling and conveyor applications, optimizing throughput.
• Material Handling Systems: Provides precise control for lifts, hoists, and other material handling equipment requiring frequent stops and starts.
• General Purpose Industrial Control: An excellent solution for a broad spectrum of industrial motor control tasks where open-loop operation is acceptable.
• Applications with Frequent Braking: Excels in environments demanding consistent and reliable dynamic braking, thanks to its integrated resistor.

Why Choose This Model?

• Simplified Installation & Cost Savings: The integrated, drive-mounted brake resistor eliminates the need for separate components, reducing wiring, panel space, and overall installation complexity and cost.
• Enhanced Reliability: Conformal coating and a robust IP20/NEMA Type 1 enclosure protect against dust, moisture, and corrosive elements, extending the drive's lifespan in harsh industrial settings.
• Optimized Performance: Benefit from advanced control algorithms for precise motor operation, ensuring efficiency and accuracy in your industrial processes.
• Immediate Availability: With the 20AC5P0A0AYYANC0 being IN STOCK at DD Parts Solution, you can avoid lengthy lead times and get your operations up and running without delay.
• Trusted Brand Quality: Leverage the renowned reliability and performance of Allen-Bradley PowerFlex drives, a leader in industrial automation.
• Compliance Assurance: The built-in second environment filter ensures adherence to stringent CE EMC directives, minimizing electromagnetic interference and promoting system stability.

Order Now

Don't compromise on performance or reliability. The Allen-Bradley 20AC5P0A0AYYANC0 PowerFlex 70 AC drive with its integrated brake resistor is the smart choice for efficient and robust motor control. Ready to experience superior industrial automation? Order your 20AC5P0A0AYYANC0 today from DD Parts Solution and benefit from immediate shipment and unparalleled support. Elevate your system's capabilities and ensure seamless operation with this top-tier AC drive.
