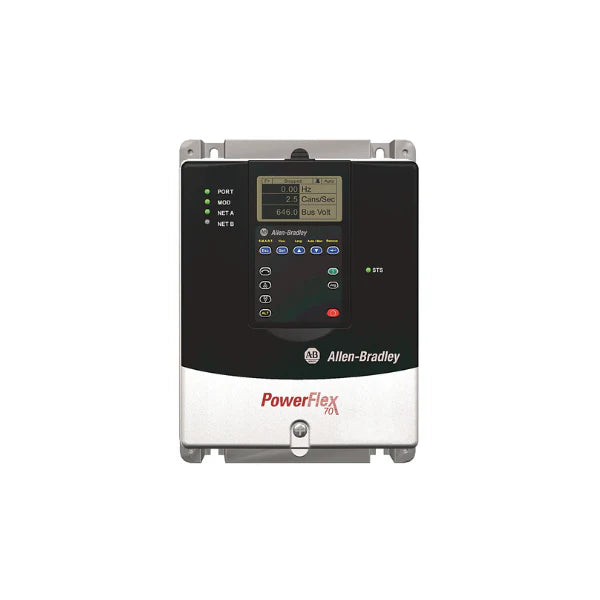

Allen-Bradley 20AC5P0A0AYNNNC0

Overview

The Allen-Bradley 20AC5P0A0AYNNNC0 PowerFlex 70 AC drive is a versatile and robust solution engineered for demanding industrial environments. This particular model delivers a substantial 2.2 kW (kilowatts) for Normal Duty applications and a focused 1.5 kW for Heavy Duty operations, providing the flexibility needed for various motor control requirements. Operating with a 5 Amp output current and designed for a 400V AC three-phase input, this drive ensures reliable and efficient performance across a wide array of machinery.

Built for straightforward integration, this PowerFlex 70 variant features a panel-mount design with an IP20/NEMA Type 1 enclosure, signifying its suitability for installation within protected control cabinets. Its conformal coating further enhances durability, safeguarding internal components against challenging environmental conditions. While it comes without a pre-installed Human Interface Module (HIM), allowing for external programming and network communication, it does include a brake IGBT for dynamic braking capabilities. This means you can implement rapid motor deceleration, though an external brake resistor will be required. A key differentiator for the 20AC5P0A0AYNNNC0 is the absence of a second environment filter for CE EMC directive compliance, making it an ideal choice for applications where CE certification is not mandated or where existing external filtering solutions are already in place. Enhance your control capabilities with this robust drive, available IN STOCK and ready to ship TODAY from DD Parts Solution.

Key Features

• Flexible Power Output: Offers 2.2 kW for Normal Duty and 1.5 kW for Heavy Duty applications, accommodating various motor demands.
• Industrial Voltage Compatibility: Designed for 400V AC, 3-Phase input, seamlessly integrating with standard industrial power systems.
• Robust Enclosure Design: Panel Mount with IP20/NEMA Type 1 rating ensures protection in controlled environments.
• Enhanced Durability: Conformal coating provides superior protection against harsh environmental elements, extending drive lifespan.
• Dynamic Braking Enabled: Features an installed Brake IGBT for effective dynamic braking, requiring an external brake resistor.
• Application-Specific Filtering: Deliberately excludes a CE compliant filter, perfect for regions or setups not requiring CE EMC directive adherence.
• Advanced Control Algorithms: Provides enhanced control capabilities for precise motor operation, despite operating without feedback in an open-loop system.

Technical Specifications

The Allen-Bradley 20AC5P0A0AYNNNC0 is meticulously engineered to meet stringent industrial demands. Its catalog number is 20AC5P0A0AYNNNC0. It accepts an input voltage of 380-480V AC, 3-Phase, at 50/60 Hz, and delivers an output voltage ranging from 0 to the input voltage, also in 3-Phase. The drive provides a stable output current of 5 Amps. Its power ratings are clearly defined with 2.2 kW for Normal Duty and 1.5 kW for Heavy Duty operations. The enclosure is designed for panel mounting and carries an IP20/NEMA Type 1 rating, indicating its suitability for protected environments. Cooling is primarily achieved through convection or a heatsink mechanism. For braking, a Brake IGBT is installed, though an external resistor is needed to complete the dynamic braking circuit. This model specifically does not include a CE compliant filter and utilizes enhanced control methods, often sensorless vector control, operating in an open-loop system without feedback.

Applications

• Industrial setups where CE EMC compliance is not a mandatory requirement.
• Optimizing the performance of pumps, fans, and blower systems.
• Reliable control for various conveyor systems in manufacturing and logistics.
• Efficient operation within material handling systems.
• General-purpose industrial applications where precise motor feedback is not paramount.

Why Choose This Model?

• Cost-Effective Flexibility: Ideal for applications where CE compliance is not critical, offering a streamlined solution without unnecessary features.
• Built for Durability: The conformal coating ensures long-term reliability even in less-than-ideal industrial conditions.
• Tailored for Specific Needs: The absence of a HIM and communication module (as standard) allows for customized integration and external control strategies.
• Immediate Availability: IN STOCK and ready to ship, minimizing downtime and accelerating project timelines.
• Trusted Brand Quality: Benefit from the renowned reliability and performance of Allen-Bradley PowerFlex technology.

Order Now

Experience the robust and flexible motor control capabilities of the Allen-Bradley 20AC5P0A0AYNNNC0 PowerFlex 70 AC drive. Designed for efficiency and durability, this drive is the perfect solution for a variety of industrial applications. With its specific configuration for environments not requiring CE EMC compliance and its advanced control features, it stands ready to optimize your operations. Don't miss out on this high-performing solution. Order your 20AC5P0A0AYNNNC0 today from DD Parts Solution and ensure immediate shipment for your project needs!
