Allen-Bradley 20AC060A0AYNANC0

Overview

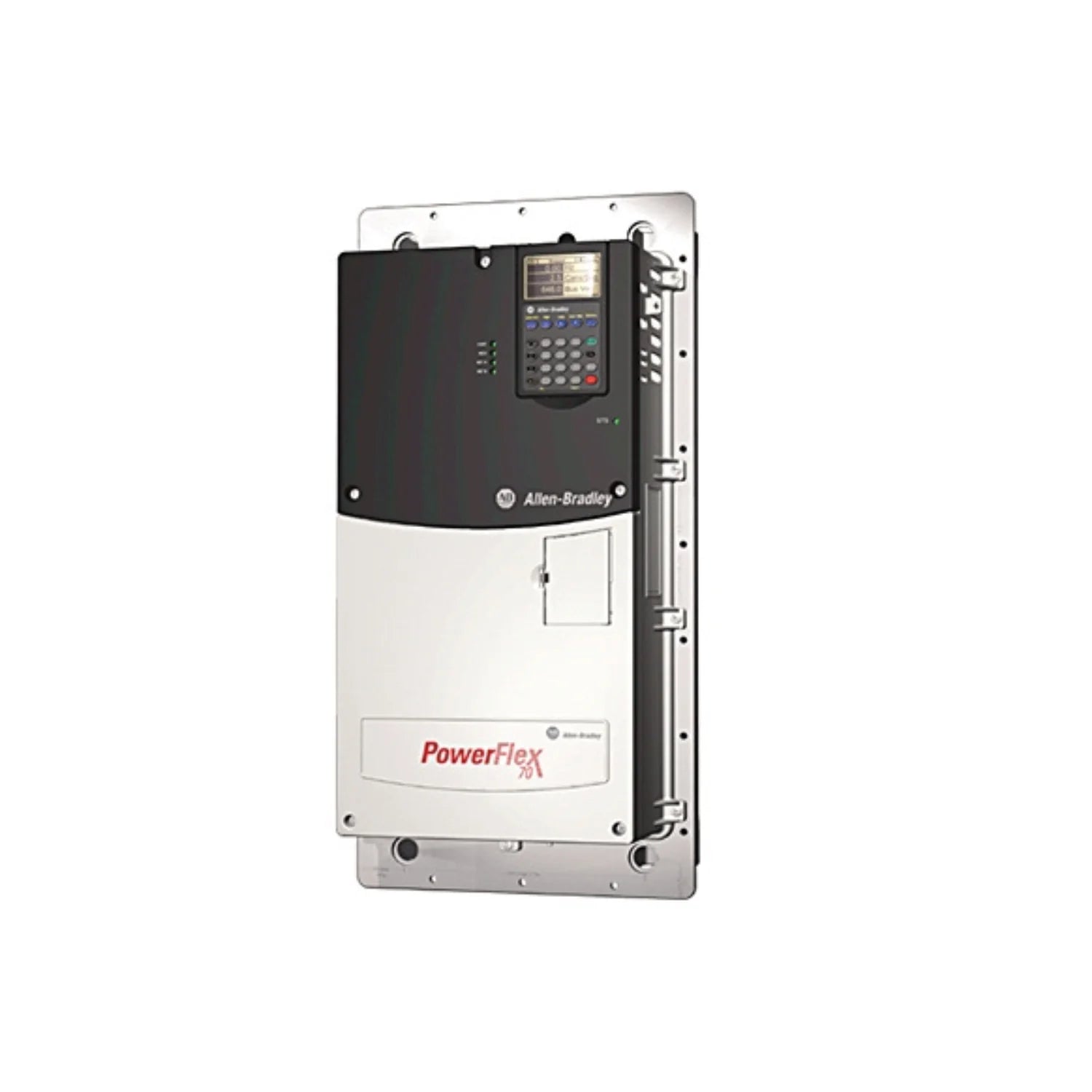

The Allen-Bradley 20AC060A0AYNANC0 PowerFlex 70 AC Drive is engineered for superior performance in demanding industrial motor control environments. This robust drive, from the esteemed Allen-Bradley PowerFlex 70 series, operates efficiently on a 400V AC three-phase input, delivering an impressive 30 kW (Normal Duty) and 22 kW (Heavy Duty) of power output, complemented by a 60 A output current. It is meticulously designed to offer enhanced motor control capabilities, incorporating a brake IGBT and a Second Environment CE EMC filter to ensure optimal electromagnetic compliance. Perfect for system-integrated setups, this unit is built for panel mounting with a durable IP20 / NEMA Type 1 enclosure, and comes without a Human Interface Module (HIM) or communication interface, streamlining its integration into existing frameworks. The conformal coating further enhances its resilience, protecting critical components from harsh environmental conditions.

Key Features

• High Power Output: Delivers 30 kW for Normal Duty and 22 kW for Heavy Duty applications.
• Robust Input Voltage: Operates efficiently on 400V AC, 3-phase power, ensuring stable performance.
• Integrated Braking: Features an installed Brake IGBT for precise motor deceleration and stopping.
• CE EMC Compliance: Includes a Second Environment CE EMC Filter (per 89/336/EEC) for reduced electromagnetic interference.
• Durable Enclosure: IP20 / NEMA Type 1 rated for reliable panel mounting in industrial settings.
• Conformal Coating: Provides essential protection against moisture, dust, and corrosive elements, extending lifespan.
• Enhanced Motor Control: Offers versatile control modes including V/Hz, sensorless vector, and full vector with encoder for superior precision.

Technical Specifications

• Catalog Number: 20AC060A0AYNANC0
• Series: PowerFlex 70
• Frequency Range: 0–500 Hz
• Cooling Method: Internal fan
• Ambient Operating Temperature: 0°C to +50°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95%, non-condensing
• Protection Features: Advanced protection against overvoltage, undervoltage, overload, and motor fault detection.
• Certifications: UL, cUL, CE (with included filter), RoHS compliant.
• Mounting Orientation: Panel mount only
• Frame Size: E
• Dimensions (H × W × D): 555.8 mm × 280.3 mm × 219.8 mm
• Weight: Approximately 18.6 kg

Applications

• Heavy-Duty Industrial Systems: Ideal for demanding motor applications in manufacturing, processing, and material handling.
• Conveyor, Pump, and Compressor Control: Provides reliable and efficient operation for critical fluid and material transport systems.
• Automated Machinery: Perfectly suited for equipment requiring precise braking and robust electromagnetic compatibility.
• OEM Equipment Integration: A compact and powerful solution for original equipment manufacturers seeking integrated drive technologies.
• Environments Requiring EMC Compliance: Ensures adherence to European directives for electromagnetic compatibility, reducing cross-device interference.

Why Choose This Model?

• Unmatched Power Density: Experience substantial power delivery in a meticulously engineered, compact form factor, optimizing space and performance.
• Integrated European EMC Compliance: The factory-installed CE-compliant EMC filter guarantees adherence to rigorous European directives, simplifying installation and ensuring harmonious operation in diverse environments.
• Superior Motor Control Algorithms: Benefit from advanced control algorithms for V/Hz, sensorless vector, and full vector with encoder, providing unparalleled precision and responsiveness across a broad spectrum of motor applications.
• Built for Industrial Resilience: Designed with a robust construction and complemented by a conformal coating, this drive is engineered to thrive in the most challenging industrial conditions, including high humidity and corrosive atmospheres.
• Seamless System Integration: Its design without a HIM module or communication interface makes it an optimal choice for seamless integration into existing control systems, offering flexibility and streamlining setup processes.
• Global Reliability & Certification: With comprehensive UL, cUL, CE, and RoHS certifications, the 20AC060A0AYNANC0 assures global standard compliance and dependable operation wherever your operations may be.

Order Now

Elevate your industrial motor control systems with the Allen-Bradley 20AC060A0AYNANC0 PowerFlex 70 AC drive. This high-performance, reliable, and efficient solution is readily available and ships worldwide, ready to integrate into your most critical applications. Explore the full potential of your machinery with a drive built for precision and durability. For a complete range of options, we invite you to browse our extensive selection of Allen-Bradley PowerFlex 70 Variable Frequency Drives.
