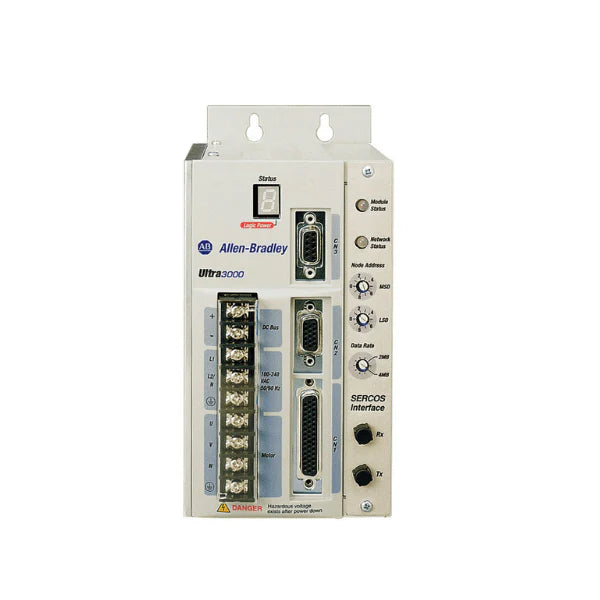

Allen-Bradley 2098-DSD-010X-DN

Overview

Elevate your industrial automation capabilities with the Allen-Bradley 2098-DSD-010X-DN, a high-performance Ultra3000 digital servo drive. Engineered for demanding motion control applications, this robust drive delivers exceptional precision and reliability. With a 1kW output power rating and 230V AC input, it's ideally suited for systems requiring accurate, repeatable positioning and fast response times. The integrated DeviceNet communication interface ensures seamless integration into existing control networks, making it a versatile solution for modern manufacturing environments. This indexing servo drive combines advanced technology with a compact design, providing a powerful yet space-efficient solution for various industrial needs, from complex robotics to intricate material handling.

Key Features

• Ultra3000 Series Performance: Benefit from the proven reliability and advanced capabilities of Allen-Bradley's Ultra3000 drive family, ensuring superior motion control.
• 1kW Output Power: Provides ample power for a wide range of applications, delivering consistent and efficient operation.
• 230V AC Input: Compatible with common industrial power supplies, offering flexible integration into global systems.
• Integrated DeviceNet Communication: Facilitates seamless networking and real-time data exchange for enhanced control and diagnostics.
• Indexing Control Capability: Perfect for applications requiring precise, repeatable positioning, either as a standalone unit or within a network.
• Auto-Tuning Functionality: Simplifies setup and commissioning, automatically optimizing drive performance for connected motors.
• Compact and Durable Design: Engineered for space-saving panel mounting, ensuring efficient use of valuable cabinet space while providing long-term reliability.

Technical Specifications

• Catalog Number: 2098-DSD-010X-DN
• Drive Series: Ultra3000
• Output Power: 1kW (Continuous)
• Input Voltage Range: 120–240V AC
• Continuous Output Current: Approximately 4.2 A
• Peak Output Current: Approximately 10 A
• Digital Interface: DeviceNet
• Control Modes: Position, Velocity, Torque
• Ambient Temperature: 0°C to 50°C
• Certifications: CE, cULus, RoHS Compliance
• Feedback Support: Compatible with Resolver or Encoder (motor dependent)
• Integrated Features: Motion profiling, safety stop functionality

Applications

• Precision Indexing and Rotary Actuators: Ideal for highly accurate rotational and linear positioning tasks in manufacturing.
• Automated Pick-and-Place Systems: Enhances the speed and accuracy of robotic systems in assembly and packaging lines.
• Material Handling and Conveyor Systems: Provides smooth and controlled movement for optimized production flow.
• Packaging, Labeling, and Print Automation: Ensures precise synchronization and control for high-speed, repetitive operations.
• OEM and Custom Machinery: Perfect for integration into specialized equipment requiring reliable DeviceNet communication and motion control.
• Food and Beverage Processing: Suitable for environments demanding precise control and consistent operation in automated lines.

Why Choose This Model?

• Unmatched Precision and Control: Experience superior motion accuracy and responsiveness, critical for demanding industrial processes.
• Seamless DeviceNet Integration: Effortlessly connect to your existing network for streamlined communication and control, reducing complexity.
• Simplified Commissioning: The auto-tuning feature significantly reduces setup time and optimizes performance, getting your system online faster.
• Robust and Reliable Performance: Built with Allen-Bradley's renowned quality, ensuring long-term operational stability and minimal downtime.
• Space-Saving Design: Its compact footprint allows for efficient use of control cabinet space, an essential consideration in modern factory layouts.
• Global Availability and Support: As part of the Ultra3000 family, this drive benefits from worldwide availability and Allen-Bradley's comprehensive technical support.

Order Now

The Allen-Bradley 2098-DSD-010X-DN Ultra3000 servo drive is available for immediate acquisition. Enhance your automation systems with this powerful and reliable solution, shipped worldwide to meet your operational demands. Contact us today to secure this essential component for your advanced motion control requirements.
