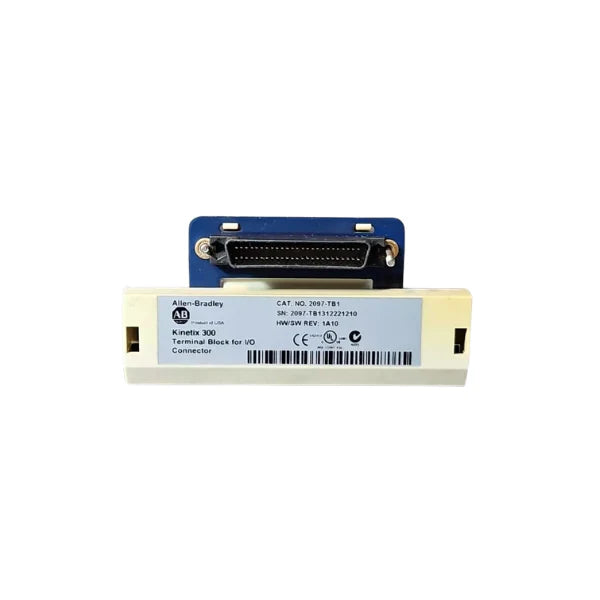

Allen-Bradley 2097-TB1

Overview

The Allen-Bradley 2097-TB1 is a dedicated I/O breakout board engineered to revolutionize the wiring process for Kinetix 300 and Kinetix 350 servo drives. Designed for seamless integration, this essential component provides a highly efficient and organized method for connecting input/output (I/O) wires directly to your drives. By utilizing robust screw terminals, the 2097-TB1 eliminates the common headaches associated with complex industrial wiring, such as the need for cumbersome extension cables and bulky, separate terminal blocks. This not only significantly simplifies the overall wiring scheme but also dramatically reduces installation time and minimizes system complexity, leading to a cleaner, more reliable, and easier-to-maintain automation setup. The board's direct connection capability to the I/O connector on the front of Kinetix drives underscores its commitment to efficiency and user-friendliness. As a critical component for optimizing your Kinetix servo drive applications, the 2097-TB1 ensures a streamlined and professional installation.

Key Features

• Seamless Kinetix Compatibility: Specifically engineered to integrate perfectly with Allen-Bradley Kinetix 300 and Kinetix 350 servo drives, ensuring optimal performance and reliable connections.
• Direct Drive Connection: Mounts directly to the I/O connector on the front of the Kinetix drive, promoting a compact footprint and reducing cable clutter.
• Robust Screw Terminal Connections: Provides secure and reliable screw terminals for all I/O wiring, simplifying installation and ensuring stable electrical contact.
• Eliminates Extension Cables: Designed to remove the necessity for additional I/O extension cables, contributing to a tidier wiring cabinet and reduced material costs.
• Replaces Separate Terminal Blocks: Integrates the functionality of external terminal blocks, centralizing I/O connections and further simplifying your system architecture.
• Significant Time Savings: Drastically cuts down on installation and troubleshooting time due to its straightforward design and direct connection capabilities.
• Enhanced System Organization: Contributes to a much cleaner and more organized control panel, making maintenance and future modifications simpler and more efficient.

Technical Specifications

• Catalog Number: 2097-TB1
• Brand: Allen-Bradley
• Product Type: I/O Breakout Board
• Compatibility: Allen-Bradley Kinetix 300 and Kinetix 350 Servo Drives
• Connection Type: Screw Terminals
• Mounting: Direct connection to the Kinetix drive's I/O connector
• Function: Simplifies I/O wiring for servo drive applications

Applications

• Optimizing I/O wiring for new installations of Kinetix 300/350 servo drive systems.
• Upgrading existing Kinetix 300/350 applications to improve wiring organization and reduce complexity.
• Industrial automation environments where quick installation and simplified maintenance are paramount.
• Machine building and manufacturing, where clean and reliable electrical connections are essential for operational integrity.
• Any application requiring a robust and efficient solution for connecting control signals to Allen-Bradley Kinetix servo drives.
• Projects aiming to reduce material costs and labor time associated with traditional I/O wiring methods.

Why Choose This Model?

• Unmatched Simplicity: The 2097-TB1 is designed from the ground up to make one of the most tedious aspects of automation – I/O wiring – incredibly simple and straightforward.
• Cost-Effective Integration: By eliminating the need for extra cables and separate terminal blocks, this breakout board offers a direct path to cost savings on both materials and labor.
• Enhanced Reliability: Direct screw terminal connections minimize potential points of failure, leading to a more robust and dependable control system.
• Future-Proof Your System: A well-organized and simplified wiring scheme makes future system diagnostics, expansions, and modifications significantly easier and less time-consuming.
• Allen-Bradley Quality: Benefit from the renowned quality and reliability associated with Allen-Bradley industrial automation products, ensuring long-term performance.
• Increased Productivity: Faster installation times and reduced troubleshooting contribute directly to higher operational efficiency and overall project productivity.

Order Now

Elevate your Kinetix 300/350 servo drive applications with the Allen-Bradley 2097-TB1 I/O Breakout Board. Experience unparalleled simplicity in wiring, reduced installation times, and a cleaner, more reliable system. This essential component is IN STOCK and ready to ship, ensuring your projects stay on schedule. Don't let complex wiring hinder your automation goals – choose the 2097-TB1 for a superior solution. Contact DD Parts Solution today to secure your order and benefit from immediate availability and expert support for all your Allen-Bradley Kinetix needs.
