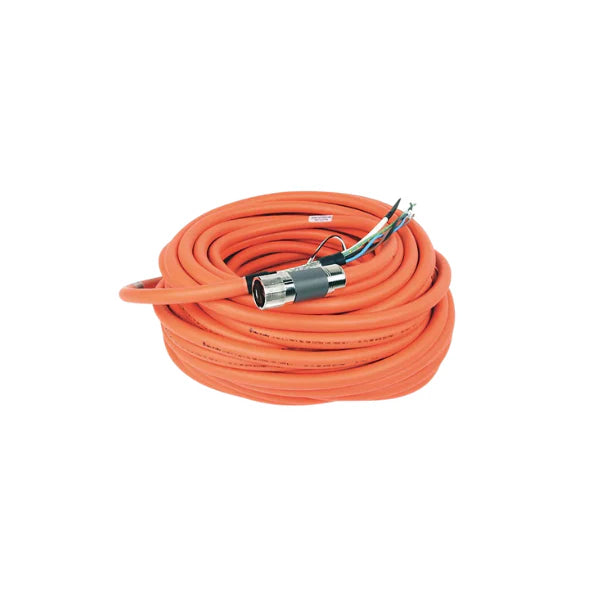

Allen-Bradley 2090-CSBM1DF-14AA30

Overview

The Allen-Bradley 2090-CSBM1DF-14AA30 is a high-performance single cable meticulously engineered for seamless connectivity between Kinetix 5500 servo drives and compatible servo motors. This robust solution significantly streamlines your industrial automation setup by integrating motor power, feedback, and essential brake wires into a single, cohesive assembly. Designed for demanding industrial environments, this non-flex cable boasts a durable TPE (Thermoplastic Elastomer) jacket and 14 AWG conductors, ensuring reliable operation and enhanced longevity. With a generous length of 30 meters, the 2090-CSBM1DF-14AA30 provides ample reach for diverse application requirements, reducing wiring complexity and installation time while maintaining optimal signal integrity and power transmission.

Key Features

• Integrated Single Cable Design: Consolidates motor power, precise feedback, and critical brake wire connections into one efficient cable, drastically simplifying wiring processes and minimizing installation efforts for Kinetix 5500 servo systems.
• Optimized for Kinetix 5500 Series: Specifically designated as a DF cable type, guaranteeing perfect compatibility and peak performance within Allen-Bradley Kinetix 5500 servo drive and motor configurations.
• Durable 14 AWG Conductors: Equipped with 14 American Wire Gauge conductors, providing a robust capacity for current transmission, essential for stable and efficient operation across typical Kinetix 5500 applications.
• Resilient TPE Jacket Construction: Features a premium Thermoplastic Elastomer (TPE) outer jacket, offering exceptional resistance to abrasion, a wide range of chemicals, and extreme temperature fluctuations, ensuring maximum durability in harsh industrial settings.
• Standard Non-Flex Design: Engineered with a standard (non-flex) construction, making it ideally suited for static installations or applications requiring controlled, infrequent flexing, where high continuous flex capabilities are not a primary requirement.
• Integrated Brake Wires: Includes dedicated brake wires within the single cable assembly, providing all necessary connections for the proper functioning of motor braking mechanisms, enhancing safety and control.
• Convenient 30-Meter Length: Supplied in a practical 30-meter length, offering extensive reach to accommodate various industrial layouts and equipment placements without the need for additional extensions or splices.

Technical Specifications

• Product Type: Single Cable / Servo Cable
• Catalog Number: 2090-CSBM1DF-14AA30
• Series: Kinetix 5500
• Cable Type: DF Single Cable
• Conductor Size: 14 AWG
• Jacket Material: TPE (Thermoplastic Elastomer)
• Flexibility: Non-Flex (Standard)
• Length: 30 meters
• Connections: Single Motor Power, Feedback, and Brake Wires

Applications

• Direct connection between Allen-Bradley Kinetix 5500 Servo Drives and Servo Motors
• Industrial Automation Systems requiring precise motion control
• Robotic applications demanding reliable power and feedback
• Packaging Machinery where space and wiring complexity are critical factors
• Material Handling equipment needing robust and efficient cabling solutions

Why Choose This Model?

• Unmatched Simplification: The all-in-one design of the 2090-CSBM1DF-14AA30 drastically cuts down on wiring complexity and installation time, directly translating into reduced labor costs and faster system deployment.
• Superior Durability and Reliability: Constructed with a high-grade TPE jacket and robust 14 AWG conductors, this cable is built to withstand the harshest industrial conditions, ensuring long-term operational stability and minimizing maintenance.
• Guaranteed Compatibility and Performance: As a genuine Allen-Bradley product specifically designed for the Kinetix 5500 series, you are assured of perfect compatibility, optimal signal integrity, and peak performance for your servo systems.
• Enhanced Operational Efficiency: By providing a reliable and integrated connection, this cable helps to prevent common wiring errors and signal degradation, contributing to the overall efficiency and precision of your automation processes.
• Trusted Allen-Bradley Quality: Invest in the peace of mind that comes with Allen-Bradley's reputation for manufacturing high-quality, dependable industrial automation components engineered for excellence.

Order Now

Equip your Kinetix 5500 servo system with the industry-leading connectivity it deserves. The Allen-Bradley 2090-CSBM1DF-14AA30 single cable is available and ready to optimize your operations. Experience reduced installation time, superior reliability, and the consistent performance that only genuine Allen-Bradley components can deliver. For inquiries or to place your order, contact us today and ensure your industrial applications achieve their full potential.
