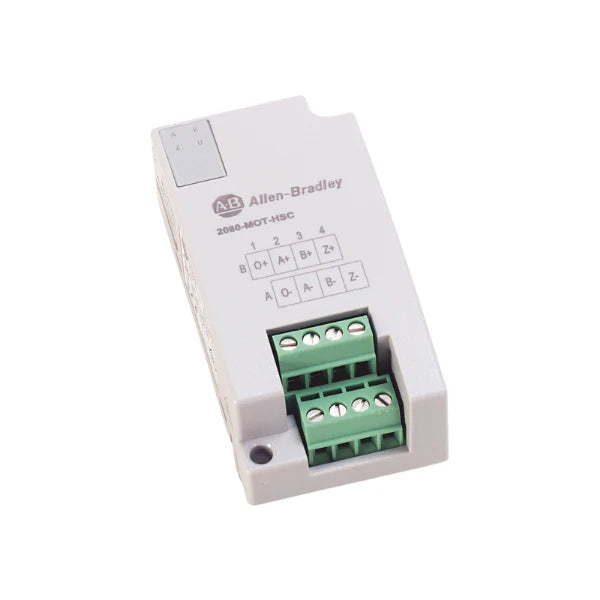

Allen-Bradley 2080-MOT-HSC

Overview

The Allen-Bradley 2080-MOT-HSC is an advanced Micro800 High-Speed Counter Module engineered to deliver unparalleled precision and reliability in demanding industrial automation applications. This robust module is specifically designed to seamlessly integrate with Allen-Bradley Micro800 series controllers, empowering systems with critical high-speed counting and motion control capabilities. Whether your application demands precise position tracking, dynamic speed monitoring, or rapid event counting, the 2080-MOT-HSC provides the accuracy and performance essential for modern industrial processes. Its sophisticated design ensures compatibility with a broad array of industrial sensors, encoders, and other high-speed input devices, facilitating swift and accurate data processing for optimized operational efficiency. Elevate your automation infrastructure with the proven quality and performance of Allen-Bradley.

Key Features

• Dual Independent High-Speed Counting Channels: Benefit from two distinct 100 kHz counting channels, offering exceptional flexibility for managing multiple motion control tasks or collecting diverse data streams simultaneously.
• Blazing Fast 100 kHz Counting Speed: Achieve superior performance in high-speed applications, ensuring critical data is captured and processed instantaneously for real-time control and feedback.
• Effortless DIN Rail Mounting: Designed for rapid and secure installation, this module easily mounts on standard DIN rails, significantly reducing setup time and simplifying system integration.
• Compact and Space-Saving Design: Its optimized footprint allows for seamless integration within existing Micro800 series controller systems, maximizing panel space and promoting modularity.
• Broad Input/Output Device Compatibility: Connect with a wide array of industrial sensors, rotary encoders, proximity sensors, and other high-speed devices, providing extensive application versatility.
• Robust Industrial-Grade Construction: Built to withstand challenging industrial environments, ensuring long-term reliability and consistent performance in extreme temperature ranges and demanding conditions.

Technical Specifications

• Model Number: 2080-MOT-HSC
• Series Compatibility: Allen-Bradley Micro800 Series Controllers
• Module Type: High-Speed Counter (HSC) Module
• Input Voltage: 24V DC
• Counter Channels: 2 independent, high-speed counting channels
• Maximum Counting Speed: 100 kHz
• Mounting Type: DIN Rail Mountable
• Dimensions: Compact design for harmonious integration
• Operating Temperature: -20°C to 55°C (-4°F to 131°F)
• Certifications: UL Listed, CE Compliant, CSA Certified
• Backplane Current Draw: 70mA at 5V DC

Applications

• Precision Motion Control Systems: Ideal for accurately controlling stepper motors, servo motors, and other high-speed actuators in automated machinery.
• Accurate Position Tracking: Enables real-time, high-resolution position monitoring in robotics, assembly lines, and material handling systems.
• Dynamic Speed Monitoring: Essential for applications requiring precise measurement and control of rotational speed in motors, conveyors, and rotating equipment.
• High-Speed Product Counting: Perfect for packaging lines, production counters, and other applications demanding rapid and accurate item counting.
• Industrial Automation and Data Acquisition: Facilitates rapid data collection and processing for advanced automation systems and intelligent control.
• Event Counting and Frequency Measurement: Delivers precise counting of events and accurate measurement of signal frequencies in various industrial processes.

Why Choose This Model?

• Unmatched Precision for Critical Applications: The 2080-MOT-HSC ensures exceptional accuracy in counting and motion control, vital for applications where even minor deviations can impact quality and efficiency.
• Seamless Integration with Micro800 Series: Designed specifically for the Allen-Bradley Micro800 platform, guaranteeing effortless compatibility and streamlined system expansion without complex configuration.
• Enhanced System Performance: With its 100 kHz counting speed and dual channels, this module significantly boosts the responsiveness and throughput of your automation systems.
• Reliability from a Trusted Brand: Allen-Bradley is synonymous with industrial quality and durability. Invest in a module that’s built to perform consistently in harsh industrial environments.
• Simplified Installation and Maintenance: The DIN rail mountable design and compact form factor make installation straightforward, while robust construction minimizes maintenance requirements.

Order Now

Elevate your industrial automation capabilities with the Allen-Bradley 2080-MOT-HSC Micro800 High-Speed Counter Module. Experience the difference that precision, speed, and reliability can make in your critical applications. Add to cart today or contact our sales team for further information and assistance with your specific project requirements.
