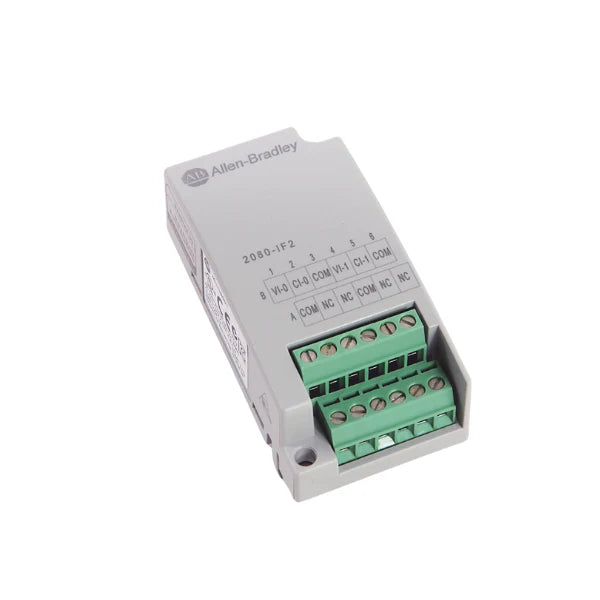

Allen-Bradley 2080-IF2

Overview

The Allen-Bradley 2080-IF2 is an essential plug-in expansion module designed to seamlessly integrate with your Micro830 Programmable Logic Controller (PLC) system. This compact yet powerful module significantly enhances your PLC's capabilities by providing two non-isolated analog input channels. It allows your Micro830 controller to accurately process real-world analog signals originating from a variety of sensors and measuring devices, such as those used for temperature, pressure, level, and flow. By converting these analog signals into digital values with 12-bit resolution, the 2080-IF2 empowers your industrial automation system with precise control and monitoring, facilitating more sophisticated and responsive operations. Its straightforward plug-in design ensures quick and hassle-free installation, making it an ideal solution for expanding the I/O capacity of your Micro830 PLC when analog signal acquisition is paramount.

Key Features

• Dual Analog Input Channels: Provides two dedicated inputs for comprehensive analog signal acquisition.
• Versatile Signal Support: Accepts both standard 0-10V DC voltage and 0-20mA current input signals, catering to diverse sensor types.
• High 12-bit Resolution: Ensures accurate conversion of analog inputs to digital data for precise control and measurement.
• Effortless Plug-in Installation: Designed for direct, tool-free integration into Micro830 series PLCs, minimizing setup time.
• Dedicated Micro830 Compatibility: Optimized for seamless operation and communication exclusively within Allen-Bradley Micro830 systems.
• Expanded I/O Capability: Cost-effectively increases the analog input capacity of your Micro830 PLC, enhancing system functionality.

Technical Specifications

• Number of Channels: 2
• Input Type: Analog (Voltage and Current)
• Input Voltage Range: 0-10 VDC
• Input Current Range: 0-20 mA
• Resolution: 12 bits
• Accuracy: Consult the official Allen-Bradley datasheet for specific values.
• Conversion Time: Consult the official Allen-Bradley datasheet.
• Isolation: Non-isolated
• Compatibility: Allen-Bradley Micro830 PLCs only
• Operating Temperature: Consult the official Allen-Bradley datasheet.
• Relative Humidity: Consult the official Allen-Bradley datasheet.

Applications

• Precision Level Monitoring: Accurately reads signals from analog level transmitters in tanks and vessels.
• Industrial Temperature Control: Connects to various temperature sensors providing analog outputs for process regulation.
• Real-time Pressure Measurement: Integrates with analog pressure transmitters for monitoring system pressures.
• Automated Flow Control Systems: Interfaces with flow meters delivering analog signals for precise liquid or gas flow management.
• General Analog Data Acquisition: Suitable for any industrial application requiring the reliable reading of diverse analog signals.
• Environmental Monitoring: Ideal for integrating sensors that monitor environmental parameters like humidity or light intensity.

Why Choose This Model?

• Seamless Micro830 Integration: Specifically engineered for perfect compatibility and easy integration with your existing Micro830 PLC infrastructure.
• Cost-Effective I/O Expansion: Provides an economical and efficient way to add critical analog input capabilities without extensive system overhaul.
• Reliable Performance: Backed by Allen-Bradley's reputation for industrial-grade quality and dependable operation in demanding environments.
• Simplified Configuration: Easily configured and programmed using Rockwell Automation's Connected Components Workbench (CCW) software for streamlined setup.
• Enhanced Control Precision: 12-bit resolution ensures that your control system receives accurate data for more precise and responsive actions.

Order Now

Elevate the capabilities of your Micro830 PLC system with the Allen-Bradley 2080-IF2 Analog Input Module. Experience expanded I/O, precise measurement, and seamless integration for your critical industrial applications. For detailed technical specifications, wiring diagrams, and installation guidelines, always refer to the official Rockwell Automation datasheet. Purchase your 2080-IF2 today and optimize your automation processes!
