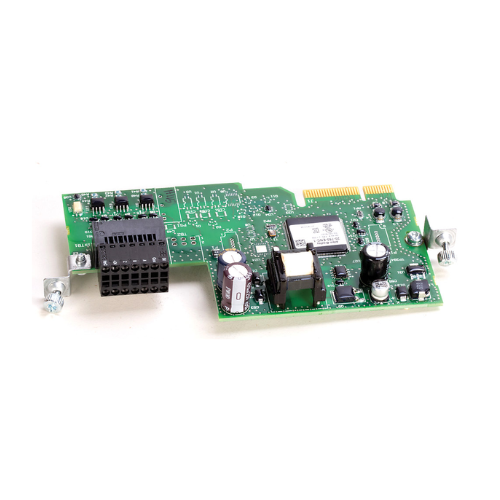

Allen-Bradley 20-750-ENC-1

Overview

The Allen-Bradley 20-750-ENC-1 is a crucial incremental encoder input module meticulously engineered for seamless integration with PowerFlex 750-Series AC drives, encompassing both PowerFlex 753 and PowerFlex 755 models. This high-performance module is designed to accept 5V DC differential or single-ended encoder signals, delivering unparalleled accuracy in speed and position feedback essential for sophisticated closed-loop motor control applications. By providing precise data, the 20-750-ENC-1 empowers industrial systems to achieve superior motion control and position regulation, making it an indispensable component for environments where exact encoder feedback is paramount, such as in advanced conveying, intricate winding, precise packaging, and high-fidelity printing systems. Its robust design and plug-and-play functionality ensure reliable performance and straightforward implementation within diverse industrial automation setups.

Key Features

• Single Incremental Encoder Input: Dedicated input for precise and reliable encoder signal processing.
• Versatile Voltage Support: Compatible with 5V DC differential or single-ended encoder signals, offering broad compatibility.
• Optimized for PowerFlex 750 Series: Specifically designed for seamless integration with PowerFlex 753 and PowerFlex 755 drives.
• Enhanced Control Precision: Delivers accurate speed and position feedback, significantly improving closed-loop system performance.
• Flexible Mounting Options: Supports both DIN Rail and panel mounting, allowing direct installation within the drive.
• Effortless Configuration: Features plug-and-play installation and easy configuration via Studio 5000 or DriveTools SP.
• Ideal for Closed-Loop Control: Perfect for applications requiring high-accuracy motion control and position regulation.

Technical Specifications

• Catalog Number: 20-750-ENC-1
• Encoder Type: Incremental
• Input Voltage: 5V DC
• Signal Type: Differential (RS-422) or single-ended
• Mounting: Directly into PowerFlex 750 drive option slot
• Compatibility: PowerFlex 753, PowerFlex 755 AC Drives
• Operating Temperature: 0°C to +50°C (32°F to 122°F)
• Configuration Tools: Studio 5000, DriveTools SP software
• Use Case: Advanced closed-loop vector control and precision position regulation
• Brand: Allen-Bradley
• Product Type: Board (Option Module)

Applications

• Winding and Unwinding Machines: Ensures precise material tension and positioning.
• Printing and Packaging Lines: Facilitates accurate registration and high-speed operation.
• Material Handling and Conveyors: Optimizes speed control and synchronized movement.
• Textile, Automotive, and Food Processing: Supports a wide range of industrial automation tasks requiring precise motion.
• High-Precision Motion Control Systems: Essential for robotics and other applications demanding exceptional accuracy.
• Automated Assembly Lines: Provides critical feedback for coordinated robotic and mechanical movements.

Why Choose This Model?

• Unmatched Reliability: Guarantees consistent and accurate feedback for all encoder-based control systems, minimizing downtime.
• Seamless Integration: Designed for straightforward and efficient integration with your existing PowerFlex 750 drives, reducing installation complexity and time.
• Superior Performance: Significantly enhances the accuracy, responsiveness, and overall performance of closed-loop systems, leading to optimized operational efficiency.
• Robust Industrial Design: Built to withstand demanding industrial environments, ensuring long-term durability and dependable operation.
• Rockwell Automation Quality: As an Allen-Bradley product, you benefit from the renowned quality, reliability, and support of Rockwell Automation.
• Global Availability with Fast Shipping: Readily available and supported by fast global shipping options, ensuring quick access to essential components for your operations.

Order Now

The Allen-Bradley 20-750-ENC-1 incremental encoder input module is available and ready for global shipping. Upgrade your PowerFlex 750-Series drives with this essential component to achieve unparalleled precision and control in your industrial applications. Contact us today to secure your module and enhance your system's performance.
