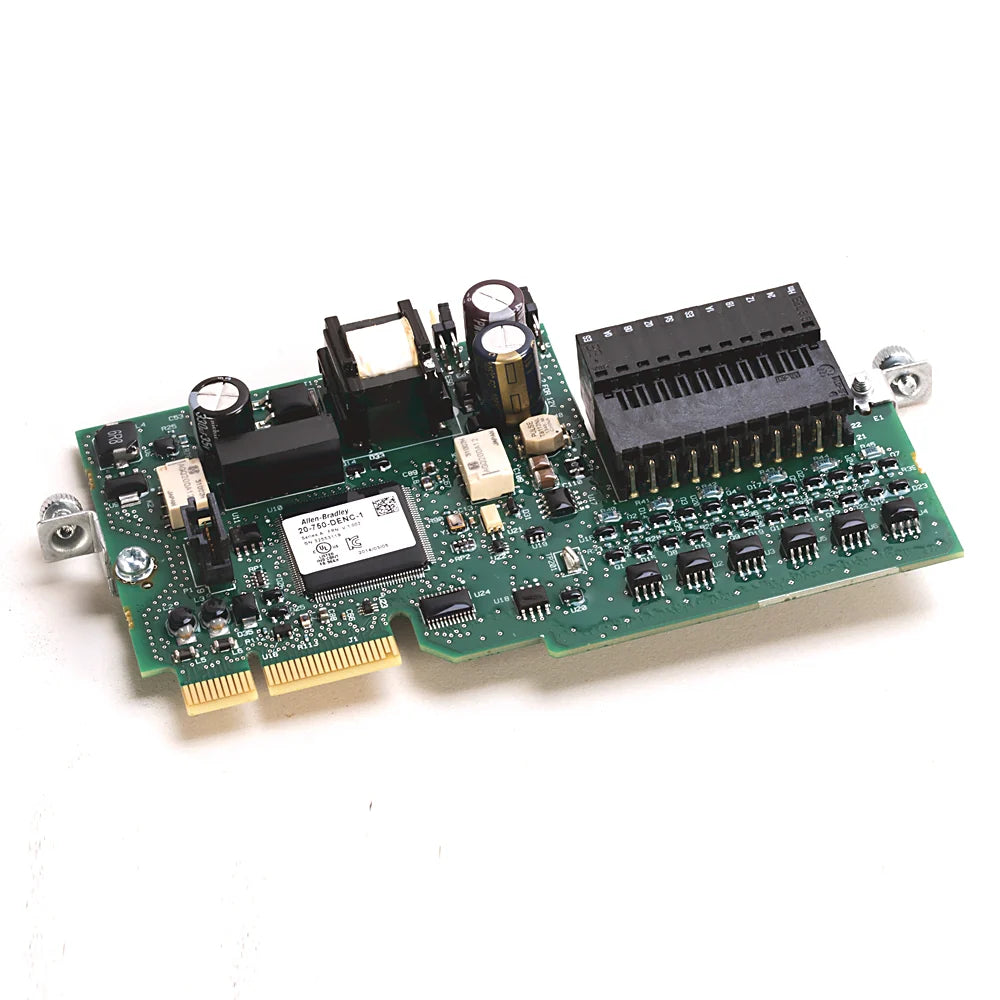

Allen-Bradley 20-750-DENC-1

Overview

Unlock unparalleled motor control accuracy and performance with the Allen-Bradley 20-750-DENC-1 Incremental Encoder Feedback Module. Specifically engineered for seamless integration with the PowerFlex 750 series drives, this advanced module provides the critical feedback needed for precise speed and position control in a wide array of industrial applications. Whether you're optimizing material handling, enhancing robotic precision, or perfecting high-speed packaging, the 20-750-DENC-1 ensures your operations run with exceptional efficiency and reliability.

Designed for demanding environments, this module boasts a robust construction, flexible input options for incremental encoders (5V or 12V), and the capacity to handle high-frequency signals up to 300 kHz. Its compact design facilitates easy installation within existing drive enclosures, making it an ideal upgrade for systems requiring superior responsiveness and repeatability. Experience the next level of industrial automation with Allen-Bradley’s commitment to quality and innovation.

Key Features

• Enhanced Feedback Control: Delivers highly accurate speed and position feedback, critical for sophisticated motor control applications and achieving optimal operational precision.
• Wide PowerFlex 750 Compatibility: Engineered for perfect synergy with PowerFlex 753, PowerFlex 755, and PowerFlex 755T series drives, ensuring straightforward integration and reliable performance within your existing Allen-Bradley ecosystem.
• Flexible Encoder Input Options: Accommodates both 5V and 12V DC incremental encoder signals, offering versatility and adaptability to a variety of sensor types and system configurations.
• High-Speed Signal Handling: Capable of processing signals up to an impressive 300 kHz, making it suitable for applications requiring rapid and dynamic motor control.
• Robust Industrial Design: Built to withstand challenging industrial conditions, featuring a wide operating temperature range (-20°C to 60°C) for consistent performance in diverse environments.
• Differential or Single-Ended Inputs: Supports A, B, and Z channels with both differential and single-ended input capabilities, providing flexibility in wiring and noise immunity.
• Globally Certified: UL, CE, and RoHS compliant, ensuring adherence to international safety, health, and environmental standards, and facilitating global deployment.

Technical Specifications

• Model Number: 20-750-DENC-1
• Compatible Drives: PowerFlex 753, PowerFlex 755, and PowerFlex 755T series
• Encoder Type: Incremental Encoder
• Input Voltage: 5V or 12V DC (switchable)
• Frequency Range: Up to 300 kHz
• Supported Signals: A, B, Z channels with differential or single-ended inputs
• Operating Temperature: -20°C to 60°C (-4°F to 140°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Dimensions: Compact design for easy integration within the drive enclosure
• Certification: UL, CE, and RoHS compliant

Applications

• Material Handling Systems: Achieve highly precise conveyor belt speed control and accurate positioning for automated warehousing and logistics.
• Robotics and Automation: Ensure exact motor control for delicate and articulated movements in robotic arms, promoting greater accuracy and repeatability in manufacturing processes.
• Packaging Machinery: Facilitate perfectly synchronized motion for high-speed filling, sealing, and labeling operations, minimizing waste and maximizing throughput.
• Cranes and Hoists: Provide reliable and immediate feedback for safe and precise load positioning, enhancing operational safety and efficiency in heavy-duty lifting.
• Printing and Textile Machines: Enable high-resolution control over material feed and print head positioning, crucial for achieving superior quality and intricate designs.
• Machine Tool Control: Optimize the precision of cutting, milling, and grinding operations by ensuring accurate feedback for stepper and servo motors.

Why Choose This Model?

• Unmatched Precision: The 20-750-DENC-1 provides the granular feedback necessary for the most demanding applications, translating directly into improved product quality and reduced operational errors.
• Seamless Integration: Designed specifically for the PowerFlex 750 family, you can count on hassle-free installation and immediate compatibility, minimizing downtime and integration complexities.
• Future-Proof Flexibility: With support for various encoder types and input voltages, this module adapts to evolving system requirements and helps safeguard your investment.
• Reliability in Harsh Environments: Allen-Bradley’s commitment to robust industrial design ensures this module performs consistently, even under challenging temperature and operational conditions.
• Enhanced Productivity: By enabling greater control accuracy, you can increase machine throughput, reduce material waste, and ultimately boost your overall production efficiency.

Order Now

Elevate your industrial automation capabilities with the Allen-Bradley 20-750-DENC-1 Incremental Encoder Feedback Module. Upgrade your PowerFlex 750 drives today and experience the difference that superior precision and reliability can make. For detailed pricing and availability, or to speak with an expert about your specific application needs, contact us now. Invest in the future of your motor control with Allen-Bradley.
