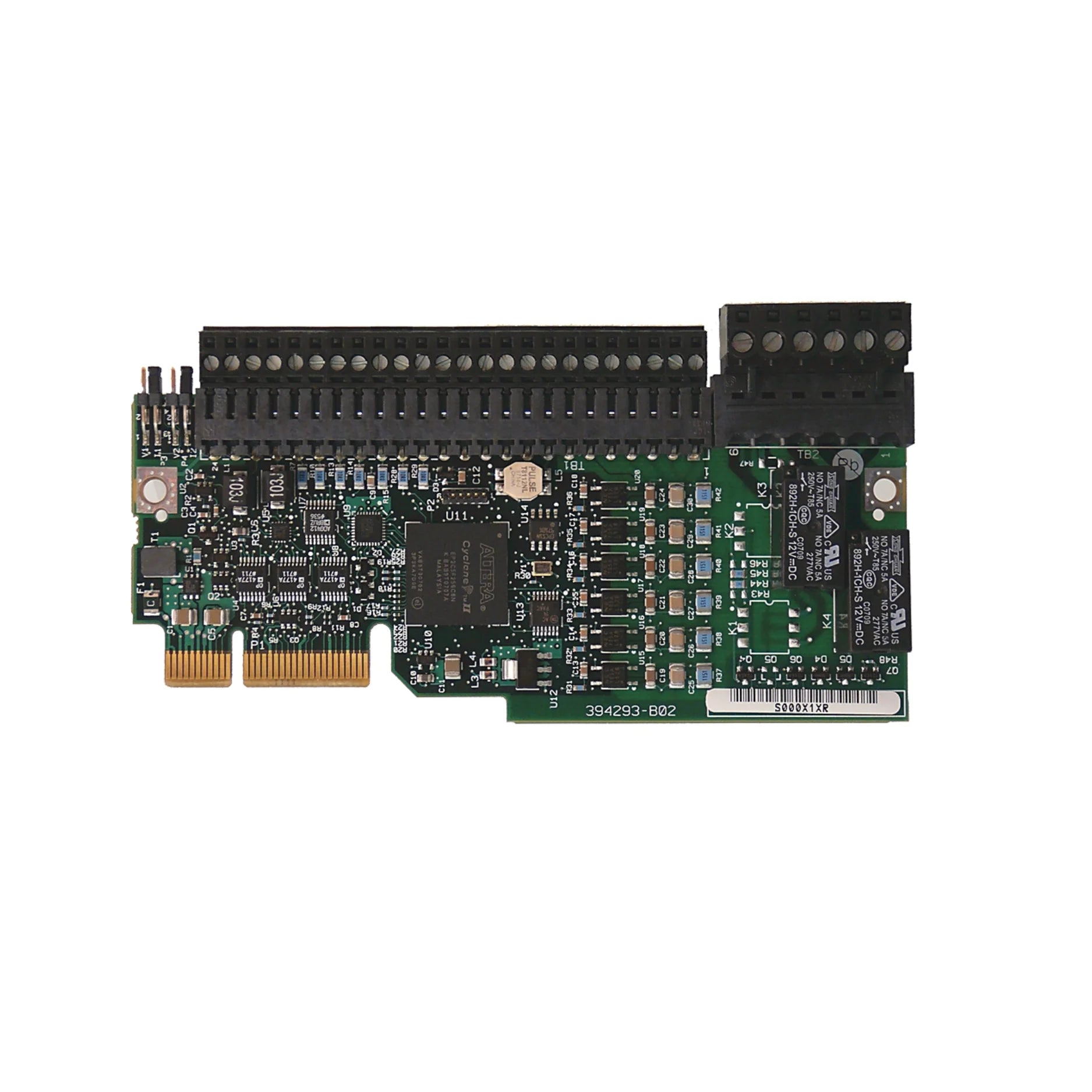

Allen-Bradley 20-750-2262C-2R

Overview

Unlock enhanced control and flexibility for your PowerFlex 750-Series AC drives with the Allen-Bradley 20-750-2262C-2R I/O Module. This robust 24V I/O module delivers a comprehensive blend of analog, digital, and relay I/O capabilities, enabling seamless local signal interfacing directly within your motor control system. By integrating I/O functionality directly into the drive, the 20-750-2262C-2R significantly reduces the need for external wiring, streamlining installation and minimizing cabinet space. Its rugged construction and integrated diagnostic features ensure reliable operation and simplify both commissioning and ongoing maintenance, making it an ideal choice for expanding control in demanding industrial applications such as manufacturing lines, material handling systems, and advanced process automation setups.

Key Features

• Integrated I/O Solution: Combines analog, digital, and relay I/O within a single module.
• Flexible Analog Connectivity: 2 configurable channels for 0-10V or 4-20mA input and output.
• High-Density Digital Control: 6 robust 24V DC digital input channels.
• Reliable Relay Outputs: 2 isolated Form C contacts for versatile control applications.
• Direct PowerFlex 750 Integration: Designed for seamless plug-in compatibility, saving space and cost.
• 24V DC Powered: Optimized for standard low-voltage control system compatibility.
• Advanced Onboard Diagnostics: Facilitates quick troubleshooting and reduces downtime.

Technical Specifications

• Catalog Number: 20-750-2262C-2R
• Series: PowerFlex 750
• Analog Inputs: 2 (voltage/current configurable)
• Analog Outputs: 2 (voltage/current configurable)
• Digital Inputs: 6 (24V DC)
• Relay Outputs: 2 (Form C, 2A @ 30V DC / 250V AC)
• Power Supply: 24V DC
• Mounting: Plugs directly into PowerFlex 750 drives
• Operating Temperature: 0°C to +50°C
• Weight: Approximately 250 g

Applications

• Precision Motor Control Systems: Provides local analog and digital I/O for sophisticated drive-level control and feedback.
• Automated Manufacturing Lines: Enhances control capabilities for various machinery and processes, improving efficiency.
• Material Handling Equipment: Ideal for integrating sensors and actuators directly with drive systems in conveyor and robotics applications.
• Custom OEM Machinery: Offers a compact and versatile solution for embedding control logic into machinery featuring PowerFlex drives.
• Process Automation: Delivers robust analog signal processing for feedback and control in diverse industrial processes.

Why Choose This Model?

• Unmatched Versatility: Consolidate analog, digital, and relay I/O into a single, high-performance module, simplifying system architecture.
• Seamless Integration: Specifically engineered for direct compatibility with Allen-Bradley PowerFlex 750 drives, ensuring optimal performance and easy installation.
• Space and Cost Efficient: Reduces the need for external I/O blocks, minimizing cabinet footprint and overall wiring complexity, leading to cost savings.
• Enhanced Reliability: Benefit from Allen-Bradley's renowned quality, rugged design, and integrated diagnostics for consistent and dependable operation.
• Global Availability & Support: Access this critical component with fast international delivery, backed by a commitment to compatibility and customer satisfaction.

Order Now

Upgrade your PowerFlex 750 drive system today with the Allen-Bradley 20-750-2262C-2R I/O Module. Experience superior control, reduced wiring, and enhanced system diagnostics. This essential component is available for fast international delivery. Contact us to confirm compatibility with your specific PowerFlex 753 or 755 drive configuration and to inquire about optimal integration for your industrial automation needs. Invest in reliability and performance with Allen-Bradley.
