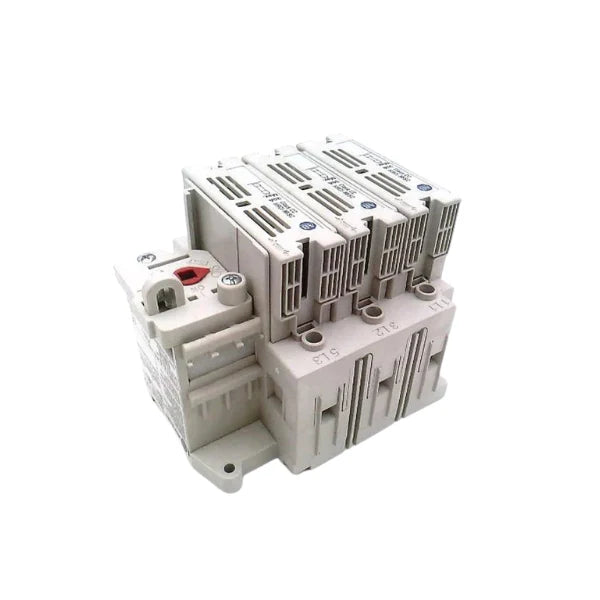

Allen-Bradley 194R-C30-1753

Overview

The Allen-Bradley 194R-C30-1753 is a robust and reliable fused disconnect switch engineered to provide critical circuit protection and disconnection capabilities for demanding industrial control systems. Designed with an open-style construction for seamless integration into a wide array of control panels, this switch ensures both safety and operational efficiency. With its impressive 30A switch ampere rating, 3-pole configuration, and stringent compliance with UL Class CC and CSA Type HRCI-MISC standards, the 194R-C30-1753 stands as a cornerstone for safeguarding your vital electrical infrastructure against overloads and short circuits.

Key Features

• Integrated Fused Disconnect Functionality: Provides essential protection against overcurrents and short circuits, allowing for safe and complete electrical isolation when required.
• Optimized 30A Ampere Rating: Perfectly suited for small to medium-duty industrial applications, ensuring ample capacity and reliable performance.
• Versatile 3-Pole Design: Guarantees comprehensive disconnection across all three phases in three-phase systems, delivering balanced and secure circuit isolation.
• UL Class CC Certified Protection: Meets rigorous Underwriters Laboratories Class CC standards, signifying high-performance protection and adherence to crucial safety regulations.
• CSA Type HRCI-MISC Compliance: Certified to CSA Type HRCI-MISC specifications, facilitating broad industrial application and robust protection against fault currents.
• Open Style Construction for Flexibility: Simplifies installation, maintenance, and allows for adaptable integration into diverse control panel designs.
• Wide Operating Temperature Range: Functions efficiently from -20°C to +60°C (-4°F to +140°F), ensuring reliability in various environmental conditions.

Technical Specifications

• Model Number: 194R-C30-1753
• Type: Fused Disconnect Switch
• Number of Poles: 3
• Switch Ampere Rating: 30A
• Fuse Type: UL Class CC
• Certifications: UL Class CC, CSA Type HRCI-MISC
• Voltage Rating: 600V AC / 250V DC
• Temperature Rating: -20°C to +60°C (-4°F to +140°F)
• Mounting Type: Open Style
• Enclosure Type: Open Style
• Terminals: Screw Terminals
• Dimensions: 4.7 x 3.9 x 3.3 inches (119 x 99 x 84mm)

Applications

• Industrial Control Panels: Essential for motor control centers, distribution boards, and machine control systems requiring dependable circuit disconnection and overcurrent protection.
• Critical Overload & Short-Circuit Protection: Safeguards motors, electrical circuits, and various industrial equipment, preventing costly damage from electrical faults.
• High-Current Circuit Switching: Provides secure and efficient switching and disconnection for high-current applications within demanding industrial environments.
• Automation Systems Integration: A vital component for modern automation infrastructures, ensuring safe circuit isolation during maintenance or in the event of a fault condition.
• HVAC and Pumping Systems: Ideal for protecting and isolating electrical components in heating, ventilation, air conditioning, and pumping applications.
• Renewable Energy Installations: Can be employed in solar or wind power systems for critical circuit protection and maintenance procedures.

Why Choose This Model?

• Uncompromised Safety: The fused disconnect mechanism, combined with UL Class CC and CSA certifications, offers a superior level of protection for personnel and equipment.
• Proven Allen-Bradley Reliability: Benefit from the trusted quality and engineering excellence synonymous with the Allen-Bradley brand, ensuring long-term performance.
• Effortless Integration: The open-style design provides maximum flexibility for integrating into new or existing control panel configurations.
• Versatile Performance: Capable of handling both AC and DC voltage applications with a robust temperature rating, making it suitable for diverse industrial settings.
• Cost-Effective Protection: A smart investment in preventing downtime and costly repairs by effectively mitigating electrical fault risks.
• Compliance and Peace of Mind: Meeting stringent industry standards means you can deploy this switch with confidence, knowing it adheres to the highest safety and performance benchmarks.

Order Now

Elevate the safety and performance of your industrial electrical systems with the Allen-Bradley 194R-C30-1753 Fused Disconnect Switch. Its robust construction, comprehensive protection features, and renowned reliability make it an indispensable component for any demanding application. Don't compromise on safety or efficiency – secure your critical operations today. Add the Allen-Bradley 194R-C30-1753 to your cart now and experience unparalleled protection and peace of mind.
