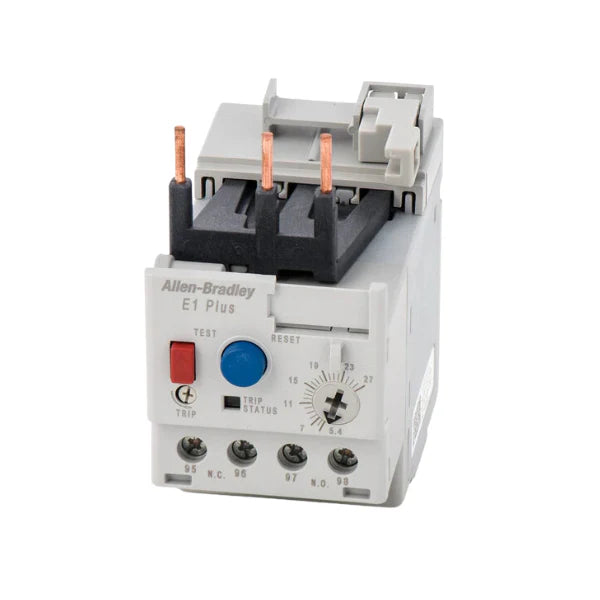

Allen Bradley 193-ED1EB

Overview

Protect your vital industrial motors and equipment from damaging overload conditions with the Allen-Bradley 193-ED1EB E1 Plus Solid State Overload Relay. This advanced overload relay is engineered for superior performance and unwavering reliability, making it an essential component for safeguarding electrical systems. Designed to seamlessly integrate with Bulletin 100-C09 to 100-C23 contactors, the 193-ED1EB offers a robust solution for a wide range of industrial applications. Its solid-state design ensures enhanced durability and precision, while the adjustable current range of 5.4-27A provides versatile protection for three-phase systems operating at up to 600V AC. Experience peace of mind with a fixed trip class 10, guaranteeing rapid response to overcurrents and minimizing downtime thanks to its convenient manual reset functionality.

Key Features

• Wide Adjustment Range: Offers a current adjustment range of 5.4 to 27 Amperes, providing flexible and precise protection for a diverse array of three-phase industrial motors.
• Fixed Trip Class 10: Ensures superior motor protection by providing a rapid trip response to overload conditions within a pre-defined and reliable timeframe.
• Manual Reset Functionality: Allows for quick and straightforward manual resetting of the relay after an overload event, thereby reducing operational downtime and improving efficiency.
• Robust Solid-State Design: Engineered with solid-state technology for enhanced durability, extended operational life, and consistent, reliable performance in demanding industrial environments.
• Seamless Contactor Compatibility: Specifically designed for direct mounting and seamless integration with Bulletin 100-C09 through 100-C23 contactors, simplifying installation and wiring.
• High Voltage Capacity: Capable of handling electrical systems up to 600V AC max, making it suitable for a broad spectrum of high-voltage industrial applications.
• Optimized Motor Protection: Provides reliable and efficient safeguarding for motors against thermal overload, preventing costly damage and extending equipment lifespan.

Technical Specifications

• Model: Allen-Bradley 193-ED1EB
• Type: E1 Plus Solid State Overload Relay
• Current Adjustment Range: 5.4 - 27A (for 3-phase motors)
• Voltage Rating: 600V AC max
• Trip Class: Fixed Class 10
• Reset Type: Manual Reset
• For Use With: Bulletin 100-C09 to 100-C23 Contactors
• Application: Motor Overload Protection in industrial settings
• Mounting Type: Directly mounted to contactor
• Dimensions: Compact design for ease of installation
• Weight: Lightweight for easy handling and installation

Applications

• Industrial Control Systems: Essential for protecting motors within automated control systems, ensuring operational continuity and equipment longevity.
• Pumps and Conveyors: Ideal for safeguarding motors in critical machinery such as pumps, conveyor belts, and material handling systems where reliable operation is paramount.
• HVAC Systems: Provides robust overload protection for motors used in heating, ventilation, and air conditioning units within commercial and industrial facilities.
• Manufacturing Equipment: Integral for protecting a wide variety of manufacturing machinery, preventing costly downtime due to motor failures.
• Electrical Installations: Ensures comprehensive overload protection for various equipment within electrical installations operating at voltages up to 600V AC.

Why Choose This Model?

• Unrivaled Motor Protection: The Allen-Bradley 193-ED1EB delivers superior motor protection, actively preventing damage from overcurrents and extending the operational life of your valuable equipment.
• Enhanced Reliability: Its solid-state design, coupled with a fixed Class 10 trip, ensures consistent and highly dependable performance in the most demanding industrial settings.
• Simplified Integration: Designed for direct compatibility with common Bulletin contactors, this relay offers effortless integration into existing and new industrial electrical systems.
• Reduced Downtime: With its prompt overload detection and easy manual reset, the 193-ED1EB helps minimize costly operational interruptions, keeping your processes running smoothly.
• Trusted Brand Quality: As an Allen-Bradley product, you benefit from a legacy of quality, innovation, and industry-leading performance, ensuring a wise investment for your industrial needs.

Order Now

Invest in the robust protection your industrial motors deserve. Order the Allen-Bradley 193-ED1EB E1 Plus Solid State Overload Relay today and ensure the enduring performance and safety of your critical equipment. Contact us for competitive pricing and expert support.
