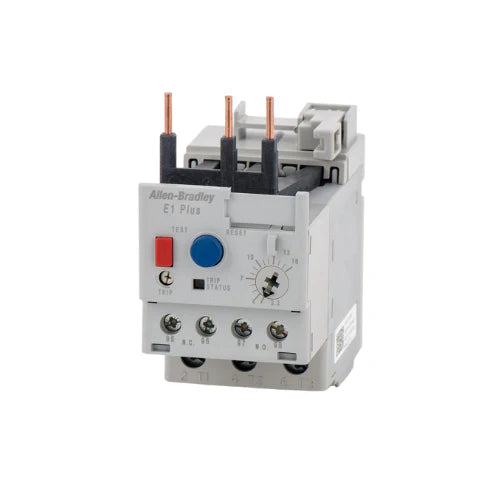

Allen-Bradley 193-ED1DB

Overview

The Allen-Bradley 193-ED1DB is a high-performance solid-state overload relay from the superior Bulletin 193-ED E1 Plus series, meticulously engineered to provide exceptional and robust overload protection for three-phase AC motors. This advanced device ensures the longevity and efficient operation of your critical motor-driven systems by offering precise and reliable monitoring. With an adjustable current range spanning from 3.2 to 16 Amps, the 193-ED1DB provides versatile application across a spectrum of motor sizes. It features a fixed Class 10 trip characteristic, guaranteeing a rapid response to overload conditions, thereby minimizing potential damage and downtime. Designed for seamless integration, this overload relay is compatible with Bulletin 100-C contactors, specifically models 100-C09 to 100-C23, and boasts a maximum voltage rating of 600V AC, making it suitable for a wide array of industrial environments.

Key Features

• Advanced Solid-State Technology: Experience unparalleled accuracy and unwavering reliability in motor protection, offering a significantly extended operational lifespan compared to traditional electromechanical counterparts.
• Broad Adjustable Current Range (3.2-16A): Benefit from exceptional flexibility, allowing precise protection for a diverse array of motor ratings within the specified operational window, optimizing inventory and application versatility.
• Fixed Class 10 Trip Characteristic: Ensure swift and decisive reaction to overload events, providing critical protection for applications where rapid shutdown is paramount to prevent equipment damage and ensure operational safety.
• Manual Reset Functionality: Maintain positive control over your system's status. The manual reset feature requires deliberate operator intervention after a trip, prompting investigation of the overload cause and ensuring safe recommissioning.
• Seamless Contactor Compatibility: Engineered for direct and effortless mounting and complete integration with a wide range of Bulletin 100-C contactors, specifically models 100-C09 through 100-C23, simplifying installation and reducing wiring complexity.
• High Voltage Handling (600V AC Max): Capable of operating reliably in industrial environments with supply voltages up to 600V AC, highlighting its robust design and suitability for demanding applications.
• Bulletin 193-ED E1 Plus Series: Part of a renowned series known for its superior performance, reliability, and advanced protective capabilities, ensuring you invest in a proven and trusted solution.

Technical Specifications

• Product Type: Solid-State Overload Relay
• Catalog Number: 193-ED1DB
• Series/Bulletin: 193-ED E1 Plus
• Number of Phases: 3
• Current Adjustment Range: 3.2 - 16 A
• Trip Class: Fixed Class 10
• Reset Type: Manual
• Maximum Voltage: 600V AC
• Compatible Contactors: 100-C09 to 100-C23

Applications

• Robust motor protection across a wide spectrum of industrial machinery and processes.
• Critical safeguarding of HVAC systems to ensure continuous and efficient climate control.
• Reliable protection for pumps in water treatment, chemical processing, and other fluid handling operations.
• Ensuring the safe and consistent operation of conveyor systems in manufacturing and logistics.
• Protecting sensitive motors within machine tools, contributing to precision and longevity.
• Effective use in various automation and control panels requiring dependable motor overload sensing.

Why Choose This Model?

• Superior Motor Protection: The 193-ED1DB offers advanced solid-state protection, significantly reducing the risk of motor damage and extending the operational life of your equipment.
• Enhanced Operational Reliability: With its precise current sensing and fast trip characteristics, this relay minimizes downtime and ensures consistent motor performance in demanding industrial settings.
• Flexible Application: The adjustable current range and high voltage rating make it a versatile choice for various motor sizes and diverse industrial electrical systems.
• Seamless Integration: Designed for direct compatibility with Allen-Bradley 100-C contactors, it simplifies installation and ensures a cohesive control system architecture.
• Trusted Brand Quality: As an Allen-Bradley product, the 193-ED1DB embodies a legacy of engineering excellence and industrial reliability, giving you peace of mind.
• Cost-Effective Longevity: Investing in a high-quality solid-state relay like the 193-ED1DB can lead to significant long-term savings by preventing costly motor repairs and replacements.
