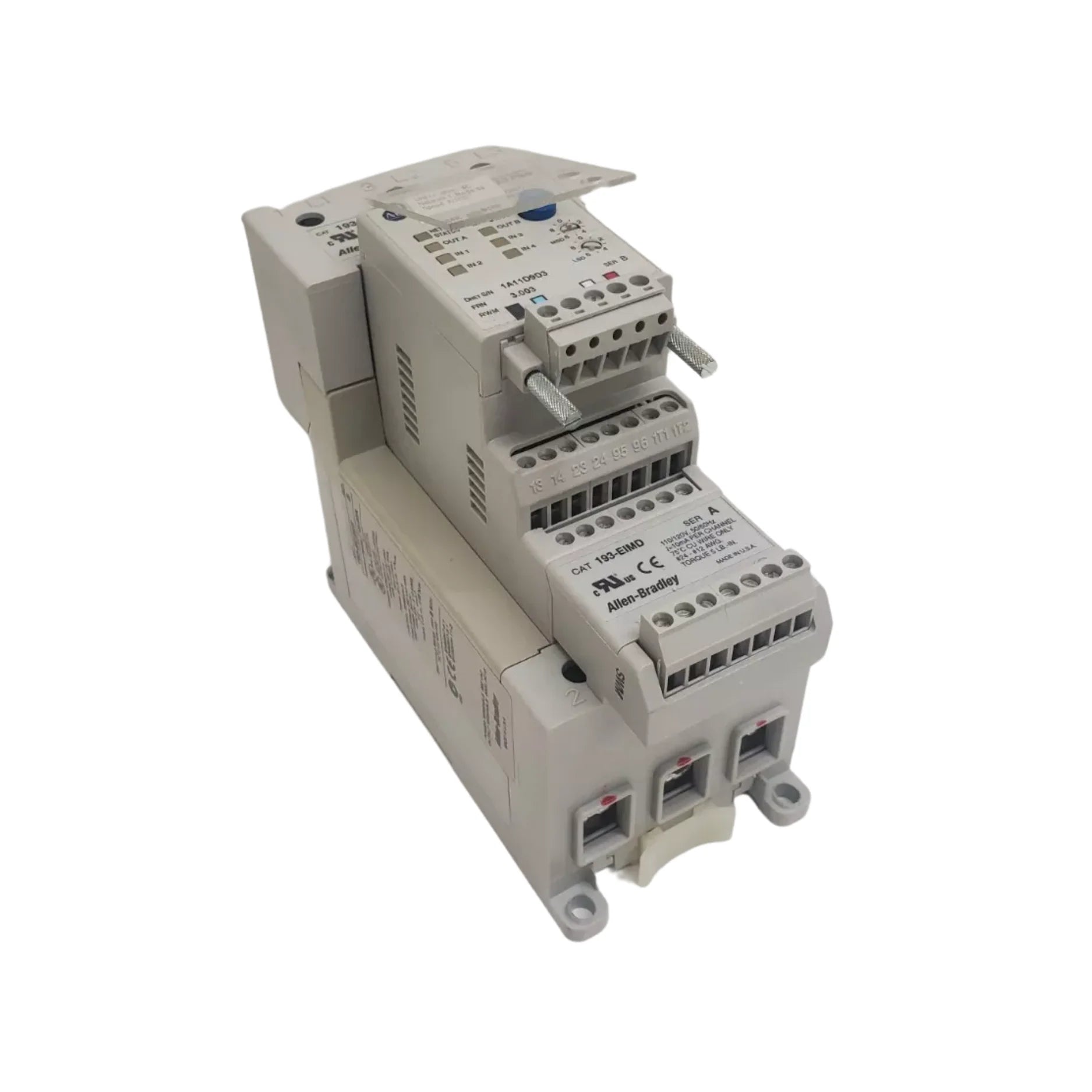

Allen-Bradley 193-EC2EE

Overview

The Allen-Bradley 193-EC2EE E3 Plus Electronic Overload Relay stands as a pinnacle of advanced motor protection technology, meticulously engineered for the rigorous demands of industrial motor applications. This robust solid-state relay delivers comprehensive protection against a multitude of electrical anomalies, including motor overloading, detrimental phase loss, and critical ground faults. With an expansive full load current (FLC) range of 18-90A, the 193-EC2EE ensures dependable performance across a diverse spectrum of motor sizes and operational requirements.

Beyond its core protection capabilities, this E3 Plus relay integrates seamlessly into control systems with its built-in I/O, featuring 4 inputs and 2 outputs. This allows for enhanced control strategies and real-time monitoring. The inclusion of low-level ground fault detection and PTC thermistor monitoring further elevates its protective prowess, guarding against potential equipment damage and maximizing operational uptime. Designed for demanding industrial environments, the 193-EC2EE offers not just protection, but also valuable diagnostic insight, contributing to a more resilient and efficient motor control system.

Key Features

• Advanced Solid-State Motor Protection: Safeguards motors from overcurrent, phase loss, and ground faults, significantly extending motor lifespan and reducing maintenance costs.
• Wide Full Load Current Range (18-90A): Offers versatile compatibility with a broad array of motor applications, ensuring precise and reliable protection across various industrial setups.
• Integrated I/O (4 Inputs & 2 Outputs): Facilitates sophisticated control and monitoring capabilities, enabling seamless integration into existing automation architectures and improved system diagnostics.
• Low-Level Ground Fault Protection: Detects and mitigates even minor ground faults swiftly, preventing escalating damage to equipment and enhancing personnel safety.
• PTC Thermistor Monitoring: Provides superior thermal protection for motors, preventing overheating-related failures and ensuring optimal operational temperatures.
• Modular & Expandable Design: Engineered for compatibility with other Rockwell Automation control systems, allowing for future expansion and flexible system integration.
• UL, CE, RoHS Certifications: Guarantees adherence to stringent international safety and environmental standards, offering peace of mind and regulatory compliance.

Technical Specifications

• Model: 193-EC2EE
• Series: E3 Plus Electronic Overload Relay
• Full Load Current Range: 18-90A
• Protection Features: Overload, Phase Loss, Ground Fault, Short Circuit
• I/O Configuration: 4 Digital Inputs, 2 Digital Outputs
• Thermistor Monitoring: PTC (Positive Temperature Coefficient)
• Compatible Mounting: DIN Rail Mount / Panel Mount
• Communication: Compatible with Rockwell Automation system communications (e.g., EtherNet/IP, DeviceNet via accessories)
• Certifications: UL Listed, CE Marked, RoHS Compliant
• Brand: Allen-Bradley
• Product Type: Overload Relay

Applications

• Robust Motor Protection & Control: Essential for safeguarding critical motors in diverse industrial settings, ensuring continuous and reliable operation.
• Industrial Automation & Process Control: Prevents costly downtime and equipment damage in automated systems due to electrical anomalies, enhancing overall plant efficiency.
• Pumps, Fans & Compressors: Optimizes the efficiency and extends the operational life of motor-driven applications critical for fluid handling and air management.
• Material Handling & Conveyor Systems: Provides real-time motor diagnostics and protection, crucial for maintaining smooth and uninterrupted material flow.
• HVAC & Utility Systems: Supports energy-efficient motor operation and prevents potential failures in heating, ventilation, air conditioning, and other utility infrastructures.
• Water/Wastewater Treatment Plants: Ensures reliable operation of pumps and mixers, critical for environmental and public health services.

Why Choose This Model?

• Unmatched Reliability: The Allen-Bradley 193-EC2EE is engineered for consistent, long-term performance, minimizing the risk of motor failure and unplanned downtime.
• Comprehensive Protection: Goes beyond basic overload protection, offering advanced safeguarding against phase loss, ground faults, and short circuits for complete motor health.
• Enhanced Diagnostics & Control: Integrated I/O and communication capabilities provide actionable data and enable sophisticated control strategies, leading to proactive maintenance and optimized operation.
• Seamless Integration: Being part of the Rockwell Automation ecosystem, this relay integrates effortlessly with other Allen-Bradley components, simplifying system design and deployment.
• Cost-Effective Solution: By preventing motor damage and extending equipment life, the 193-EC2EE delivers significant long-term cost savings through reduced repairs and improved operational efficiency.
• Industry-Leading Brand: Allen-Bradley is synonymous with quality and innovation in industrial automation, ensuring you invest in a product backed by decades of expertise and trust.

Order Now

Elevate your motor protection strategy with the Allen-Bradley 193-EC2EE E3 Plus Electronic Overload Relay. Experience advanced features, unparalleled reliability, and seamless integration into your industrial control systems. Benefit from fast shipping and worldwide delivery options. Explore our full range of 193 Series Relays and a complete catalog of Allen-Bradley Industrial Automation Products to discover more solutions for your operational needs.
