Allen-Bradley 193-EC2CB

Overview

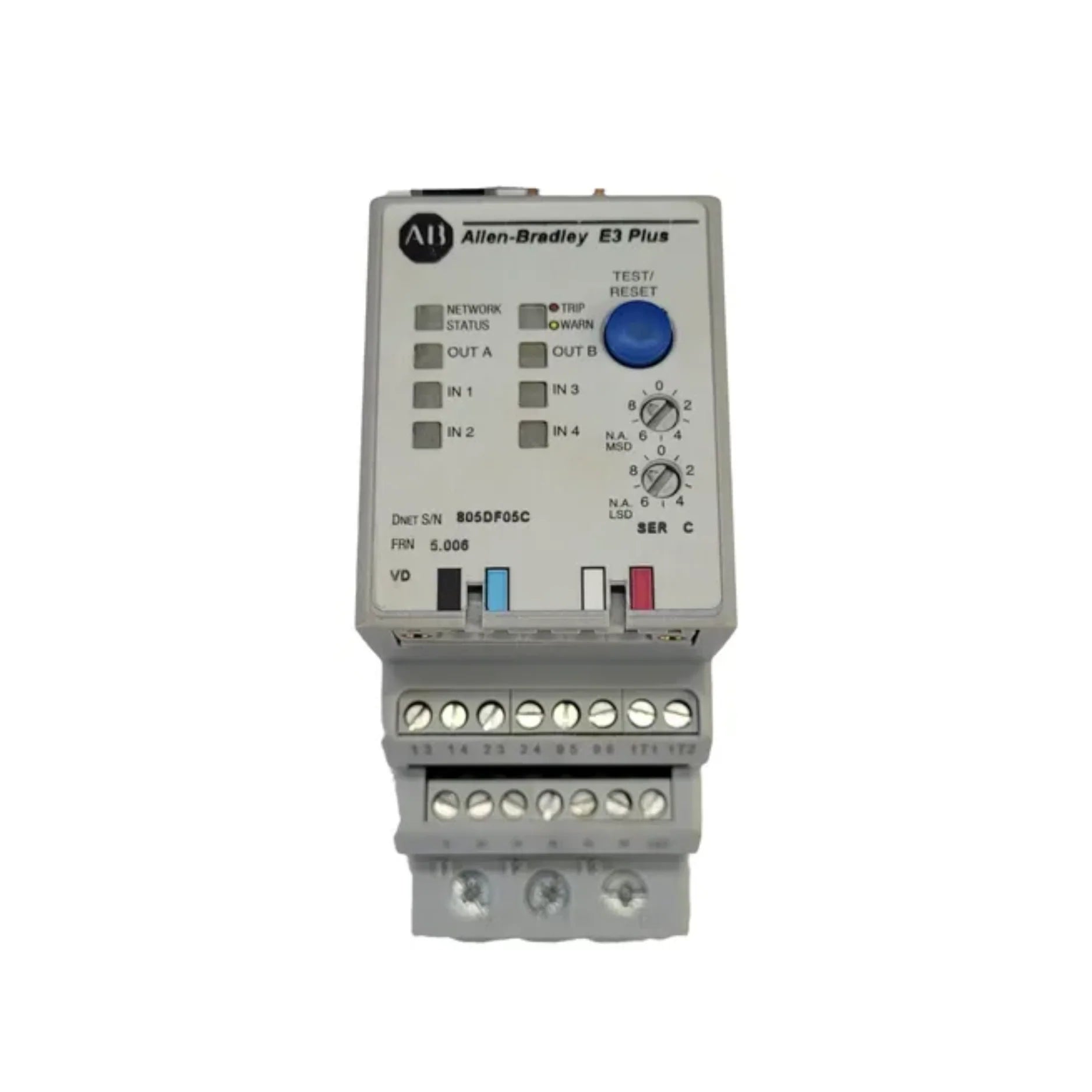

The Allen-Bradley 193-EC2CB E3 Plus electronic motor protection relay stands as a robust and intelligent solution for safeguarding industrial motors. Engineered for motors operating within the 5–25 amp full load current range, this Series B model integrates advanced protection capabilities with seamless communication. It features DeviceNet communication for streamlined integration into existing control systems, internal ground fault detection for enhanced safety, and a PTC thermistor input for precise motor winding temperature monitoring. With its 4 digital inputs and 2 relay outputs, the 193-EC2CB delivers comprehensive protection, real-time diagnostics, and local control functionality, all within a compact and efficient package. Leveraging DeviceLogix, it enables faster control response by executing local logic, minimizing reliance on a central PLC.

This versatile relay is designed for direct mounting to 100-C23 to C30 contactors, simplifying installation and reducing wiring complexity. Its adjustable trip class (Class 5–30) allows for tailored protection to suit various motor applications, while thermal memory ensures continuous heat model maintenance even after power loss. Advanced phase monitoring detects critical conditions like phase loss and imbalance, further extending motor lifespan and preventing costly downtime. The 193-EC2CB is an ideal choice for intelligent protection in low- to mid-range motor applications across diverse industrial environments.

Key Features

• Wide Current Range: Protects motors with a full load current from 5–25A, ensuring versatility across various applications.
• DeviceNet Communication: Seamless integration into DeviceNet networks (Series B, slave-only) for centralized control and data exchange.
• Comprehensive Protection: Offers advanced monitoring for overload, internal ground fault (1–5A detection range), PTC thermistor input for temperature, phase loss, and current imbalance.
• Integrated Logic (DeviceLogix): Enables local logic execution for faster, more responsive control actions without needing a dedicated PLC.
• Flexible I/O: Equipped with 4 discrete 24V DC inputs and 2 Form C relay outputs for enhanced control and signaling.
• Direct Contactor Mounting: Designed for direct mounting to 100-C23 to 100-C30 contactors, simplifying installation and saving panel space.
• Thermal Memory: Maintains motor heat model during power interruptions, providing continued accurate thermal protection.

Technical Specifications

• Catalog Number: 193-EC2CB
• Series: B
• Current Range: 5–25A
• Discrete Inputs: 4 x 24V DC (sinking)
• Relay Outputs: 2 Form C contacts
• Control Voltage: 24V DC
• Power Consumption: Approximately 4.5 W
• Communication: DeviceNet, Group 2 slave
• Ground Fault Detection: Internal, low-level (1–5A range)
• PTC Monitoring: Supported for motor winding temperature sensing
• Operating Temperature: -20°C to +55°C
• Storage Temperature: -40°C to +85°C
• Protection Rating: IP1X
• Mounting Compatibility: 100-C23 to 100-C30 contactors
• Certifications: UL, CE, CSA, RoHS
• Trip Class: Adjustable (Class 5–30)

Applications

• Pump and Fan Systems: Ideal for protecting pump and fan motors, especially those benefiting from integrated temperature monitoring.
• OEM Panels with DeviceNet: Perfectly suited for Original Equipment Manufacturer (OEM) panels that utilize DeviceNet architecture for integrated motor control.
• Industrial Machines: Provides advanced motor protection and localized diagnostic capabilities for a wide range of industrial machinery.
• Motor Control Centers (MCCs): Enhances the safety and reliability of motor circuits within MCCs, offering comprehensive overload, ground fault, and thermistor protection.
• Intelligent Motor Protection: Essential for applications requiring advanced and adaptable protection for low- to mid-range horsepower motors.

Why Choose This Model?

• Unmatched Versatility: Offers a wide array of protection features, including overload, ground fault, thermistor, phase loss, and current imbalance, all in one device.
• Enhanced Control & Responsiveness: DeviceLogix capabilities enable rapid, local decision-making and control responses, reducing communication latency and improving system performance.
• Simplified Integration & Installation: Direct mounting to contactors and seamless DeviceNet connectivity significantly reduce wiring and installation time, leading to cost savings.
• Space-Saving Design: Its compact footprint helps optimize control panel space, a critical factor in modern industrial applications.
• Reliability & Diagnostics: Provides real-time diagnostics and adjustable trip classes, ensuring reliable motor operation and proactive fault identification.
• Global Compliance: With UL, CE, CSA, and RoHS certifications, the 193-EC2CB meets stringent international quality and safety standards.

Order Now

Elevate your motor protection strategy with the Allen-Bradley 193-EC2CB E3 Plus electronic motor protection relay. This advanced device delivers unparalleled safeguarding, diagnostic capabilities, and seamless integration for your industrial motors. The Allen-Bradley 193-EC2CB is available for immediate shipment worldwide. Explore our full range of 193 Series Relays to discover all available models and their specifications. For a complete overview of Allen-Bradley's innovative solutions, including controllers, drives, motors, HMIs, and accessories, please visit our Allen-Bradley Industrial Automation Products master category.
