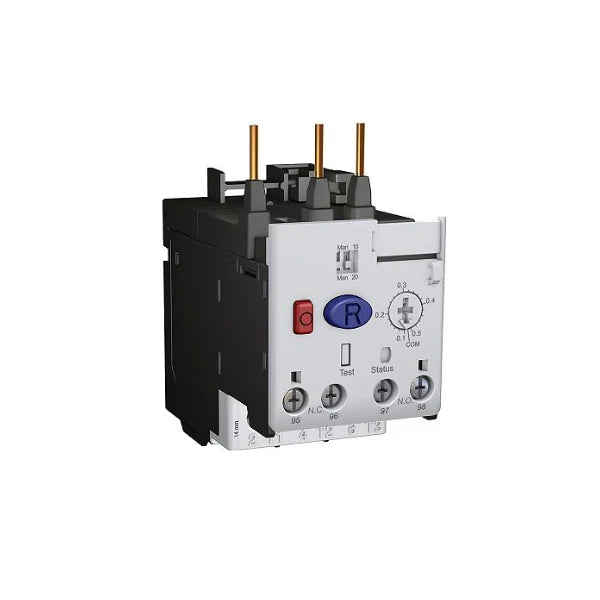

Allen Bradley 193-1EFCB

Overview

The Allen Bradley 193-1EFCB E100 IEC Solid State Overload Relay is an advanced, robust solution engineered to provide superior motor protection against damaging overload conditions in both 1-phase and 3-phase systems. Designed for industrial and commercial environments, this relay ensures precise and reliable operation, safeguarding your valuable equipment and significantly reducing unexpected downtime. With its adjustable current range of 1-5A and compatibility with 100-C C09-C23 contactors, it offers unparalleled flexibility and high performance for a wide array of applications. The relay also boasts configurable trip classes (10, 15, 20, 30) and convenient manual or automatic reset options, making it a versatile and essential component for any motor control system seeking enhanced reliability and efficiency.

Key Features

• Adjustable Current Range (1-5A): Provides precise motor protection tailored to specific current requirements, offering exceptional versatility for various motor sizes.
• Selectable Trip Classes (10, 15, 20, 30): Allows optimization of motor protection to match diverse start-up characteristics and operational demands, preventing premature tripping or motor damage.
• Flexible Reset Options (Manual/Automatic): Enhances operational convenience and system adaptability, enabling operators to choose the most suitable reset mode for their application.
• Seamless Contactor Integration: Designed for direct mounting onto 100-C C09-C23 contactors, ensuring a compact footprint and reducing installation complexity.
• Solid-State Reliability: Offers enhanced durability and a longer operational lifespan compared to traditional thermal relays, ensuring consistent protection.
• Screw-Type Terminals: Guarantees secure and dependable electrical connections, minimizing wiring errors and enhancing safety.

Technical Specifications

• Model Number: 193-1EFCB
• Type: E100 IEC Solid State Overload Relay
• Current Range: 1A to 5A (Adjustable)
• Phases Supported: 1-Phase and 3-Phase Systems
• Trip Classes: Class 10, 15, 20, 30
• Reset Mode: Manual or Automatic Reset
• Compatible Contactors: Allen-Bradley 100-C C09 through C23 series
• Operating Voltage: Compliant with IEC Standards
• Terminal Type: Screw Type
• Mounting Type: Direct on Contactor or DIN Rail Mountable (with optional adapter)

Applications

• Industrial Automation & Manufacturing: Essential for protecting motors in conveyor systems, packaging machinery, and assembly lines.
• HVAC Systems: Ensures reliable operation and longevity of motors in heating, ventilation, and air conditioning units.
• Pumps & Compressors: Vital for safeguarding critical pumping stations and air compression equipment from mechanical and electrical stress.
• Material Handling Equipment: Provides robust protection for motors in hoists, cranes, and other lifting mechanisms.
• Food & Beverage Processing: Ideal for maintaining continuous operation of motors in mixing, blending, and processing machinery.

Why Choose This Model?

• Unmatched Motor Protection: Advanced solid-state technology ensures precise and rapid response to overload conditions, significantly extending motor life.
• Operational Versatility: Adjustable current range and multiple trip class options make it adaptable for a vast array of motor types and applications, simplifying inventory and selection.
• Reduced Downtime: By preventing motor failures, the 193-1EFCB minimizes costly interruptions and maintenance, maximizing productivity.
• Space-Saving Design: Its compact form factor and direct mounting capability optimize panel space, allowing for more efficient control system layouts.
• Allen-Bradley Quality: Built with the renowned reliability and performance expected from Allen-Bradley products, ensuring long-term consistent operation.

Order Now

Elevate your motor protection strategy with the Allen Bradley 193-1EFCB E100 IEC Solid State Overload Relay. Experience superior performance, reliability, and peace of mind knowing your motors are safeguarded by industry-leading technology. Contact DDPARTS SOLUTION today for expert assistance, competitive pricing, and fast shipping to secure this indispensable component for your industrial automation needs!
