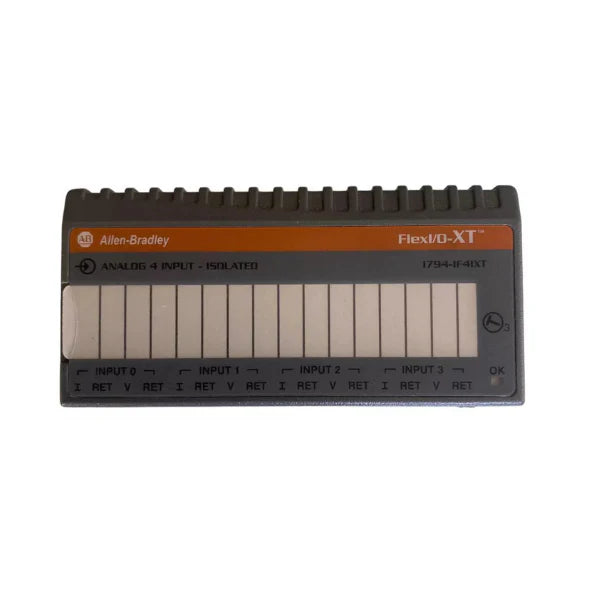

Allen-Bradley 1794-IF4IXT Flex I/O 4-Channel Isolated Analog

Overview

The Allen-Bradley 1794-IF4IXT is a high-performance 4-channel isolated analog input module, meticulously engineered for seamless integration into Flex I/O systems. This robust module is the cornerstone for industrial automation applications demanding the utmost accuracy and reliability in analog signal processing. With its advanced design and superior isolation capabilities, the 1794-IF4IXT ensures precise data acquisition, even in the most challenging industrial environments.

Designed to deliver exceptional flexibility, this module supports both voltage and current inputs with a wide range of selectable spans, catering to diverse sensor and transducer requirements. Its 16-bit resolution and impressive accuracy guarantee that critical process data is captured with high fidelity, empowering intelligent control and optimized operations across various industries.

Key Features

• 4 Isolated Analog Inputs: Benefit from four independent channels for precise and reliable analog signal measurement, featuring robust isolation to eliminate interference and ensure signal integrity.
• High Resolution & Accuracy: Achieve superior data acquisition with 16-bit resolution and an outstanding ±0.1% full-scale accuracy, essential for demanding industrial applications.
• Wide Input Range Versatility: Flexibly accommodate various industrial sensors with selectable voltage (±10V, 0-10V, 0-5V, ±5V) and current (0-20mA, 4-20mA) input ranges.
• Integrated 1500V Isolation: Secure critical systems with 1500V isolation between channels and from field devices, effectively protecting against electrical noise, ground loops, and enhancing signal reliability.
• Compact & Efficient Design: Optimize cabinet space with the module's compact form factor, designed for effortless integration into existing or new Flex I/O systems.
• Versatile Application Adaptability: Ideal for a broad spectrum of applications, including accurate temperature, pressure, flow, and level monitoring from various industrial sensors and transmitters.
• Diagnostic & Status LEDs: Easily monitor module operation and troubleshoot potential issues with clearly visible status and diagnostic LED indicators.

Technical Specifications

• Part Number: 1794-IF4IXT
• Module Type: 4-Channel Isolated Analog Input
• Input Type: Voltage, current (selectable)
• Input Voltage Range: ±10V, 0-10V, 0-5V, ±5V
• Input Current Range: 0-20mA, 4-20mA
• Input Impedance: 200 kΩ (voltage), 250 Ω (current)
• Resolution: 16-bit
• Accuracy: ±0.1% FS (Full Scale)
• Power Consumption: 0.25W
• Operating Temperature: -20°C to 60°C (-4°F to 140°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Certifications: UL, CE, CSA, RoHS compliant
• Dimensions: 3.4 x 3.8 x 1.3 in (86.4 x 97 x 33.5 mm)
• Weight: 0.35 lbs (0.16 kg)
• Mounting: DIN rail or panel mount
• Input Isolation: 1500V (channel-to-channel, channel-to-ground)
• LED Indicators: Status and diagnostic LEDs

Applications

• Industrial Process Control: Essential for precise monitoring of critical parameters like temperature, pressure, flow, and level in complex process control systems, ensuring optimal product quality and operational efficiency.
• Factory Automation: Integral for acquiring accurate analog signals from a multitude of sensors and devices within automated factories, contributing to the seamless operation and control of machinery and systems.
• Energy Management Systems: Crucial for applications requiring highly accurate voltage and current measurements, enabling effective energy consumption monitoring and optimization strategies.
• Building Management Systems (BMS): Deploys effectively within HVAC systems and environmental control, processing signals from temperature, humidity, and other environmental sensors for intelligent building automation.
• Test and Measurement: Provides reliable and accurate data collection in various test benches and measurement systems, supporting in-depth analysis and validation processes.
• Water and Wastewater Treatment: Monitors critical analog signals from sensors detecting levels, flow rates, and chemical concentrations for efficient plant operation and regulatory compliance.

Why Choose This Model?

• Unmatched Precision: With 16-bit resolution and 0.1% accuracy, the 1794-IF4IXT delivers data you can trust for critical industrial processes.
• Robust Isolation: Its 1500V isolation protects your signals from electrical interference, ensuring stable and reliable performance in harsh industrial environments.
• Versatile Compatibility: Designed for seamless integration into Flex I/O systems, offering broad compatibility with existing Allen-Bradley infrastructure.
• Optimized Performance: This module is engineered for consistent, high-performance operation across a wide range of operating temperatures, guaranteeing longevity and reliability.
• Simplified Integration: Its compact size and flexible mounting options (DIN rail or panel) enable easy installation, saving valuable space and time.

Order Now

Elevate your industrial automation capabilities with the Allen-Bradley 1794-IF4IXT Flex I/O 4-Channel Isolated Analog Input Module. Experience the difference that precision, reliability, and advanced isolation can make in your operations. Browse our complete selection of 1794 FLEX I/O Modules for more options, or explore the full range of Allen-Bradley Industrial Automation Products to find integrated solutions for all your control needs.
