Allen-Bradley 1794-ID2

Overview

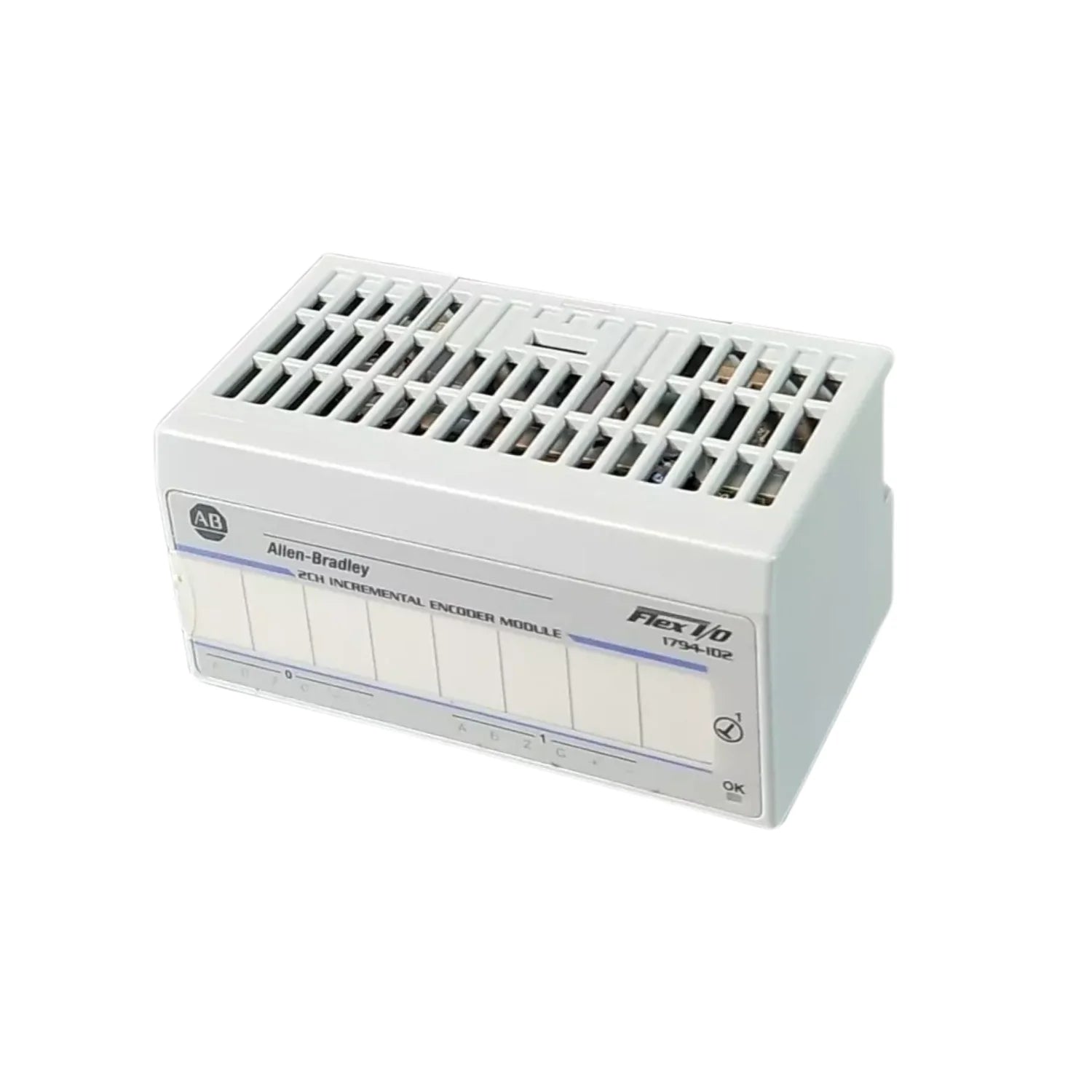

Unlock unparalleled precision and high-speed performance in your industrial automation systems with the Allen-Bradley 1794-ID2 FLEX I/O 2-Channel Incremental Encoder Input Module. Engineered for demanding applications requiring accurate pulse counting and robust signal processing, this module is an essential component for modern motion control and positioning systems. As a core element of the versatile FLEX I/O platform, the 1794-ID2 delivers exceptional flexibility and reliability, integrating seamlessly into existing or new control architectures.

The 1794-ID2 is specifically designed to interface with incremental encoders, offering two dedicated pulse transmitter interfaces. Each interface boasts four optocoupled inputs, crucial for ensuring signal isolation and protecting your sensitive control circuitry from electrical noise and transients. This meticulous design guarantees clean, accurate data acquisition, whether you're working with complementary or non-complementary signal transmitters. Enhance your operational efficiency and achieve finer control with this high-performance Allen-Bradley module.

Key Features

• Dual-Channel Incremental Encoder Input: Facilitates high-speed, precise signal acquisition from two independent incremental encoders, optimizing multi-axis control.
• High-Speed Pulse Counting: Engineered to accurately count pulses at high frequencies, critical for dynamic motion control and exact positioning.
• Two Robust Pulse Transmitter Interfaces: Provides reliable connectivity for incremental pulse transmitters, ensuring data integrity in challenging industrial environments.
• Optocoupled Inputs for Superior Isolation: Features four optocoupled inputs per channel, offering excellent electrical isolation to safeguard equipment and guarantee signal clarity.
• Universal Signal Compatibility: Supports both complementary and non-complementary signal transmitters, enhancing flexibility and reducing integration complexities.
• Seamless FLEX I/O System Integration: Designed to be a drop-in component within the Allen-Bradley FLEX I/O system, enabling modular and scalable industrial control solutions.
• Durable Industrial Design: Built to withstand harsh industrial conditions, ensuring long-term reliability and consistent performance.

Technical Specifications

• Model: 1794-ID2
• Module Type: Incremental Encoder Input Module
• Number of Channels: 2
• Interfaces: 2 Pulse Transmitters
• Inputs per Channel: 4 Optocoupled Inputs
• Input Signal Compatibility: Complementary and Non-Complementary
• System Compatibility: FLEX I/O

Applications

• High-Speed Pulse Counting and Positioning: Ideal for applications requiring extremely accurate and rapid pulse feedback for precise control.
• Incremental Encoder Signal Processing: Essential for interpreting signals from incremental encoders in a wide array of industrial machinery.
• Motion Control in Industrial Automation: A core component for controlling the movement of robotic arms, CNC machines, and automated assembly lines.
• Machine Feedback and Positioning Systems: Provides critical feedback for maintaining exact positions and speeds in manufacturing processes.
• Packaging and Material Handling: Improves the accuracy and speed of sorting, conveying, and packaging operations.
• Textile and Printing Machinery: Ensures precise registration and synchronization for high-quality production outputs.

Why Choose This Model?

• Exceptional Precision: The 1794-ID2 offers industry-leading accuracy in pulse counting, crucial for applications where even minor deviations can impact performance.
• Robust Signal Integrity: With its optocoupled inputs, this module ensures superior noise immunity and signal isolation, safeguarding your data and equipment in electrically noisy environments.
• Versatile Compatibility: Designed to work with both complementary and non-complementary signals, the 1794-ID2 provides broad flexibility, simplifying integration with diverse encoder types.
• Seamless System Expansion: As part of the FLEX I/O family, scaling your control system is straightforward and efficient, allowing for future expansion with minimal disruption.
• Trusted Allen-Bradley Reliability: Benefit from Allen-Bradley's reputation for manufacturing high-quality, durable components that deliver consistent performance in demanding industrial settings.
• Optimized for High-Speed Environments: Specifically engineered for rapid data acquisition, making it the ideal choice for dynamic and time-sensitive industrial processes.

Order Now

Enhance your industrial automation capabilities with the Allen-Bradley 1794-ID2 FLEX I/O 2-Channel Incremental Encoder Input Module. Experience the difference that precision, reliability, and seamless integration can make to your operations. Don't compromise on performance—invest in a solution that delivers measurable results.
