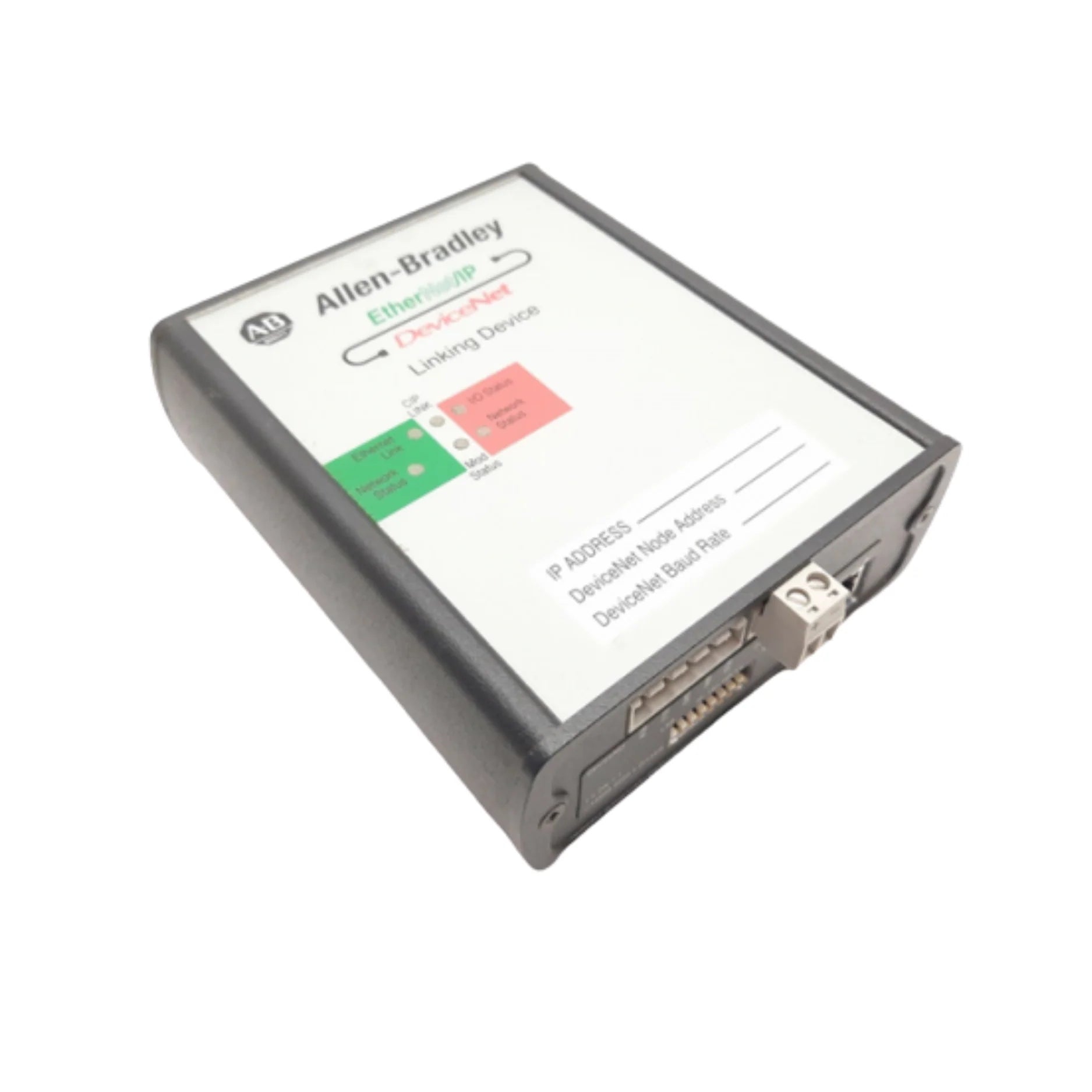

Allen-Bradley 1788-EN2DN

Overview

The Allen-Bradley 1788-EN2DN is a robust and essential linking device engineered to seamlessly connect EtherNet/IP networks with existing DeviceNet infrastructure. This versatile module acts as a sophisticated EtherNet/IP adapter and a powerful DeviceNet scanner, enabling the effortless integration of legacy DeviceNet nodes into modern, high-performance control architectures. Designed for industrial environments, the 1788-EN2DN facilitates smooth network transitions, ensuring continued operation and maximizing the value of your installed DeviceNet devices. Its ability to support up to 63 DeviceNet devices coupled with convenient DIN rail mounting makes it an ideal solution for industrial automation systems undergoing essential network upgrades or expansions.

Key Features

• Efficient EtherNet/IP to DeviceNet Gateway: Provides reliable and high-speed data exchange between EtherNet/IP and DeviceNet protocols.
• Extensive DeviceNet Node Support: Connects and manages up to 63 individual DeviceNet devices, offering broad integration capabilities.
• Space-Saving DIN Rail Mountable Design: Ensures easy installation and secure placement within industrial control panels.
• Comprehensive LED Indicators: Offers clear visual diagnostics for network, DeviceNet, and module status, simplifying troubleshooting.
• Flexible Power Input: Operates efficiently with a 24 V DC power supply, supporting a wide industrial voltage range (12–30 V).
• Multiple DeviceNet Baud Rate Support: Compatible with 125 kbps, 250 kbps, and 500 kbps DeviceNet baud rates, ensuring versatility.
• Integrated Web-Based Configuration: Simplifies setup, monitoring, and diagnostics through an intuitive web interface, reducing commissioning time.

Technical Specifications

• Part Number: 1788-EN2DN
• Power Supply: 24 V DC (range 12–30 V)
• DeviceNet Load: Maximum 100 mA
• EtherNet/IP Data Size: Input ≤ 496 bytes, Output ≤ 492 bytes
• Isolation Voltage: 50 V continuous
• Mounting Type: DIN rail
• Operating Temperature: 0 °C to 60 °C
• Status LEDs: Network, DeviceNet, Module Status
• Enclosure Type: Open-style, designed for industrial use

Applications

• Bridging Legacy Systems: Facilitates seamless communication between older DeviceNet systems and modern EtherNet/IP controllers.
• Industrial Automation Upgrades: Essential component for modernizing control infrastructure while preserving existing DeviceNet assets.
• OEM Equipment Integration: Ideal for original equipment manufacturers needing to integrate devices across mixed network protocols.
• Factory Automation: Enhances connectivity in factory environments, supporting robotics, material handling, and assembly lines.
• Process Control: Enables robust data exchange in process control applications requiring reliable network interoperability.

Why Choose This Model?

• Unmatched Integration Simplicity: The 1788-EN2DN significantly simplifies the complex task of integrating DeviceNet devices into EtherNet/IP systems, saving valuable engineering time.
• Cost-Effective Network Modernization: By allowing the retention of existing DeviceNet infrastructure, this device helps reduce capital expenditure associated with full network overhauls.
• Effortless Setup and Management: Compatible with industry-standard tools like RSNetWorx and RSLinx, ensuring quick and straightforward configuration and diagnostics.
• Scalable I/O Support: Capable of handling large I/O configurations, making it suitable for a wide range of industrial applications from small to complex.
• Optimized for Phased Migrations: Its design and capabilities make it an excellent choice for organizations undertaking phased network migrations, ensuring minimal disruption.
• Reliability from Allen-Bradley: Built with Allen-Bradley's renowned quality and industrial robustness, ensuring long-term dependable performance in demanding environments.

Order Now

The Allen-Bradley 1788-EN2DN linking device is a critical solution for any industrial application requiring a robust and reliable bridge between EtherNet/IP and DeviceNet networks. Enhance your control system's connectivity and efficiency today. This product is readily available and ships worldwide to meet your global automation needs. Explore our full range of Allen-Bradley Industrial Automation Products for comprehensive solutions including PLCs, HMIs, drives, and sensors.
