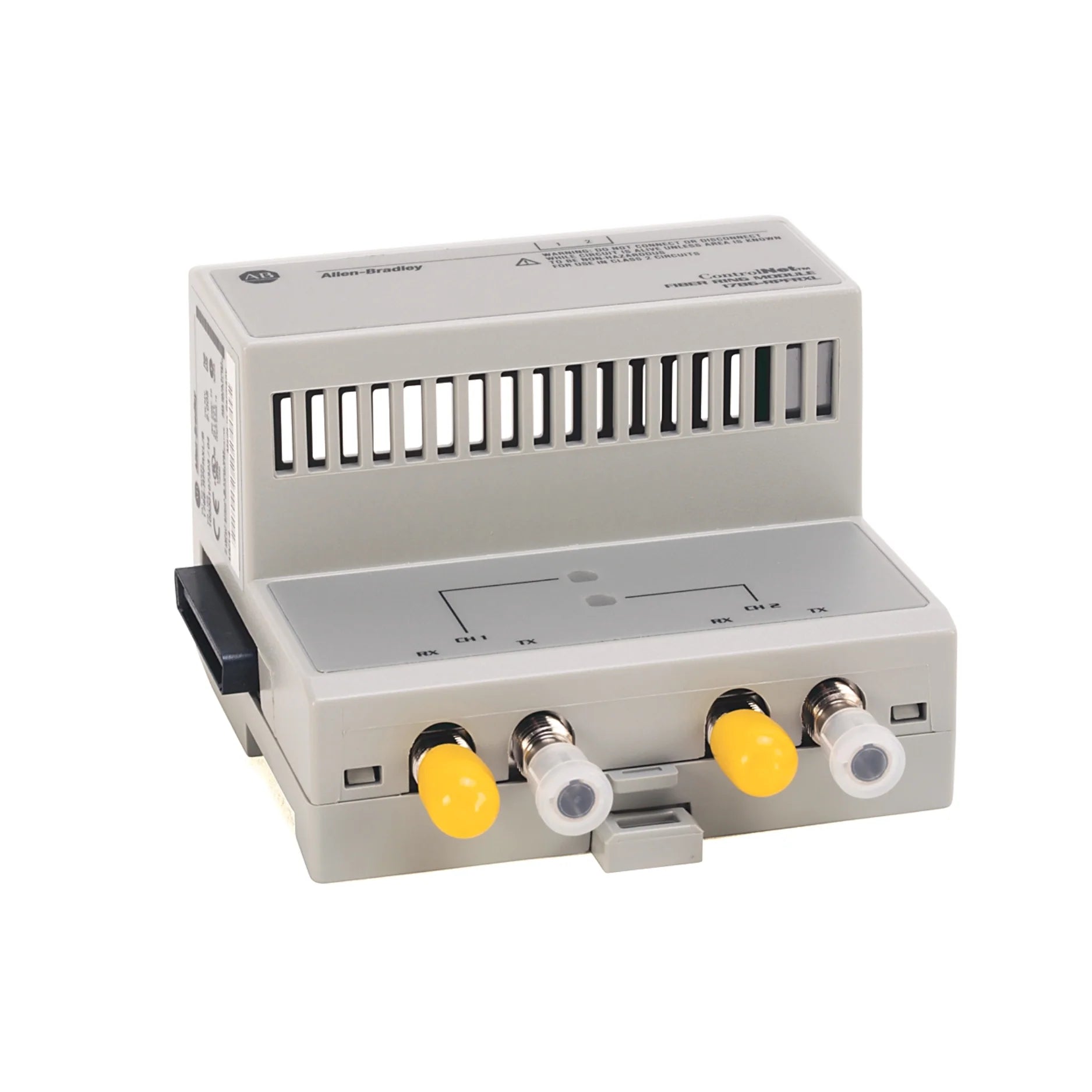

Allen-Bradley 1786-RPFRXL

Overview

The Allen-Bradley 1786-RPFRXL is a high-performance ControlNet™ fiber repeater module meticulously engineered to dramatically extend the reach of your industrial networks while bolstering their reliability. This extra-long-distance unit is designed to bridge significant geographical gaps, supporting fiber optic cable runs of up to an impressive 20 kilometers. It's an essential component for robust ControlNet architectures, providing critical fiber ring media redundancy to ensure continuous operation in even the most challenging industrial landscapes. Built for versatility, the 1786-RPFRXL supports point-to-point, star, and ring topologies, offering unparalleled flexibility in network design. Its advanced features contribute to superior noise immunity and comprehensive diagnostic visibility, making it the ideal solution for demanding applications requiring both extended range and unwavering stability.

Key Features

• Extended Network Reach: Seamlessly extends ControlNet fiber optic networks over distances up to 20 kilometers, overcoming significant physical limitations.
• Optical Isolation: Provides crucial optical isolation between fiber segments, protecting sensitive network components from electrical interference and ground loops.
• Ring Redundancy Support: Enables high-availability ring topologies, ensuring network integrity and continuous operation even in the event of a single fiber path failure.
• Integrated Fault Diagnostics: Features a dedicated fault relay for real-time monitoring and immediate identification of network anomalies, facilitating rapid troubleshooting.
• Enhanced Noise Immunity: Ideal for deployment in environments prone to high electromagnetic interference (EMI), ensuring stable and reliable data transmission.
• Flexible Topology Options: Supports point-to-point, star, and ring configurations, offering adaptable solutions for diverse industrial networking requirements.
• Dual Fiber Ports: Equipped with two fiber optic segments per module, providing greater flexibility in network design and connectivity.

Technical Specifications

• Brand: Allen-Bradley
• Series: Bulletin 1786
• Part Number: 1786-RPFRXL
• Function: ControlNet Fiber Repeater Module
• Fiber Segments: 2 per module
• Distance Support: Up to 20 km total
• Topology Support: Point-to-Point, Star, Ring
• Diagnostics: Integrated fault relay for runtime diagnostics
• Redundancy: Supports ring media redundancy
• Use Case: Fiber media extension and optical isolation
• Mounting Type: DIN rail or panel mount
• Condition: New

Applications

• Long-Distance ControlNet Extensions: Perfect for extending ControlNet networks across vast factory floors, between buildings, or to remote operational sites.
• High-Availability Systems: Crucial for implementing robust fiber ring redundancy in mission-critical applications where network uptime is paramount.
• EMI-Prone Industrial Environments: Provides essential optical isolation and noise immunity in facilities with high electromagnetic interference.
• Distributed Control Systems (DCS): Enables reliable communication between widely dispersed control components and remote I/O modules.
• OEM Solutions: An excellent choice for original equipment manufacturers seeking to integrate resilient and extended-range networking capabilities into their products.
• Critical Infrastructure: Ensures dependable data transfer in sectors such as power generation, water treatment, and transportation, where network reliability is non-negotiable.

Why Choose This Model?

• Unmatched Range: With an impressive 20km extension capability, the 1786-RPFRXL stands out for its ability to connect distant network nodes where other solutions fall short.
• Superior Reliability: Built-in ring redundancy and robust construction ensure your ControlNet network remains operational, minimizing downtime and maximizing productivity.
• Optimized for Harsh Environments: Designed to withstand challenging industrial conditions, offering exceptional noise immunity and optical isolation for dependable performance.
• Seamless Integration: Its compatibility with various network topologies makes it highly adaptable, simplifying integration into existing or new ControlNet architectures.
• Brand Trust: As an Allen-Bradley product, the 1786-RPFRXL embodies a legacy of quality, reliability, and innovation in industrial automation.
• Diagnostic Efficiency: The integrated fault relay allows for proactive network management, reducing troubleshooting time and maintaining system health.
