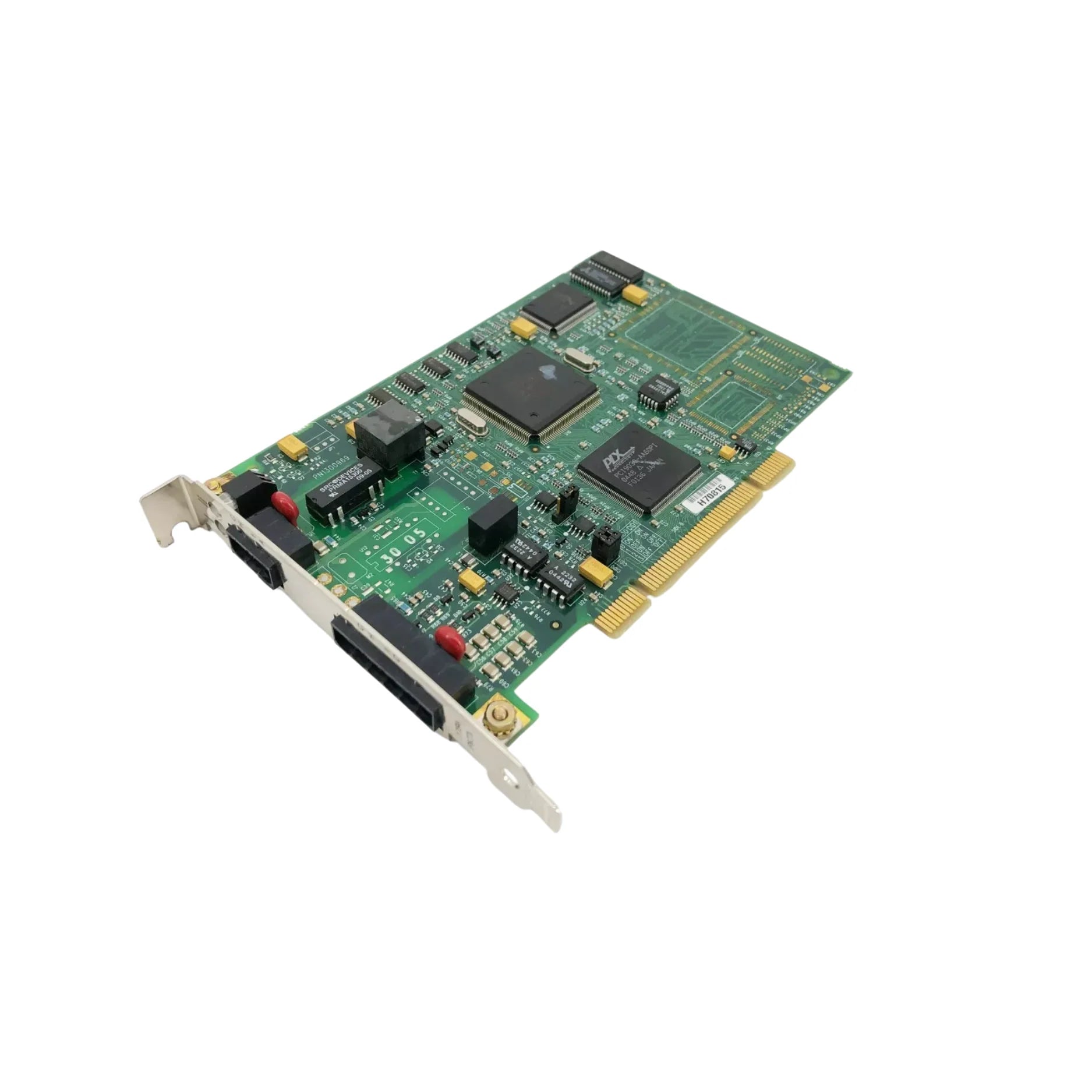

Allen-Bradley 1784-PKTX

Overview

The Allen-Bradley 1784-PKTX is an advanced PCI Bus Communication Card engineered to meet the rigorous demands of industrial automation and network connectivity. This essential component provides comprehensive support for Data Highway Plus (DH+), DH-485, and Remote I/O (RIO) communication protocols, making it indispensable for enhancing PLC and SCADA system integration. Featuring two independent communication channels, the 1784-PKTX offers unparalleled flexibility in connecting disparate industrial devices and systems. Its robust design and seamless integration with RSLinx ensure reliable industrial networking, making it a perfect choice for modernizing legacy systems and facilitating real-time data exchange. Whether upgrading existing infrastructure or implementing new control solutions, the 1784-PKTX delivers the performance and compatibility necessary for efficient operation.

The card’s innovative architecture includes dedicated channels for various communication needs: CH 1A (3-pin Phoenix) is designed to support DH+ and Remote I/O, while CH 1C (6-pin Phoenix) handles DH-485 communications. This dual-channel capability maximizes connectivity options within a single, high-performance card. Designed for compatibility with modern industrial computers, the 1784-PKTX adheres to PCI 2.3 standards, ensuring broad applicability. Diagnostic LEDs for each channel provide immediate visual feedback on status and activity, simplifying troubleshooting and maintenance. With support for up to four modules per system, configurable via intuitive jumper settings, and seamless compatibility with the RSLinx PKTx Driver, this communication card is built for scalability and ease of management. It also offers driver development for Remote I/O (6001-RIO) to support advanced, custom applications, broadening its utility across various specialized industrial environments.

Key Features

• Flexible Communication Protocol Support: Supports DH+, DH-485, and Remote I/O (RIO) for comprehensive industrial network integration.
• Dual Independent Communication Channels: Features CH 1A (3-pin Phoenix) for DH+ and RIO, and CH 1C (6-pin Phoenix) for DH-485, maximizing connectivity options.
• PCI Bus Interface (PCI 2.3 Compliant): Ensures broad compatibility and high-speed data transfer with modern industrial computer systems.
• Real-time Diagnostic LEDs: Each channel is equipped with diagnostic LEDs for instant status monitoring and simplified troubleshooting.
• Expandable System Configuration: Supports up to four modules per system, configurable via robust jumper settings for scalable solutions.
• RSLinx PKTx Driver Compatibility: Simplifies setup, configuration, and ongoing network management for enhanced operational efficiency.
• Advanced Driver Development: Offers 6001-RIO driver development for Remote I/O, enabling custom applications and specialized system functionalities.

Technical Specifications

• Model: 1784-PKTX
• Series: 1784
• Bus Type: PCI (2.3 compliant)
• Supported Protocols: DH+, DH-485, Remote I/O (RIO)
• Number of Channels: 2
• Channel Configuration: CH 1A (3-pin Phoenix) for DH+ / Remote I/O; CH 1C (6-pin Phoenix) for DH-485
• Maximum Modules per System: 4 (configurable via jumper settings)
• LED Indicators: 1 diagnostic/status LED per channel
• Operating System Support: Windows 95 / NT (Custom driver required for other operating systems)
• Driver Software: RSLinx PKTx driver (for DH+ / DH-485)
• Connectors: Phoenix connectors (3-pin for CH 1A, 6-pin for CH 1C)

Applications

• Industrial Control & Automation Networks: Provides critical communication pathways between PLCs, HMIs, and SCADA systems, forming the backbone of advanced industrial operations.
• Legacy System Modernization: Facilitates seamless upgrades and integration by offering robust connectivity to existing DH+ / DH-485 networks, extending the life and utility of vital equipment.
• Remote I/O and Field Device Communication: Enables efficient data exchange and control between centralized controllers and various field devices, optimizing distributed automation processes.
• SCADA & Data Acquisition Systems: Enhances real-time monitoring, control, and data acquisition capabilities, providing operators with comprehensive insights and command over complex industrial processes.
• Factory Automation Solutions: Crucial for connecting diverse machinery, sensors, and actuators within manufacturing environments, driving productivity and operational intelligence.

Why Choose the Allen-Bradley 1784-PKTX?

• Reliable Industrial Connectivity: Engineered by Allen-Bradley, a leader in industrial automation, ensuring robust and dependable communication for critical applications.
• Versatile Protocol Support: Its ability to handle DH+, DH-485, and Remote I/O protocols in a single card reduces complexity and hardware requirements, offering a truly all-in-one solution.
• Future-Proofing Legacy Systems: Provides an effective bridge for integrating older automation systems with modern computing infrastructure, extending asset lifespan and improving ROI.
• Simplified Integration and Management: With RSLinx compatibility and intuitive diagnostic features, the 1784-PKTX minimizes setup time and simplifies ongoing network administration.
• Optimized Performance: PCI 2.3 compliant interface ensures high-speed, reliable data transfer crucial for real-time industrial control and monitoring.
• Scalable and Flexible: Dual-channel design and support for multiple modules per system allow for scalable solutions that adapt to evolving industrial requirements.

Order Now

Unlock superior industrial connectivity and streamline your automation processes with the Allen-Bradley 1784-PKTX PCI Bus Communication Card. Benefit from its unparalleled versatility, robust performance, and seamless integration capabilities. We offer fast shipping and worldwide delivery options to ensure you receive your essential components without delay. Enhance your system’s efficiency and reliability today.
