Allen-Bradley 1783-MMS10R

Overview

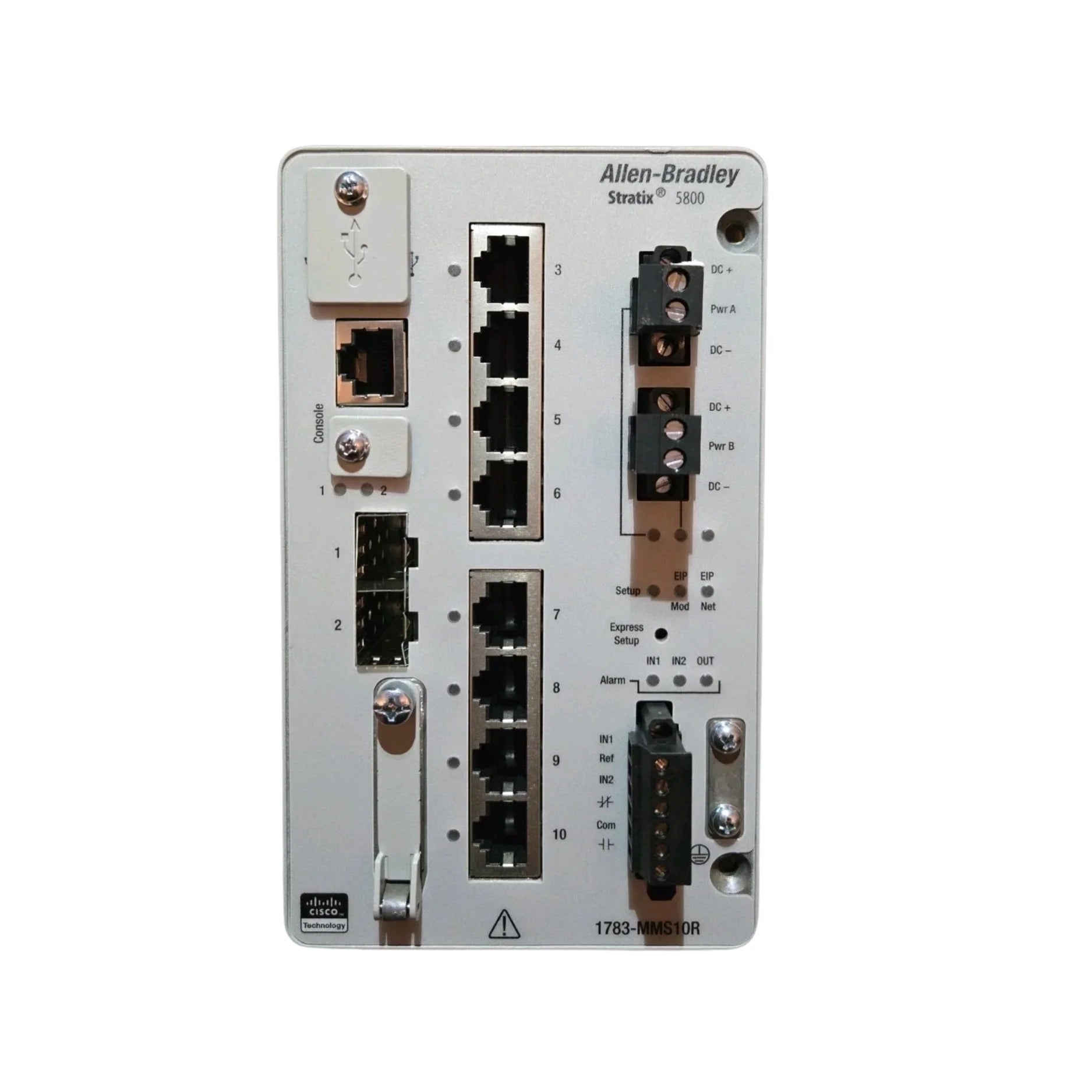

Unleash the full potential of your industrial network with the Allen-Bradley 1783-MMS10R Stratix 5800 Modular Layer 3 Managed Ethernet Switch. Engineered for demanding environments, this powerhouse device from the renowned Stratix 5800 family provides unparalleled performance, advanced routing capabilities, and robust reliability. With its versatile configuration of 8 Gigabit copper ports and 2 SFP fiber slots, the 1783-MMS10R is the ideal solution for segmenting and scaling complex industrial networks, ensuring seamless data flow and enhanced security.

Designed for mission-critical applications, this switch boasts DIN rail mounting for easy integration and supports dual redundant 12–48V DC power inputs. This redundancy guarantees continuous operation, even in the event of a power supply interruption, making it perfectly suited for the harshest industrial settings where downtime is simply not an option. Leverage its full Layer 3 functions, including static routing and VLANs, to create an intelligent, efficient, and future-proof network infrastructure.

Key Features

• Advanced Layer 3 Routing: Experience superior network segmentation and inter-VLAN communication with full Layer 3 functionality, including static routing and multicast support.
• Hybrid Connectivity: Maximize flexibility with 8 speedy Gigabit copper ports and 2 versatile SFP fiber uplink ports, accommodating diverse network topologies and distances.
• Redundant Power Inputs: Ensure uninterrupted operation and critical system uptime with dual 12–48V DC power inputs, enhancing reliability in demanding industrial environments.
• Industrial-Grade Durability: Housed within a rugged IP30-rated enclosure, this switch is built to withstand extreme temperatures (-40°C to +60°C) and harsh industrial conditions.
• Seamless Integration: Achieve effortless integration with existing Rockwell Automation control systems, streamlining network management and simplifying deployment.
• Compact & Efficient Design: The DIN rail mountable form factor saves valuable cabinet space while offering easy installation and maintenance.
• Comprehensive Certifications: Operates with peace of mind thanks to UL, CSA, and CE certifications, guaranteeing adherence to stringent safety and quality standards.

Technical Specifications

• Brand: Allen-Bradley / Rockwell Automation
• Series: Stratix 5800
• Part Number: 1783-MMS10R
• Type: Modular Managed Ethernet Switch
• Firmware: Layer 3
• Copper Ports: 8 × 100/1000 Mbps RJ45
• Fiber Ports: 2 × 100/1000 Mbps SFP slots
• Power Input Range: 12–48V DC
• Power Connectors: 2 (redundant input support)
• Mounting: DIN rail
• Protection Rating: IP30
• Operating Temperature: -40°C to +60°C
• Certifications: UL, CSA, CE
• Condition: New

Applications

• Industrial Network Routing: Facilitate intelligent routing and efficient inter-VLAN communication within complex industrial control systems.
• Layer 3 Edge & Distribution Switching: Perfectly suited for both edge and distribution layers, enabling scalable and high-performance network architectures.
• Plant-Wide Ethernet/IP: Build robust and reliable Ethernet/IP infrastructures across entire manufacturing plants, supporting critical real-time operations.
• Segmented Manufacturing Networks: Create secure and efficient segmented networks for enhanced performance, security, and simplified management of industrial assets.
• OEM Systems: Ideal for integration into OEM systems requiring advanced network topologies and reliable, high-speed data transmission.
• Critical Infrastructure: Deploy in environments such as utilities, transportation, and oil & gas, where network uptime and data integrity are paramount.

Why Choose This Model?

• Optimize Network Performance: With Layer 3 routing capabilities, the 1783-MMS10R intelligently manages traffic, reducing latency and boosting overall network efficiency.
• Ensure Unwavering Reliability: Redundant power inputs and a rugged industrial design guarantee continuous operation, minimizing costly downtime in critical applications.
• Future-Proof Your Infrastructure: Its modular design and support for both copper and fiber connectivity offer scalability and adaptability for evolving network demands.
• Simplify Integration and Management: Seamless compatibility with Rockwell Automation systems streamlines configuration and maintenance, reducing operational complexities.
• Invest in Proven Quality: As an Allen-Bradley product, the 1783-MMS10R represents a commitment to superior engineering and long-term industrial reliability.
• Global Availability & Support: Readily available for fast worldwide shipping, ensuring you get the critical components you need, when you need them.

Order Now

Elevate your industrial networking capabilities with the Allen-Bradley 1783-MMS10R Stratix 5800. This top-tier Layer 3 managed switch is in stock and ready for immediate deployment to enhance your network's performance, reliability, and security. Experience the difference advanced industrial networking can make.

For more options, explore our complete range of Stratix Switches to find the perfect model for your specific requirements. Additionally, discover our extensive catalog of Allen-Bradley Industrial Automation Products for a full spectrum of control, drive, HMI, and accessory solutions.
