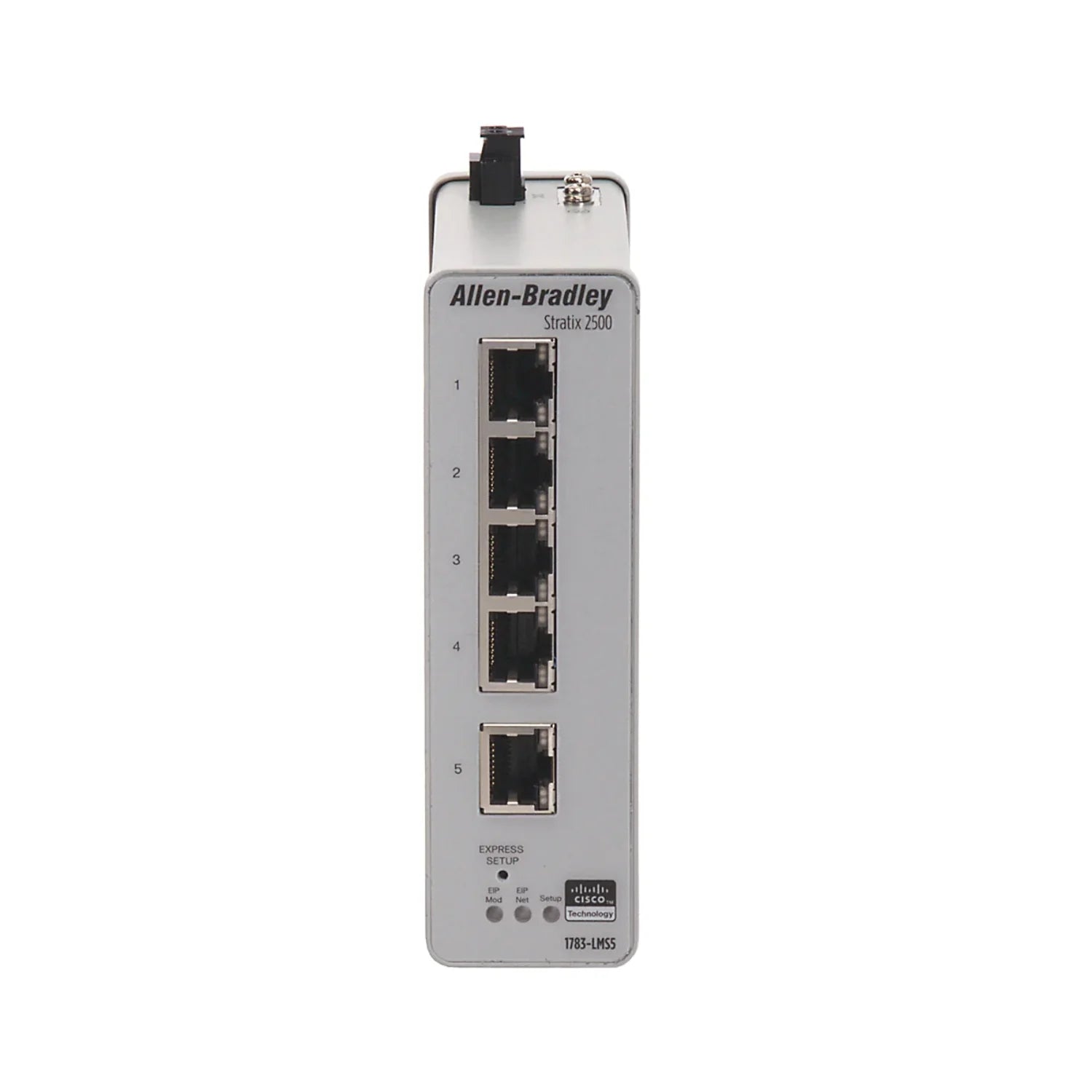

llen Bradley 1783-LMS5

Overview

The Allen Bradley 1783-LMS5 Stratix 2500 is a high-performance, lightly managed Ethernet switch meticulously engineered for the demanding conditions of industrial environments. This robust 5-port switch delivers a comprehensive, yet user-friendly, solution for establishing reliable and secure network connectivity within your operational infrastructure. Designed to balance advanced functionality with cost-effectiveness, the 1783-LMS5 seamlessly integrates into a variety of industrial automation applications, providing essential Layer 2 networking capabilities, enhanced port security, and straightforward diagnostics. Its compact design and versatile mounting options make it an ideal choice for small to medium-sized industrial networks requiring dependable data transmission and basic network oversight without the complexity of a fully managed switch.

As part of the renowned Stratix 2500 family from Allen-Bradley, a leader in industrial automation, the 1783-LMS5 upholds a legacy of quality, durability, and performance. It ensures efficient communication between critical industrial devices, contributing to smoother operations, improved productivity, and enhanced network intelligence across your facility. This switch is not just a connectivity device; it's an integral component for building a resilient and adaptive industrial network that can meet the challenges of modern manufacturing and process control systems.

Key Features

• 5 Fast Ethernet RJ45 Ports: Equipped with five 10/100Mbps RJ45 copper ports, providing reliable high-speed data transfer for numerous industrial devices.
• Lightly Managed Functionality: Offers essential network configuration and security features including VLANs, QoS, and port security, enabling basic control and optimization.
• Industrial Grade Design: Features a rugged IP30-rated enclosure, protecting against dust and environmental factors prevalent in harsh industrial settings.
• Flexible Power Input: Operates efficiently with a 12-24V DC power input, allowing for versatile installation options across various industrial power systems.
• DIN Rail Mounting: Designed for easy and secure installation on a standard DIN rail, optimizing space and simplifying deployment within control cabinets.
• Enhanced Network Diagnostics: Supports simple diagnostic tools and functions like port mirroring and rate limiting for proactive network monitoring and troubleshooting.
• Optimized for Performance: Delivers consistent and reliable Layer 2 switching capabilities, ensuring smooth data flow for critical industrial applications.

Technical Specifications

• Model: 1783-LMS5
• Ethernet Ports: 5 x 10/100Mbps RJ45
• Power Supply: 12-24V DC
• Mounting: DIN rail
• Enclosure Rating: IP30
• Management Features: VLANs, QoS, Port Security, SNMP, Port Mirroring, Rate Limiting
• Operating Temperature: -40 to 70°C (-40 to 158°F)

Applications

• Industrial Automation Networks: Provides robust and secure connectivity for PLCs, HMIs, and other control devices in automated systems.
• Manufacturing Plants and Process Control: Ideal for building dependable network infrastructure in demanding manufacturing and process control environments.
• Factory Automation and Machine-Level Networking: Effectively connects machine-level devices, enabling seamless data exchange and control for optimized production.
• IoT and Smart Manufacturing Connectivity: Supports the integration of IoT devices and sensors, fostering data-driven decision-making in smart manufacturing initiatives.
• Building Automation Systems: Can be deployed for reliable network segmentation and device connectivity within smart building infrastructure.
• Remote Monitoring and SCADA Systems: Facilitates secure and consistent data transmission for remote monitoring and supervisory control and data acquisition (SCADA) applications.

Why Choose This Model?

• Cost-Effective Industrial Networking: Offers a powerful blend of essential managed features and robust construction without the premium cost of a fully managed switch.
• Simplified Deployment and Management: Its "lightly managed" nature allows for basic configurations and diagnostics, making it accessible for users without extensive IT expertise.
• Exceptional Durability: The IP30-rated enclosure and wide operating temperature range ensure unwavering performance even in the most challenging industrial conditions.
• Enhanced Network Security: Features like port security and VLANs provide a foundational layer of defense, protecting critical industrial data from unauthorized access.
• Reliable Data Transmission: Quality of Service (QoS) support prioritizes critical traffic, guaranteeing consistent and uninterrupted communication for sensitive industrial applications.
• Seamless Integration with Allen-Bradley Ecosystem: As an Allen-Bradley product, it integrates effortlessly into existing Rockwell Automation architectures, simplifying system design and maintenance.
