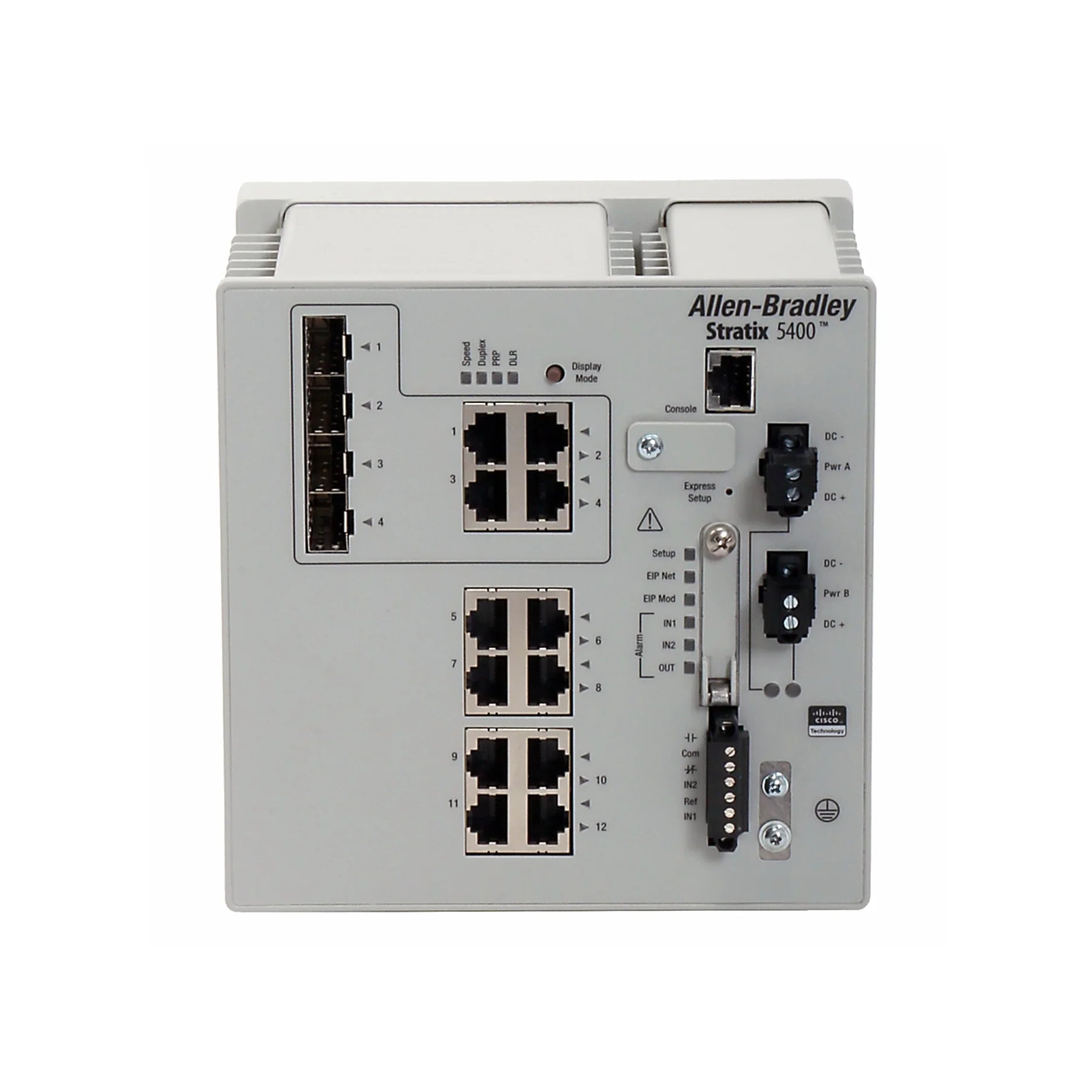

Allen-Bradley 1783-HMS8T4CGN

Overview

Unlock robust and reliable network performance in your industrial environment with the Allen-Bradley 1783-HMS8T4CGN Stratix 5400 Managed Layer 2 Ethernet Switch. Engineered for demanding applications, this high-performance switch from the trusted Stratix 5400 series delivers essential Layer 2 switching capabilities in a compact, DIN-rail mountable form factor. Featuring 8 Fast Ethernet copper ports and 4 versatile combo copper/SFP ports, it provides flexible connectivity options to integrate your devices seamlessly. Designed for resilient operation, the 1783-HMS8T4CGN boasts dual 12–60V DC power inputs for enhanced reliability and a rugged IP30-rated enclosure. It's the ideal solution for mid-tier industrial networking, cell-level automation, and workgroup applications requiring basic yet secure managed switching.

Key Features

• Versatile Connectivity: Equipped with 8 Fast Ethernet (10/100 Mbps) copper ports and 4 combo Gigabit Ethernet (10/100/1000 Mbps) copper/SFP ports, offering flexible options for diverse network topologies and future expansion.
• Industrial-Grade Reliability: Designed for harsh industrial environments with an IP30 protection rating and a wide operating temperature range (-40°C to +60°C), ensuring consistent performance where it matters most.
• Layer 2 Managed Switching: Provides essential Layer 2 features such as VLANs for network segmentation, IGMP snooping for efficient multicast traffic management, QoS for traffic prioritization, and robust port security.
• Redundant Power Inputs: Dual 12–60V DC power inputs enhance system uptime and reliability, safeguarding against power supply failures in critical operations.
• Compact DIN-Rail Design: Space-saving form factor allows for easy installation and integration into existing industrial control panels and cabinets.
• Seamless Rockwell Automation Integration: Optimized for easy setup and integration within Rockwell Automation architectures, simplifying network management and configuration.
• Global Availability: The 1783-HMS8T4CGN is in stock and available for immediate worldwide shipping, ensuring you get your critical network components when you need them.

Technical Specifications

• Brand: Allen-Bradley / Rockwell Automation
• Series: Stratix 5400
• Part Number: 1783-HMS8T4CGN
• Type: Managed Ethernet Switch (Layer 2)
• Software: Layer 2 (Lite firmware)
• Total Ports: 12
• Copper Ports: 8 × 10/100 Mbps RJ45 (Fast Ethernet)
• Combo Ports: 4 × 10/100/1000 Mbps (Gigabit Ethernet, copper or SFP)
• Power Input: 12–60V DC (Dual inputs for redundancy)
• Mounting: DIN rail
• Protection Rating: IP30
• Operating Temperature: -40°C to +60°C
• Certifications: UL, CSA, CE
• Condition: New

Applications

• Industrial Control Panels & Machine Networks: Ideal for providing reliable connectivity for PLCs, HMIs, sensors, and other devices within automated machinery and control systems.
• Entry-Level Managed Switch Solutions: Perfect for applications requiring basic managed switching functionalities without the complexity of higher-layer capabilities.
• Distributed I/O & Device Connectivity: Connect and manage remote I/O modules, smart sensors, and other field devices across your plant floor.
• Network Segmentation & Security: Utilize VLANs and port security features to segment your industrial network, isolating critical traffic and enhancing overall security.
• OEM & Factory Floor Installations: A robust and cost-effective solution for original equipment manufacturers and for expanding network capabilities on the factory floor.
• Workgroup & Cell-Level Networks: Provides reliable and manageable connectivity for smaller segments of your industrial network, enabling efficient communication between devices in a specific operational cell.

Why Choose This Model?

• Proven Allen-Bradley Quality: Benefit from the renowned reliability and performance associated with Allen-Bradley industrial automation products, ensuring long-term operational stability.
• Optimized for Industrial Use: Built to withstand demanding environments, offering superior resilience compared to commercial-grade switches, leading to fewer disruptions and reduced maintenance.
• Cost-Effective Layer 2 Management: Gain essential network management capabilities like VLANs and QoS without investing in more complex and expensive Layer 3 switches, perfect for targeted applications.
• Flexible Connectivity for Growth: The combination of Fast Ethernet and versatile Gigabit combo ports allows for both standard device connection and high-speed uplinks or fiber expansion, making it adaptable to future needs.
• Enhanced Network Reliability: Dual power inputs provide critical redundancy, minimizing downtime and ensuring continuous operation of your vital industrial processes.
• Streamlined Integration: Designed to fit effortlessly into Rockwell Automation ecosystems, simplifying deployment and configuration for engineers and technicians already familiar with the platform.

Order Now

Revolutionize your industrial network with the Allen-Bradley 1783-HMS8T4CGN Stratix 5400 Managed Layer 2 Ethernet Switch. Experience unparalleled reliability, flexible connectivity, and robust performance in a compact, industrial-grade package. This crucial component for secure and efficient industrial automation is in stock and ready for immediate worldwide shipping.
