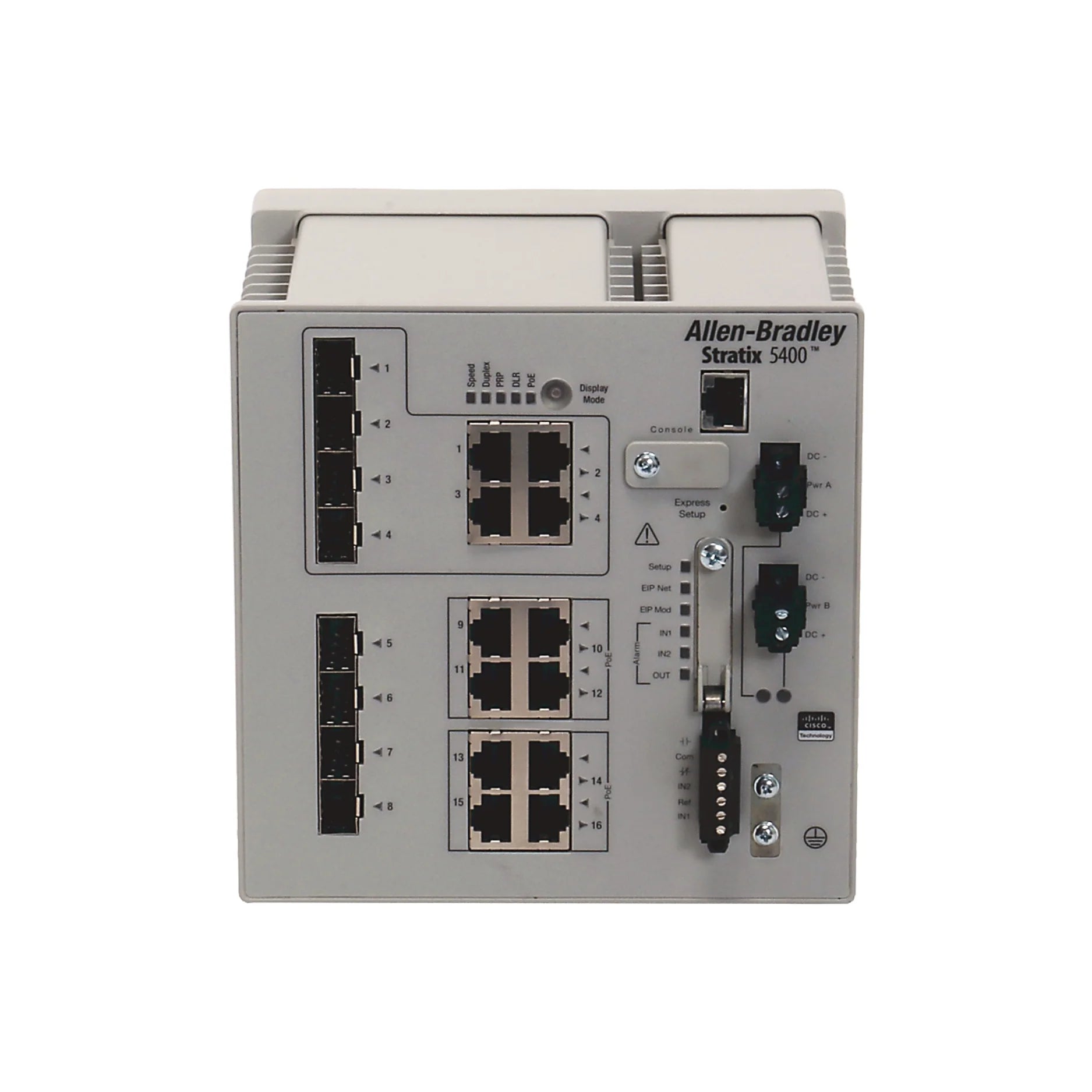

Allen-Bradley 1783-HMS4SG8EG4CGR

Overview

Unlock unparalleled industrial network performance with the Allen-Bradley 1783-HMS4SG8EG4CGR Stratix 5400 Managed Layer 3 Ethernet Switch. Engineered by Rockwell Automation, this robust switch delivers advanced Layer 3 routing capabilities, integrated Power over Ethernet (PoE), and flexible fiber connectivity, making it the ideal solution for demanding industrial environments. Designed for efficiency and resilience, the 1783-HMS4SG8EG4CGR provides the high-bandwidth backbone essential for modern smart manufacturing, process control, and automation systems.

Featuring a versatile port configuration, including 4 combo copper/SFP ports, 8 PoE-enabled RJ45 ports, and 4 dedicated SFP slots, this Stratix 5400 model ensures seamless integration and scalability within complex network architectures. Its comprehensive software features, combined with industrial-grade durability, guarantee reliable operation even in the harshest conditions. From powering IP cameras and sensors to facilitating redundant network segmentation, the 1783-HMS4SG8EG4CGR is the cornerstone for a future-ready industrial Ethernet network.

Key Features

• Advanced Layer 3 Routing & Switching: Optimize industrial network traffic with robust OSPF and PIM routing protocols, enhancing efficiency and segmentation.
• Integrated Power over Ethernet (PoE): Power up to 8 field devices directly, simplifying wiring and deployment of IP cameras, sensors, wireless access points, and HMIs.
• Flexible Connectivity with Combo Ports: Utilize 4 versatile ports as either Gigabit copper or SFP fiber connections, adapting to your specific network infrastructure needs.
• Dedicated SFP Slots for Fiber Uplinks: Expand network reach and ensure high-speed, long-distance data transmission with 4 dedicated gigabit SFP fiber optic ports.
• Comprehensive Full Software Suite: Benefit from advanced features like VLANs, IGMP snooping, DHCP server, NAT, and extensive security protocols for complete network control.
• Industrial-Grade Design & Durability: With DIN rail mounting, IP30 protection, and a wide operating temperature range (-40°C to +60°C), it's built for harsh environments.
• Redundant Power Input: Ensure continuous operation and maximum uptime with support for dual 12-60V DC power inputs.

Technical Specifications

• Brand: Allen-Bradley / Rockwell Automation
• Series: Stratix 5400
• Part Number: 1783-HMS4SG8EG4CGR
• Switch Type: Managed, Layer 3 Ethernet Switch
• Software: Full firmware (supports advanced routing, VLANs, QoS, security)
• Total Ports: 16
• Combo Ports: 4 × 10/100/1000 Mbps Copper or SFP
• PoE RJ45 Ports: 8 × 10/100/1000 Mbps (IEEE 802.3af/at compliant)
• Dedicated SFP Slots: 4 × 10/100/1000 Mbps
• Power Input: 12–60V DC (redundant input support)
• Mounting: DIN rail
• Protection Rating: IP30
• Operating Temperature: -40°C to +60°C
• Certifications: UL, CSA, CE
• Condition: New

Applications

• Industrial Automation & Control Systems: Provide a reliable, high-performance network foundation for PLCs, HMIs, and motion control systems.
• Smart Manufacturing & IIoT Networks: Connect and power a multitude of IIoT devices, sensors, and intelligent machines to enable data-driven operations.
• PoE-Powered Device Networks: Ideal for deploying and powering IP cameras, access control systems, Voice over IP (VoIP) phones, and other PoE-compatible devices in industrial settings.
• Redundant & Segmented Layer 3 Architectures: Create highly available and secure networks with advanced routing, VLANs, and redundant links to prevent downtime.
• Factory Floor & Plant-Wide Ethernet Backbones: Build resilient, high-bandwidth communication networks across entire industrial facilities.
• Remote Monitoring & SCADA Systems: Ensure secure and efficient data transfer for critical infrastructure and remote asset management.

Why Choose This Model?

• Optimize Network Performance: Layer 3 routing significantly improves network efficiency and reduces latency in complex industrial topologies.
• Simplify Deployment & Reduce Costs: PoE capabilities eliminate the need for separate power supplies, streamlining installation and saving on cabling costs.
• Future-Proof Your Infrastructure: A blend of copper and fiber ports, along with advanced software features, ensures adaptability to evolving network demands.
• Rugged & Reliable Operation: Built to Allen-Bradley's stringent industrial standards, guaranteeing continuous operation in harsh environmental conditions.
• Enhanced Network Security: Comprehensive security features protect critical industrial data and prevent unauthorized access.
• Global Availability & Support: This essential component is readily available for fast worldwide delivery, backed by Rockwell Automation's reputation.

Order Now

Elevate your industrial network infrastructure with the Allen-Bradley 1783-HMS4SG8EG4CGR Stratix 5400 Managed Layer 3 Ethernet Switch. Experience superior performance, flexibility, and reliability for your most demanding applications. Contact us today for pricing and availability, or explore our complete range of Stratix Switches and Allen-Bradley Industrial Automation Products to find the perfect solutions for your operational needs. Ships worldwide.
