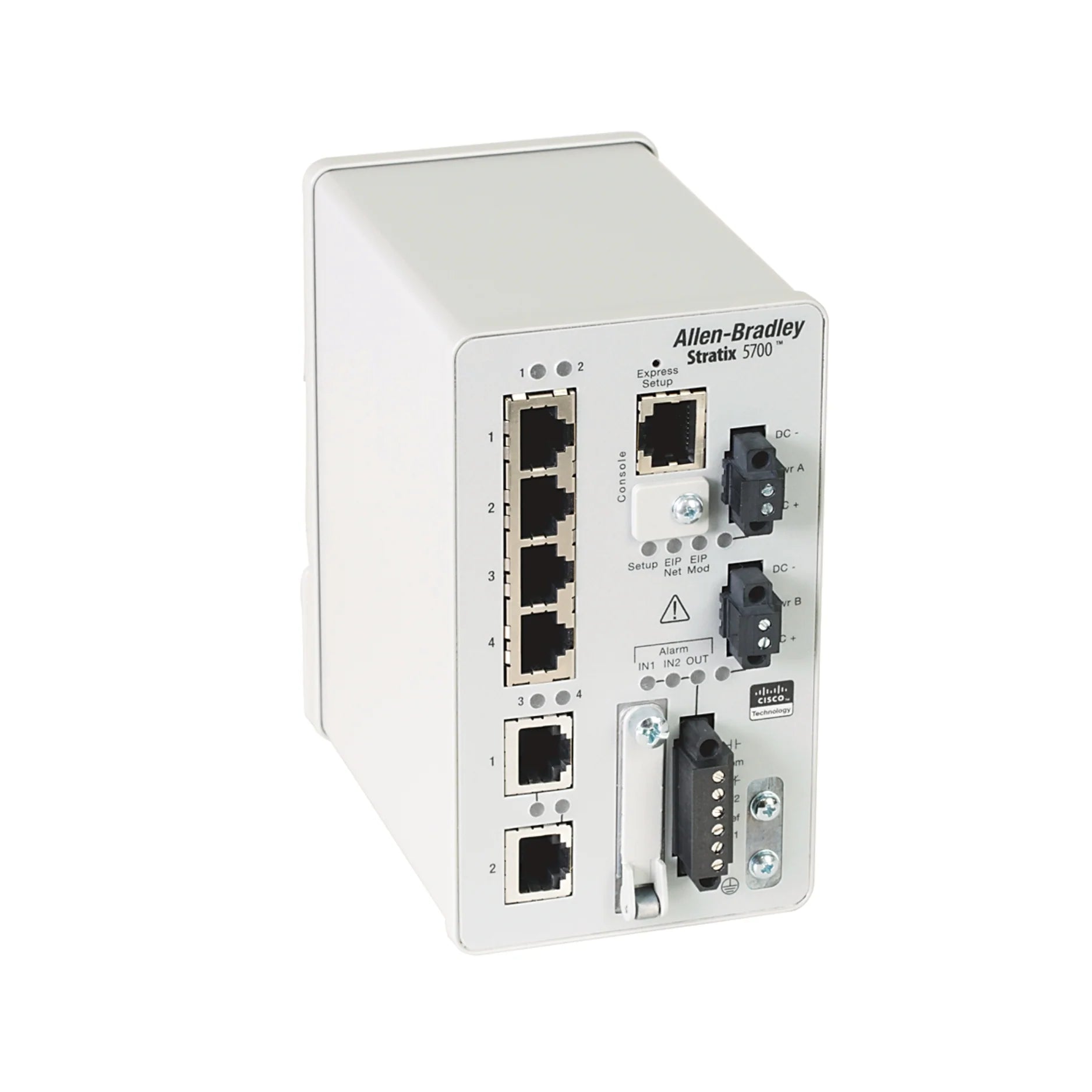

Allen-Bradley 1783-BMS06TGA

Overview

The Allen-Bradley 1783-BMS06TGA Stratix 5700 Managed Ethernet Switch is engineered to deliver unwavering performance and security in the most demanding industrial automation environments. This robust device combines advanced Layer 2 switching capabilities with a compact, rugged design, making it an ideal choice for critical network infrastructure in factories, plants, and remote facilities. With its powerful feature set and seamless integration with Rockwell Automation systems, the 1783-BMS06TGA ensures optimal network uptime and efficient data flow, crucial for modern industrial operations. Its high-speed connectivity options and resilient power design guarantee continuous operation even in challenging conditions, providing a solid foundation for your industrial control systems.

Key Features

• Industrial-Grade Reliability: Designed to withstand extreme temperatures (-40°C to +60°C) and harsh industrial conditions with an IP30-rated enclosure.
• Versatile Port Configuration: Equipped with 6 Fast Ethernet (10/100 Mbps) ports and 2 Gigabit copper (100/1000 Mbps RJ45) ports for flexible connectivity and high-bandwidth applications.
• Redundant Power Inputs: Dual 24/48V DC power inputs provide essential power redundancy, safeguarding against power interruptions and enhancing system availability.
• Full Software Management: Fully managed switch with comprehensive Stratix software, offering advanced Layer 2 features for secure and optimized network segmentation and control.
• Seamless Rockwell Integration: Effortlessly integrates with Rockwell's Studio 5000 software and utilizes Add-On Profiles for simplified configuration, diagnostics, and system management.
• Compact DIN Rail Mounting: Optimized for space-constrained industrial control panels with easy DIN rail mounting.
• Global Certifications: UL, CSA, and CE certified, ensuring compliance with international safety and quality standards across various markets.

Technical Specifications

• Brand: Allen-Bradley / Rockwell Automation
• Series: Stratix 5700
• Part Number: 1783-BMS06TGA
• Type: Managed Ethernet Switch
• Total Ports: 8
• Port Configuration:
  • 6 × 10/100 Mbps Fast Ethernet
  • 2 × 100/1000 Mbps copper (RJ45)
• Power Supply: 24/48V DC nominal (12–60V DC range)
• Power Input Connectors: 2
• Mounting: DIN rail
• Software: Full firmware version
• Protection Rating: IP30
• Operating Temperature Range: -40°C to +60°C
• Certifications: UL, CSA, CE
• Condition: New

Applications

• Industrial Automation & Control: Providing reliable and secure network connectivity for PLCs, PACs, and other control devices in automated systems.
• Machine Networks: Ideal for integrating and managing communication between machinery and robotics on the factory floor, ensuring high-speed data exchange.
• SCADA & HMI Infrastructure: Building robust and secure network backbones for Supervisory Control and Data Acquisition (SCADA) systems and Human-Machine Interfaces (HMIs).
• Manufacturing Plant Floor Networking: Enhancing the overall efficiency and data integrity of manufacturing operations through a resilient and high-performance network.
• Process Control Systems: Supporting critical process control applications that demand unwavering uptime and precise data delivery.
• OEM Solutions: A perfect choice for Original Equipment Manufacturers looking to integrate a dependable and feature-rich industrial switch into their solutions.

Why Choose This Model?

• Unmatched Reliability: Engineered by Allen-Bradley, a leader in industrial automation, this switch guarantees long-term stability and performance in the toughest conditions.
• Enhanced Network Security: With full management capabilities and robust software, the 1783-BMS06TGA allows for secure network segmentation and access control, protecting your critical assets.
• Future-Proof Connectivity: The combination of Fast Ethernet and Gigabit ports provides the necessary bandwidth for current applications while offering scalability for future network expansion.
• Simplified Integration: Designed for seamless compatibility with Rockwell Automation's ecosystem, reducing setup time and complexity in existing or new installations.
• Space-Saving Design: Its compact DIN rail mountable form factor efficiently fits into industrial control cabinets without sacrificing performance or functionality.
• Global Support & Compliance: Backed by Allen-Bradley's worldwide reputation and holding key international certifications, ensuring peace of mind and broad applicability.

Order Now

Elevate your industrial network's performance and reliability with the Allen-Bradley 1783-BMS06TGA Stratix 5700 Managed Ethernet Switch. This essential component is available and ready to ship worldwide. Explore our full range of Stratix Switches or delve into the complete Allen-Bradley Industrial Automation Products master category for controllers, drives, motors, HMIs, and more.
