Allen-Bradley 1769-OF8C

Overview

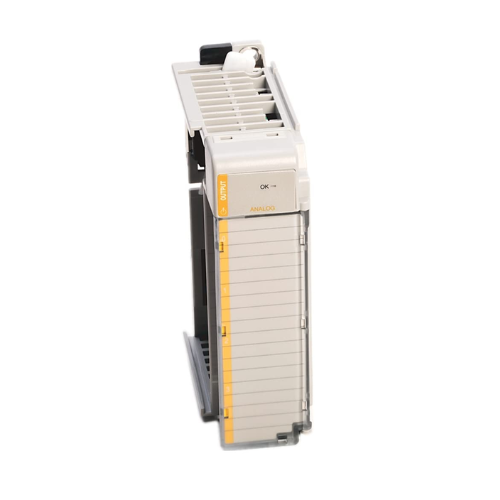

Unlock superior control and precision in your industrial automation systems with the Allen-Bradley 1769-OF8C CompactLogix 8-Channel Analog Output Module. Engineered for seamless integration within CompactLogix and MicroLogix 1500 platforms, this robust module provides eight independent, single-ended current outputs, supporting standard ranges of 0–20 mA and 4–20 mA. Designed to meet the demanding requirements of process control and analog signal generation, the 1769-OF8C ensures highly accurate and reliable signal delivery for a diverse array of applications. Whether you're controlling critical actuators, regulating variable speed drives, or operating precision valves, this module delivers the consistent performance and unwavering reliability expected from Allen-Bradley. Its compact design optimizes valuable cabinet space while offering flexible mounting options, making it an ideal choice for new installations and system upgrades.

Key Features

• 8 High-Precision Analog Output Channels: Provides eight individually controllable, single-ended current outputs for granular control.
• Versatile Current Output Ranges: Supports industry-standard 0–20 mA and 4–20 mA, along with full-scale ranges of 0–21 mA and 3.2–21 mA, accommodating various field devices.
• Exceptional Accuracy and Stability: Guarantees precise and consistent analog signal generation, crucial for sensitive control applications, with an accuracy of ±0.5% full scale @ 25°C.
• Seamless CompactLogix and MicroLogix 1500 Compatibility: Designed for effortless integration into existing and new Allen-Bradley control architectures.
• Space-Saving Compact Design: Optimizes control cabinet real estate with a sleek, efficient footprint, offering both DIN rail and panel mounting flexibility.
• Robust Industrial Performance: Built to withstand challenging industrial environments, ensuring long-term reliability and minimal downtime.
• High Resolution Output: Features 15-bit (unipolar) resolution for fine-tuned control over output signals.

Technical Specifications

• Catalog Number: 1769-OF8C
• Series: Compact I/O
• Output Type: Current
• Channels: 8 (single-ended)
• Normal Operating Ranges: 0–20 mA, 4–20 mA
• Full-Scale Ranges: 0–21 mA, 3.2–21 mA
• Resolution: 15 bits (unipolar)
• Accuracy: ±0.5% full scale @ 25°C
• Mounting: DIN rail or panel
• Compatible Platforms: CompactLogix, MicroLogix 1500
• Operating Temperature: 0°C to +60°C
• Weight: Approximately 400 g

Applications

• Advanced Process Automation: Ideal for precisely controlling analog actuators, smart instruments, and loop controllers in diverse industries such as chemical, pharmaceutical, and food & beverage.
• Precision Machine Control: Provides the accurate current outputs necessary for driving proportional valves, motor speed controllers, and other critical components in automated machinery.
• HVAC and Environmental Control Systems: Regulate dampers, fan speeds, and other environmental parameters in commercial and industrial HVAC applications with fine-tuned analog signals.
• Test and Measurement Systems: Generate highly stable and accurate current signals for calibration, testing, and simulation in various laboratory and industrial settings.
• OEM System Integration: Offers a compact and reliable analog output solution for original equipment manufacturers seeking to embed robust control capabilities into their specialized machinery.
• Water and Wastewater Treatment: Control flow rates, chemical dosing pumps, and other critical processes requiring accurate current outputs in municipal and industrial water management.

Why Choose This Model?

• Maximize Control Efficiency: With eight high-resolution channels, the 1769-OF8C allows for extensive analog output control in a single module, streamlining your system architecture.
• Unmatched Allen-Bradley Reliability: Invest in the proven durability and performance synonymous with Allen-Bradley, ensuring long-term operational stability and reduced maintenance.
• Space-Saving Advantage: Its compact form factor is perfect for installations where cabinet space is at a premium, without compromising on functionality or performance.
• Global Compatibility and Support: Benefit from easy integration into widely adopted Allen-Bradley platforms and access to their extensive global support network.
• Cost-Effective Solution: Achieve high-density analog output capabilities with a single, integrated module, optimizing both hardware costs and installation time.
• Future-Proof Your System: Designed to integrate seamlessly with evolving CompactLogix and MicroLogix 1500 systems, protecting your investment for years to come.

Order Now

Elevate your control system's capabilities with the Allen-Bradley 1769-OF8C CompactLogix 8-Channel Analog Output Module. This essential component for precision process and machine control is currently in stock and available for global shipping. Enhance your CompactLogix or MicroLogix 1500 system with reliable, high-accuracy analog current output today.
