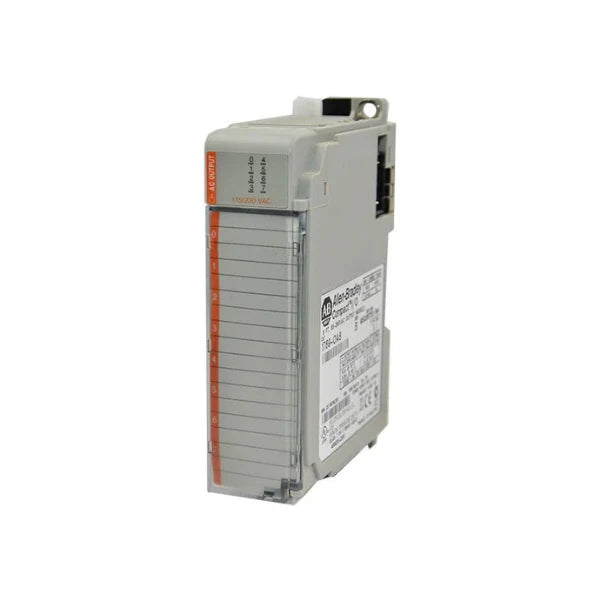

Allen-Bradley 1769-OA8

Overview

Elevate your industrial control systems with the Allen-Bradley 1769-OA8 Compact I/O AC Output Module. Expertly engineered for seamless integration with CompactLogix and MicroLogix 1500 controllers, this robust module delivers eight (8) reliable AC outputs. It's the ideal solution for precisely controlling a diverse array of AC-powered devices, including motors, solenoids, and lighting, across a multitude of industrial automation applications. The 1769-OA8 is designed for unwavering performance, featuring built-in diagnostics and broad compatibility with various input voltages, ensuring your operations run smoothly and efficiently.

Key Features

• Optimized Compact Design: Integrates effortlessly and efficiently within both CompactLogix and MicroLogix 1500 control systems, saving valuable panel space.
• Versatile Wide Voltage Range: Operates flawlessly across an extensive AC voltage spectrum (85 to 265V AC), providing exceptional compatibility and flexibility for diverse geographical and application requirements.
• Enhanced Output Diagnostics: Equipped with intuitive LED indicators for each individual output point, enabling rapid and accurate status verification and simplifying troubleshooting.
• Superior Isolation Voltage: Features a high 1500V AC isolation voltage (point to system), guaranteeing safe and secure operation by effectively separating sensitive control electronics from power circuits.
• Exceptional Power Efficiency: Designed with minimal backplane current requirements (120 mA at 5V DC, 95 mA at 24V DC), significantly reducing the overall system load and contributing to energy savings.
• High Output Current Capacity: Delivers a robust 0.5A per point and up to 4A per module, capable of driving demanding industrial loads with confidence and stability.
• Rapid Response Times: Ensures swift control with an impressive 1ms ON state output delay and a 9ms OFF state output delay, critical for time-sensitive applications.

Technical Specifications

• Module Type: AC Output Module
• Model Number: 1769-OA8
• Number of Outputs: 8
• Voltage Rating: 85 to 265V AC
• Output Current: 0.5A per point; 4A per module (maximum)
• Backplane Current: 120 mA at 5V DC; 95 mA at 24V DC
• Isolation Voltage: 1500V AC (point to system)
• Output Delay: 1ms (ON state); 9ms (OFF state)
• Dimensions: 118 x 87 x 35 mm
• Operating Temperature: 0 to 60°C (32 to 140°F)

Applications

• Industrial Automation Command: Precisely controls actuators, industrial motors, solenoids, and a wide variety of other AC-driven equipment in factories and manufacturing plants.
• Smart Building Management: Optimally operates and manages critical building systems, including advanced HVAC setups, integrated lighting networks, and automated door access controls.
• Rigorous Process Control: Perfectly suited for monitoring, regulating, and controlling intricate manufacturing and chemical processes, ensuring consistent quality and efficiency.
• Material Handling Systems: Provides reliable control for conveyors, robotic arms, and automated guided vehicles (AGVs) within warehousing and logistics operations.
• Packaging Machinery Control: Enables precise operation of various packaging equipment, from fillers to sealers, ensuring high-speed and accurate production.
• Energy Management Solutions: Supports smart grid applications and industrial energy management systems by controlling AC loads efficiently.

Why Choose This Model?

• Unmatched Reliability: Built with Allen-Bradley's renowned quality manufacturing standards, ensuring long-term stable performance in demanding industrial environments.
• Seamless Integration: Specifically designed for effortless compatibility with existing CompactLogix and MicroLogix 1500 systems, simplifying upgrades and expansions.
• Enhanced Operational Safety: High isolation voltage provides critical protection for your control circuitry and personnel, minimizing risks associated with power fluctuations.
• Cost-Effective Solution: Its compact size, efficient power usage, and reliable operation contribute to reduced operational costs and a better return on investment over the product's lifecycle.
• Simplified Maintenance: The inclusion of LED diagnostics for each output quickly identifies issues, drastically cutting down on troubleshooting time and potential downtime.
• Versatility in Application: With its wide voltage range and robust output capabilities, this module is adaptable to a broad spectrum of industrial and commercial control scenarios.

Order Now

Harness the power of precise AC control with the Allen-Bradley 1769-OA8 Compact I/O AC Output Module. This essential component offers unparalleled reliability, integration, and performance for your industrial automation needs. Enhance your system's capabilities today by incorporating this advanced module. Explore our comprehensive selection of CompactLogix Controllers and a full range of Allen-Bradley Industrial Automation Products to complete your setup. Secure your Allen-Bradley 1769-OA8 and optimize your operations now!
