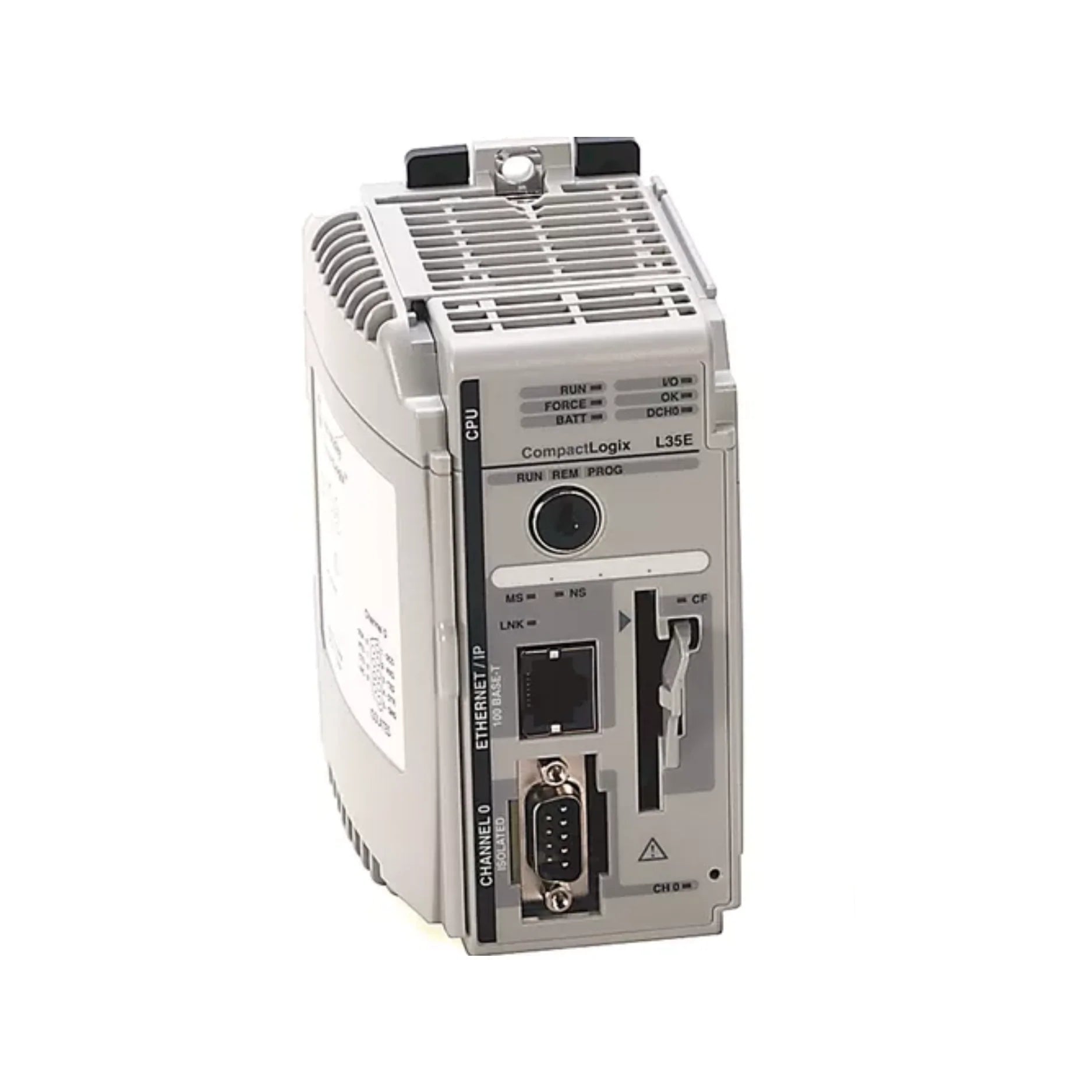

Allen-Bradley 1769-L35E

Overview

Unlock enhanced control and scalability with the Allen-Bradley 1769-L35E CompactLogix Ethernet Controller. Engineered for optimal performance in mid-sized automation applications, this robust Programmable Logic Controller (PLC) provides a powerful combination of memory capacity, versatile communication options, and expansive I/O support. The 1769-L35E is an indispensable component for modern industrial systems requiring reliable and efficient operation, ensuring seamless integration and superior control over complex processes. Its compact design belies its powerful capabilities, making it a favorite among engineers seeking high performance without sacrificing valuable panel space.

Key Features

• Generous 1.5MB User Memory: Provides ample space for intricate control programs and data, accommodating demanding applications.
• Integrated EtherNet/IP Port: Delivers high-speed 10/100 Mbps network communication for efficient data exchange and system integration.
• Versatile RS-232 Serial Port: Offers flexible connectivity with support for industry-standard DF1 and ASCII protocols, enhancing compatibility.
• Extensive I/O Expansion: Capable of supporting up to 30 Compact I/O modules across three banks for highly scalable automation solutions.
• Optional CompactFlash Support: Allows for simplified program backup and non-volatile data storage using a 1784-CF128 card.
• Rugged Industrial Design: Built to withstand harsh industrial environments with an operating temperature range of 0°C to +60°C.

Technical Specifications

• Model: 1769-L35E
• Series: CompactLogix
• User Memory: 1.5MB
• Communication Ports: 1 x EtherNet/IP (10/100 Mbps), 1 x RS-232 Serial
• I/O Expansion: Up to 30 Compact I/O modules, max 3 I/O banks with 2 expansion cables
• CompactFlash Support: Optional 1784-CF128
• Backplane Current Draw: 660 mA @ 5V DC, 90 mA @ 24V DC
• Operating Temperature: 0°C to +60°C (32°F to 140°F)
• Dimensions (H x W x D): Approximately 7.62 cm x 10.92 cm x 20.19 cm
• Weight: Approximately 0.426 kg
• Certifications: CE, UL, c-UL, Class I Div 2, ATEX

Applications

• Advanced Manufacturing Process Control: Ideal for managing complex sequences and interlocks in manufacturing lines.
• High-Throughput Material Handling Systems: Optimizes the control of conveyors, robotics, and automated storage/retrieval systems.
• Precision Packaging Machinery: Ensures accuracy and speed in packaging, labeling, and sealing operations.
• Sophisticated Building Automation Systems: Provides centralized control for HVAC, lighting, and security infrastructure in commercial buildings.
• Water and Wastewater Treatment Plants: Manages pumping stations, filtration processes, and chemical dosing with high reliability.
• Energy Monitoring and Management: Integrates with sensors and actuators to optimize energy consumption in industrial facilities.

Why Choose the Allen-Bradley 1769-L35E?

• Unmatched Performance: Its 1.5MB memory and fast processor ensure efficient execution of complex control algorithms, reducing cycle times and improving productivity.
• Seamless Network Integration: The built-in EtherNet/IP port simplifies connectivity to other devices, HMI panels, and SCADA systems, fostering a truly integrated automation environment.
• Exceptional Scalability: With support for up to 30 I/O modules, the 1769-L35E can adapt to evolving application requirements, providing a future-proof solution.
• Reliability and Durability: As an Allen-Bradley product, the 1769-L35E is built to Allen-Bradley's exacting standards for industrial use, ensuring long-term operation even in challenging conditions.
• Ease of Programming: Compatible with Rockwell Software's Studio 5000 Logix Designer, it offers a familiar and powerful environment for programming, configuration, and maintenance.
• Global Certifications: With CE, UL, c-UL, Class I Div 2, and ATEX certifications, the 1769-L35E meets stringent international safety and performance standards.

Order Now

Equip your industrial operations with the power and flexibility of the Allen-Bradley 1769-L35E CompactLogix Ethernet Controller. Benefit from fast shipping and reliable worldwide delivery. Enhance your control systems today.
