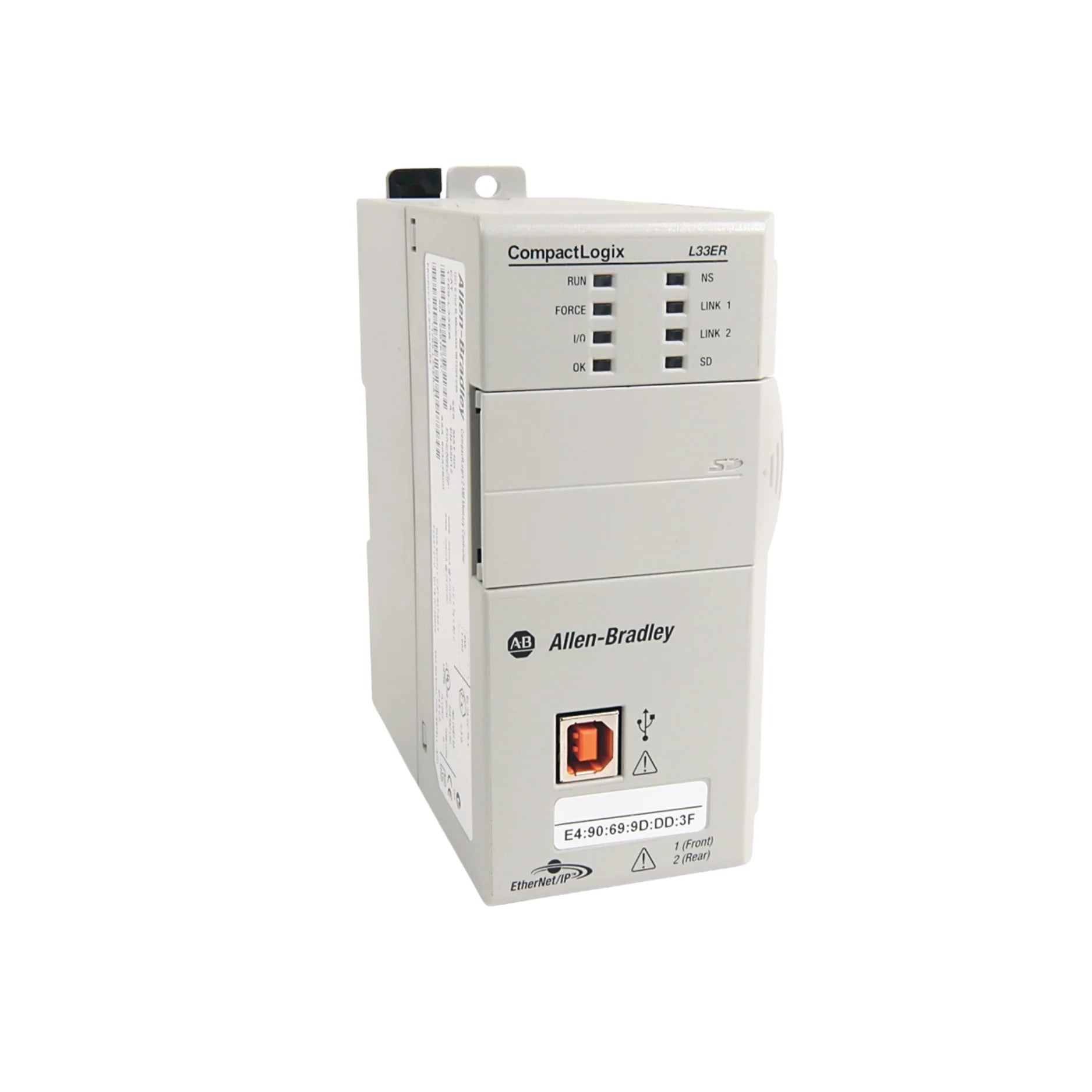

Allen-Bradley 1769-L33ERK

Overview

The Allen-Bradley 1769-L33ERK is a powerful and reliable CompactLogix 5370 L3 controller engineered for demanding industrial applications. This robust controller boasts a substantial 2MB of user memory, providing ample capacity for complex control programs. Equipped with dual Ethernet/IP ports and Device Level Ring (DLR) capability, it ensures seamless and resilient communication within your automation network. Its conformal coating offers superior protection against corrosion and moisture, making it an ideal choice for the harshest operating conditions. Furthermore, the 1769-L33ERK supports SD card storage for easy firmware updates and data backup, enhancing operational flexibility and system maintainability. Designed for mid-size control systems, this controller delivers exceptional performance, reliability, and expandability, making it a cornerstone for efficient and robust process automation.

Key Features

• Expansive 2MB User Memory: Accommodate intricate control logic and extensive data handling for advanced applications.
• Dual Ethernet/IP with DLR: Ensure high-speed, fault-tolerant communication within your industrial network for maximum uptime.
• Conformal Coating: Provides enhanced protection against humidity, chemicals, and extreme temperatures, prolonging lifespan in challenging environments.
• USB Programming Port: Facilitates convenient local configuration and troubleshooting with a standard USB Type B connection.
• SD Card Support (up to 2GB): Enables effortless firmware management, data logging, and system backup for improved operational efficiency.
• Integrated Motion Control: Supports 4 axes of motion via Ethernet/IP, streamlining machine design and reducing cabling complexity.
• Scalable I/O Expansion: Connect up to 16 Allen-Bradley 1769 Compact I/O modules, allowing for flexible system expansion to meet growing needs.

Technical Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation
• Part Number: 1769-L33ERK
• Controller Type: CompactLogix 5370 L3
• User Memory: 2MB
• Conformal Coating: Yes
• EtherNet/IP Ports: 2 (with DLR support)
• USB Port: 1 (Type B)
• I/O Expansion: Up to 16 local 1769 I/O modules
• EtherNet/IP Nodes: Up to 32
• SD Card Support: Yes (up to 2GB)
• Motion Control: 4 axes (via Ethernet/IP)
• Mounting: DIN rail or panel mount
• Operating Temperature: 0 to 60 °C
• Dimensions: 118 mm x 87 mm x 87 mm
• Weight: Approximately 0.5 kg
• Certifications: CE, cULus, ATEX, IECEx

Applications

• High-Reliability Machine Control: Ideal for critical machinery requiring precise and uninterrupted operation in manufacturing and automation.
• Harsh Industrial Environments: The conformal coating makes it perfect for applications exposed to moisture, dust, and corrosive elements.
• Process Automation: Seamlessly integrate into process control systems leveraging robust Ethernet/IP communication for distributed control.
• OEM Solutions with Data Logging & Motion: Provides a versatile platform for equipment manufacturers needing integrated data capture and precise motion capabilities.
• Energy and Utilities: Suitable for monitoring and control systems in power generation, water treatment, and similar infrastructure.

Why Choose This Model?

• Superior Memory for Complex Projects: The generous 2MB user memory allows engineers to implement sophisticated control strategies without performance compromises.
• Unwavering Environmental Durability: Conformal coating protects your investment and ensures continuous operation even in the most challenging industrial settings.
• Seamless and Secure Network Integration: Dual Ethernet/IP ports with DLR provide redundant and high-speed communication for critical control applications.
• Enhanced Maintainability and Data Management: SD card support simplifies firmware upgrades and offers convenient data backup capabilities, minimizing downtime.
• Compact Design for Space-Constrained Applications: Its optimized footprint allows for efficient panel design and installation in various industrial enclosures.
• Comprehensive Certifications: Meets global industry standards, facilitating deployment in diverse international markets and ensuring compliance.

Order Now

Elevate your industrial automation with the Allen-Bradley 1769-L33ERK CompactLogix Controller. This top-tier controller is readily available and poised for worldwide shipment, bringing robust performance and reliability directly to your operations. Enhance your system’s capabilities and ensure long-term stability with a solution engineered for excellence. For a complete overview of our CompactLogix controller family, including all available models and their comprehensive specifications, please return to our dedicated CompactLogix Controllers main category. To explore the full spectrum of high-quality industrial automation products from Allen-Bradley, encompassing a wide array of controllers, precision drives, powerful motors, intuitive HMIs, and essential accessories, we invite you to visit our main Allen-Bradley Industrial Automation Products master category. Invest in proven technology and optimize your industrial processes today.
