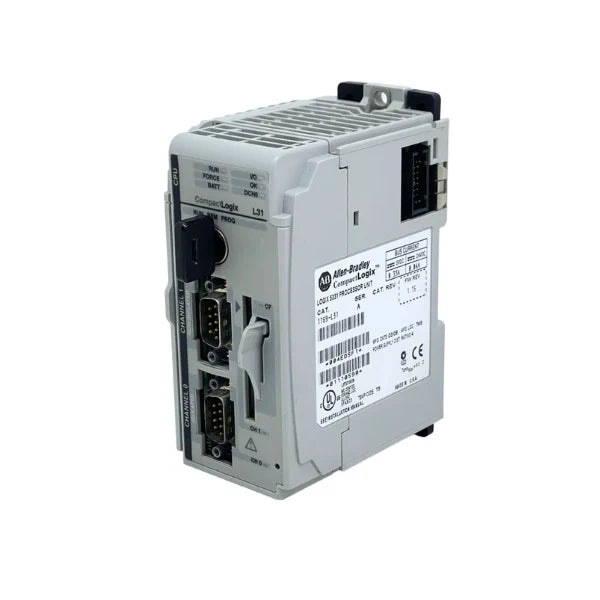

Allen-Bradley 1769-L31

Product Overview

Unlock robust and reliable control for your mid-sized industrial automation applications with the Allen-Bradley 1769-L31 CompactLogix Controller. Engineered for exceptional performance and seamless integration, this controller provides a compact yet powerful solution for intricate control tasks. Boasting 512 KB of user memory, it efficiently handles complex logic and substantial data, ensuring smooth operation in demanding environments. The inclusion of dual RS-232 communication ports significantly enhances connectivity, allowing for flexible communication with a variety of external devices and streamlined integration into new or existing distributed control systems. This controller is designed to deliver the reliability and precision that Allen-Bradley is renowned for, making it an indispensable component in your automation infrastructure.

Key Features

• 512 KB User Memory: Generous memory capacity supporting sophisticated control logic and extensive data handling for a wide range of mid-sized industrial applications.
• Dual RS-232 Communication Ports: Equipped with two versatile serial ports for enhanced connectivity: one isolated port for DF1 or ASCII communication and one non-isolated port for DF1 communication, ensuring broad compatibility.
• Integrated Communication Capabilities: Facilitates efficient and reliable connections to essential external devices, including Human Machine Interfaces (HMIs), barcode scanners, and various serial networks, simplifying system architecture.
• Compact and Space-Saving Design: Optimally sized for installations where panel space is at a premium, offering flexible mounting options including DIN rail or direct panel mounting.
• Expandable I/O Support: Supports up to 16 Compact I/O modules, providing exceptional versatility for customizing your control system to meet specific application requirements.
• Robust Operating Temperature Range: Designed to perform reliably in industrial environments, with an operating temperature range of 0°C to 60°C (32°F to 140°F).
• Industry-Standard Certifications: UL, CE, and CSA certified, guaranteeing adherence to stringent safety and quality standards, ensuring peace of mind.

Technical Specifications

The Allen-Bradley 1769-L31 CompactLogix Controller is built with precision and durability in mind. Refer to the detailed specifications below for comprehensive technical information:

• Model Number: 1769-L31
• User Memory: 512 KB
• Communication Ports: 2 x RS-232 Ports (Port 1: Isolated DF1 or ASCII; Port 2: Non-isolated DF1)
• Power Supply Distance Rating: 8 modules
• Maximum I/O Modules: 16 modules
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Dimensions (HxWxD): 118 x 87 x 56 mm
• Mounting Options: DIN Rail / Panel Mount
• Certifications: UL, CE, CSA

Applications

The versatility and robust features of the 1769-L31 CompactLogix Controller make it an ideal choice for a diverse array of industrial applications:

• Machine Control: Perfectly suited for the automation of small to medium-sized machinery requiring precise control over multiple integrated devices and processes.
• Data Integration: Seamlessly facilitates data exchange and connection with various serial devices, enabling robust communication and data acquisition within complex systems.
• Distributed Control Systems (DCS): Enhances and streamlines automation processes within distributed architectures, offering efficient communication and centralized control capabilities.
• Process Automation: Provides reliable control for batch processing, continuous processes, and other automated operations requiring consistent and stable performance.
• Building Management Systems: Can be integrated into intelligent building automation for controlling HVAC, lighting, and security systems.

Why Choose the 1769-L31 CompactLogix Controller?

The Allen-Bradley 1769-L31 stands out as a superior choice for industrial automation due to its unparalleled combination of features and benefits:

• Exceptional Flexibility: Its ability to support up to 16 I/O modules and offer dual communication options ensures it can adapt to evolving application demands.
• Optimized Connectivity: With dual RS-232 ports, the controller provides critical communication pathways for integrating diverse serial devices, minimizing compatibility issues.
• Proven Performance: Built on Allen-Bradley's legacy of industrial excellence, this controller delivers consistent and reliable operation, reducing downtime and enhancing productivity.
• Space-Efficient Design: The compact form factor is a significant advantage for installations with limited enclosure space, allowing for more efficient panel layouts.
• Cost-Effective Solution: Offers advanced control capabilities and robust features without the overhead typically associated with larger, more complex systems.
• Seamless Integration: Designed for easy integration into existing Allen-Bradley ecosystems, simplifying network setup and configuration.

Order Now

Elevate your industrial automation capabilities with the Allen-Bradley 1769-L31 CompactLogix Controller. Experience the power of reliable control, flexible connectivity, and efficient performance. Order your 1769-L31 today and take the next step towards optimized automation!
