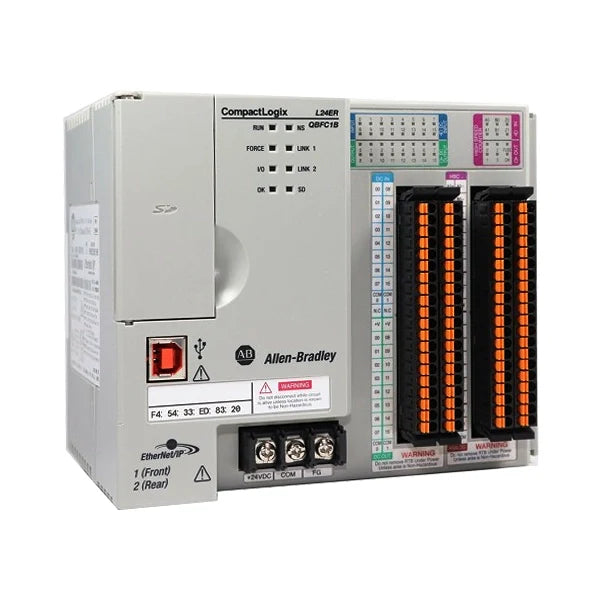

Allen-Bradley 1769-L24ER-QBFC1B

Overview

Unleash powerful and efficient automation with the Allen-Bradley 1769-L24ER-QBFC1B CompactLogix 5370 L2 Controller. This all-in-one solution is engineered to optimize performance for mid-sized machines and modular systems, providing a robust platform for both discrete and process control applications. With 750KB of user memory and integrated digital and analog I/O, this controller minimizes complexity while maximizing functionality. Its dual Ethernet ports ensure seamless communication and network flexibility, making it an ideal choice for modern industrial environments seeking an advanced, compact, and high-performance control system.

The 1769-L24ER-QBFC1B stands out by delivering real-time control capabilities, enhanced EtherNet/IP communication for distributed architectures, and precision high-speed analog signal processing—all without the need for additional, bulky I/O modules. This not only streamlines your system architecture but also significantly reduces panel space and overall installation costs.

Key Features

• Integrated High-Capacity Memory: Equipped with 750KB of user memory, enabling the execution of complex logic, motion control, and sophisticated automation routines with ease.
• Versatile Built-In Digital I/O: Features 16 digital inputs (24V DC sink/source) and 16 digital outputs (24V DC sourcing) for comprehensive control over discrete devices and actuators.
• Precision Analog Capabilities: Includes 4 configurable analog inputs (voltage/current) and 2 configurable analog outputs (voltage/current), perfect for process control applications involving sensors and actuators.
• Advanced Dual Ethernet Ports: Provides two RJ45 (10/100 Mbps) Ethernet ports supporting Device-Level Ring (DLR) and linear topologies for resilient and flexible network connectivity.
• Expandable Architecture: Supports local expansion with up to 4 additional 1769 I/O modules, allowing for future growth and increased system complexity as your needs evolve.
• Seamless Data Management: An integrated SD card slot facilitates quick firmware updates and provides convenient backup/restore functionalities for critical system configurations.
• Compact & Robust Design: Optimized for DIN rail mounting and designed for harsh industrial environments with an operating temperature range of 0°C to +60°C.

Technical Specifications

• Catalog Number: 1769-L24ER-QBFC1B
• Controller Series: CompactLogix 5370 L2
• Memory: 750KB
• Digital Inputs: 16 (24V DC sink/source)
• Digital Outputs: 16 (24V DC sourcing)
• Analog Inputs: 4 (voltage/current configurable)
• Analog Outputs: 2 (voltage/current configurable)
• Ethernet Ports: 2 (RJ45, 10/100 Mbps)
• Expansion Support: Up to 4 local 1769 I/O modules
• Mounting: DIN rail
• Operating Temperature: 0°C to +60°C
• Weight: Approximately 1.1 kg

Applications

• OEM and Machine Builders: Provides an all-in-one control solution with integrated analog and digital I/O, simplifying design and assembly for various specialized machinery.
• Process Control Systems: Ideal for applications requiring integrated analog support for precise control of parameters like flow, temperature, pressure, and level in diverse industrial processes.
• Distributed Control Architectures: Its built-in Ethernet capabilities and modular I/O options make it highly suitable for implementing distributed control systems, enhancing flexibility and scalability.
• Small to Mid-Sized Automation Projects: Perfectly suited for projects where space is at a premium and a robust, integrated control solution is required without the need for a large, complex PLC system.
• Material Handling Systems: Effectively manages and automates conveyors, robotics, and other material handling equipment with its blend of discrete and continuous control features.

Why Choose This Model?

• Space & Cost Efficiency: The integrated I/O functionality significantly reduces the need for external modules, saving valuable panel space and lowering overall system costs.
• Optimized for Mixed Signals: Expertly handles both digital and analog signals, making it an excellent choice for applications requiring a blend of discrete and continuous control.
• Streamlined Development with Studio 5000: Fully compatible with Rockwell Automation's Studio 5000 environment, enabling rapid development, configuration, and commissioning.
• Robust Connectivity: Dual Ethernet ports with DLR support ensure reliable communication and network redundancy, minimizing downtime in critical applications.
• Future-Proof Expandability: The ability to add up to four local 1769 I/O modules allows your system to grow and adapt to evolving operational requirements without a complete overhaul.
• Global Availability & Support: As an Allen-Bradley product, you benefit from worldwide availability, extensive documentation, and unparalleled technical support.

Order Now

Experience the next level of industrial automation with the Allen-Bradley 1769-L24ER-QBFC1B CompactLogix controller. This high-performance, expandable solution with integrated I/O is in stock and ready for global delivery, empowering your operations with flexible and reliable control. Don't compromise on efficiency or performance—choose the 1769-L24ER-QBFC1B for your automation needs.

Explore our complete range of CompactLogix Controllers to discover more models and specifications in this esteemed family.

Visit our master category for Allen-Bradley Industrial Automation Products to view our comprehensive selection of controllers, drives, motors, HMIs, and essential accessories.
