Allen-Bradley 1769-L24ER-QB1B

Overview

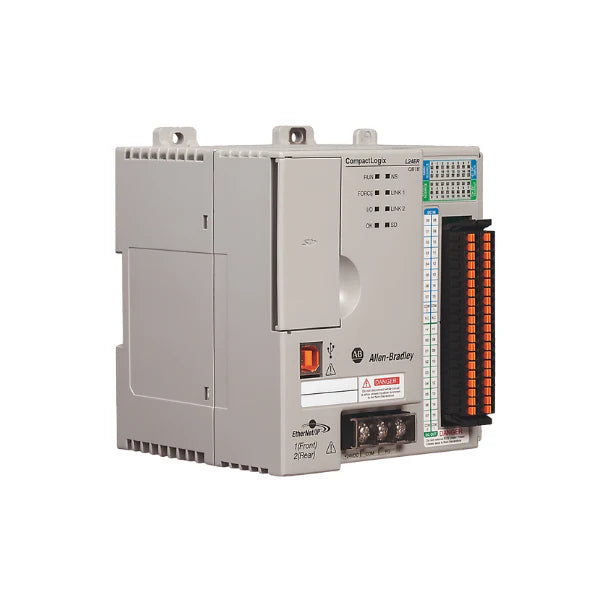

Unlock superior control and efficiency with the Allen-Bradley 1769-L24ER-QB1B CompactLogix 5370 L2 Controller. This powerful programmable automation controller (PAC) is engineered to streamline your mid-size machine control and distributed system applications. By integrating built-in I/O, dual Ethernet communication, and robust processing capabilities into a remarkably compact design, the 1769-L24ER-QB1B significantly reduces your system footprint and simplifies integration.

Designed with OEMs and machine builders in mind, this controller efficiently manages complex automation tasks. It features 16 embedded digital inputs and 16 digital outputs (sourcing), along with the flexibility to support up to four additional 1769 I/O expansion modules. This expandability ensures your system can adapt and grow with your operational demands, making it a versatile foundation for a wide range of industrial applications.

Key Features

• Integrated I/O: Built-in 16 digital 24V DC sink/source inputs and 16 digital 24V DC sourcing outputs simplify wiring and reduce hardware complexity.
• Dual Ethernet Ports: Support for Device-Level Ring (DLR) and linear topologies ensures robust and flexible network communication, enhancing system reliability.
• Integrated Motion Control: Capable of controlling up to 4 axes over EtherNet/IP, providing precise and synchronized motion for dynamic applications.
• Compact & Space-Saving Design: Its small form factor makes it an ideal fit for control cabinets with limited space, perfect for small to mid-sized machines.
• SD Card Slot: Facilitates convenient nonvolatile memory backup and quick restoration of programs and configurations, minimizing downtime.
• Scalable Expansion: Supports up to 4 local 1769 I/O modules, allowing for future system expansion and customization.
• 1MB User Memory: Ample memory provides sufficient capacity for complex control logic and data storage.

Technical Specifications

• Catalog Number: 1769-L24ER-QB1B
• Controller Series: CompactLogix 5370 L2
• Digital Inputs: 16 (24V DC sink/source)
• Digital Outputs: 16 (24V DC sourcing)
• Communication Ports: 2x Ethernet (RJ45)
• Expansion Capability: Up to 4 local 1769 I/O modules
• Memory: 1MB user memory
• Mounting: DIN rail
• Operating Temperature: 0°C to +60°C
• Weight: Approximately 900 g

Applications

• OEM Machine Control: Provides compact and efficient automation solutions for critical processes in packaging, assembly lines, and other discrete manufacturing systems.
• Industrial Automation: Delivers real-time control and data processing for mid-range industrial systems, enhancing operational intelligence.
• Remote I/O & Motion Control: Seamlessly integrates with EtherNet/IP networks and Kinetix drives for advanced distributed control and precise motion applications.
• Process Control: Suitable for batch and continuous process applications requiring a flexible and reliable control platform.
• Material Handling: Optimizes conveyor systems, robotic cells, and sorting equipment with integrated control and high-speed communication.

Why Choose This Model?

• All-in-One Solution: Consolidates control, I/O, and networking functionalities into a single, compact unit, reducing hardware requirements and installation time.
• Enhanced Productivity: High-speed processing and EtherNet/IP connectivity facilitate faster data exchange and optimized machine performance.
• Scalable & Flexible: Easily adapts to evolving application needs with local I/O expansion and integrated motion capabilities.
• Reliable Performance: Built with robust industrial-grade components to ensure consistent and dependable operation in demanding environments.
• Global Support: Backed by Rockwell Automation's extensive global network of support and resources, ensuring peace of mind and access to expert assistance.
• Cost-Effective: Its integrated design and robust features offer a compelling combination of performance and value, minimizing total cost of ownership.

Order Now

Elevate your automation capabilities with the Allen-Bradley 1769-L24ER-QB1B CompactLogix 5370 L2 Controller. This essential component is available for immediate purchase and global delivery. Contact us today to learn more about compatible accessories, essential SD cards, and a full range of I/O expansion modules that can further enhance your system. For a comprehensive overview of all models and specifications within this family, please return to our CompactLogix Controllers main category. Explore the complete spectrum of industrial automation products, including controllers, drives, motors, HMIs, and accessories, by visiting our dedicated Allen-Bradley Industrial Automation Products master category.
